Panasonic PT-EX620EJ Projector &
Panasonic ET-ELT30 Projector Lens

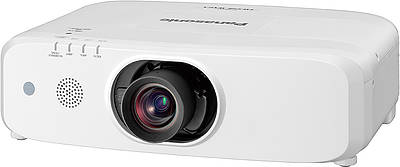

Panasonic PT-EX620EJ

  • 6200 ANSI Lumens
  • XGA 1024*768 Native Resolution
  • 10000:1 Contrast Ratio
  • 4000 hour lamp life (typical)
  • Lens Shift function
  • 8.4kg (18.5lb.)
  • 3 year collect/return with loan if available warranty
  • Panasonic PT-EX620EJ
Panasonic PT-EX620EJ & Panasonic ET-ELT30

Panasonic ET-ELT30
Suitable For

Panasonic ET-ELT30 Lens Only
£1342 (£1610.40 inc. VAT)
Availability: In stock

Select a Screen

Min. Throw Max Throw Foot Lamberts
4.86m 8.80m 191.95
Throw Chard for Panasonic PT-EX620EJ fitted with Panasonic ET-ELT30

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.38 0.62 1.22 2.20 0.19 sq.m. 3071.99
1.00 0.75 1.25 2.43 4.40 0.75 sq.m. 768.00
1.50 1.12 1.88 3.65 6.60 1.69 sq.m. 341.33
2.00 1.50 2.50 4.86 8.80 3.00 sq.m. 192.00
2.50 1.88 3.12 6.08 11.00 4.69 sq.m. 122.88
3.00 2.25 3.75 7.29 13.20 6.75 sq.m. 85.33
4.00 3.00 5.00 9.72 17.60 12.00 sq.m. 48.00
5.00 3.75 6.25 12.15 22.00 18.75 sq.m. 30.72

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.23 0.41
2 0.45 0.82
3 0.68 1.23
4 0.91 1.65
5 1.14 2.06
6 1.36 2.47
7 1.59 2.88
8 1.82 3.29

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
