Panasonic PT-EW730ZE Projector &
Panasonic ET-ELW20 Projector Lens

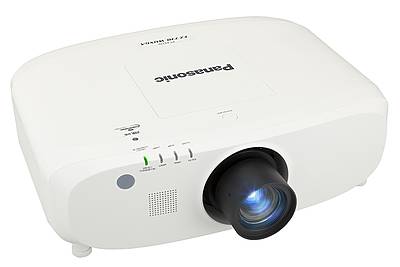

Panasonic PT-EW730ZE
- 7000 ANSI Lumens
- WXGA 1280*800 Native Resolution
- 5000:1 Contrast Ratio
- 3000 hour lamp life (typical)
- Lens Shift function
- 10.6kg (23.4lb.)
- 3 year collect/return with loan if available warranty
- Panasonic PT-EW730ZE
Panasonic PT-EW730ZE & Panasonic ET-ELW20
Panasonic ET-ELW20
Suitable For
Panasonic ET-ELW20 Lens Only
£1286 (£1543.20 inc. VAT)
Availability: 3-5 days
Availability: 3-5 days
Select a Screen |
Min. Throw | Max Throw | Foot Lamberts |
|
|
2.60m | 3.40m | 260.13 |
Screen Size Table (Figures in metres)
| Width | Height | Diagonal | Min. Throw | Max Throw | Area | Foot Lamberts* |
| 0.50 | 0.28 | 0.57 | 0.65 | 0.85 | 0.14 sq.m. | 4624.51 |
| 1.00 | 0.56 | 1.15 | 1.30 | 1.70 | 0.56 sq.m. | 1156.13 |
| 1.50 | 0.84 | 1.72 | 1.95 | 2.55 | 1.27 sq.m. | 513.83 |
| 2.00 | 1.12 | 2.29 | 2.60 | 3.40 | 2.25 sq.m. | 289.03 |
| 2.50 | 1.41 | 2.87 | 3.25 | 4.25 | 3.52 sq.m. | 184.98 |
| 3.00 | 1.69 | 3.44 | 3.90 | 5.10 | 5.06 sq.m. | 128.46 |
| 4.00 | 2.25 | 4.59 | 5.20 | 6.80 | 9.00 sq.m. | 72.26 |
| 5.00 | 2.81 | 5.74 | 6.50 | 8.50 | 14.06 sq.m. | 46.25 |
*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.
Throw Distance Table (Figures in metres)
| Distance | Minimum Width | Maximum Width |
| 1 | 0.59 | 0.77 |
| 2 | 1.18 | 1.54 |
| 3 | 1.76 | 2.31 |
| 4 | 2.35 | 3.08 |
| 5 | 2.94 | 3.85 |
| 6 | 3.53 | 4.62 |
| 7 | 4.12 | 5.38 |
| 8 | 4.71 | 6.15 |
Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
