Digital Projection E-Vision Laser 8500 Projector &
Digital Projection 112-501 Projector Lens

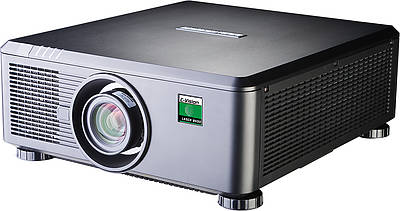

Digital Projection E-Vision Laser 8500

  • 8500 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 10000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • 28kg (61.7lb.)
  • 3 years return to base warranty
Digital Projection E-Vision Laser 8500 & Digital Projection 112-501
£9243 (£11091.60 inc. VAT)
Availability: In Stock
Digital Projection 112-501 Lens Only
£636 (£763.20 inc. VAT)
Availability: In stock
Select a Screen Min. Throw Max Throw Foot Lamberts
1.73m 2.27m 1263.48

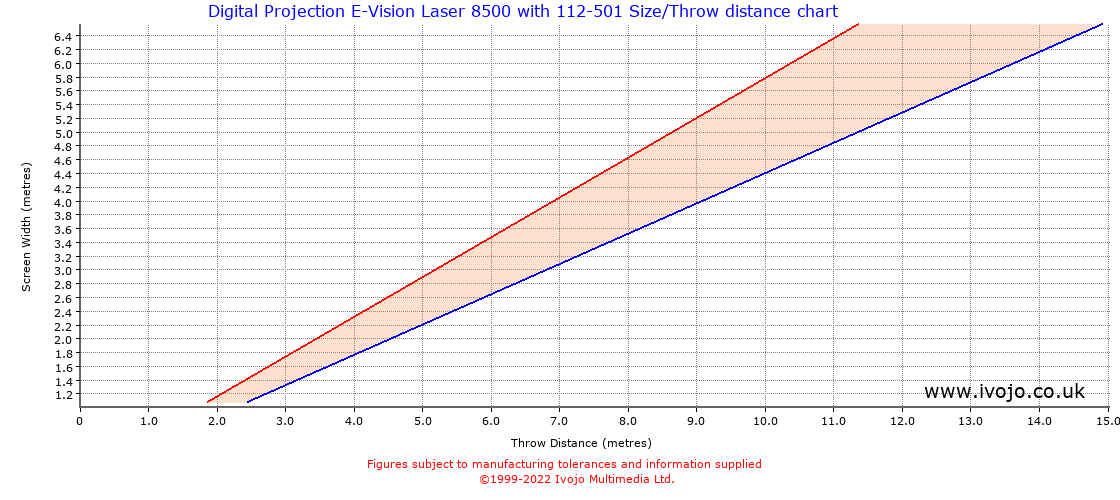

Throw Chart for Digital Projection E-Vision Laser 8500 fitted with Digital Projection 112-501 lens

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.86 1.14 0.14 sq.m. 5615.47
1.00 0.56 1.15 1.73 2.27 0.56 sq.m. 1403.87
1.50 0.84 1.72 2.59 3.41 1.27 sq.m. 623.94
2.00 1.12 2.29 3.46 4.54 2.25 sq.m. 350.97
2.50 1.41 2.87 4.33 5.67 3.52 sq.m. 224.62
3.00 1.69 3.44 5.19 6.81 5.06 sq.m. 155.99
4.00 2.25 4.59 6.92 9.08 9.00 sq.m. 87.74
5.00 2.81 5.74 8.65 11.35 14.06 sq.m. 56.15

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.44 0.58
2 0.88 1.16
3 1.32 1.73
4 1.76 2.31
5 2.20 2.89
6 2.64 3.47
7 3.08 4.05
8 3.52 4.62

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
