Sharp A175U B Projector &
Sharp XP-56ZL Projector Lens

Sharp A175U B projector lens image

Sharp A175U B

  • 16000 ANSI Lumens
  • WUXGA 1920×1200 Native Resolution
  • 3000000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 28.7kg (63.3lb.)
  • 3 year loan support warranty
  • Sharp A175U B
Sharp A175U B & Sharp XP-56ZL
£18023 (£21627.60 inc. VAT)
Availability: Please Call
Sharp XP-56ZL projector lens image

Sharp XP-56ZL
Suitable For

Sharp XP-56ZL Lens Only
£4176 (£5011.20 inc. VAT)
Availability: Please Call

Select a Screen

 Min. Throw Max Throw Foot Lamberts
7.84m 15.00m 594.58

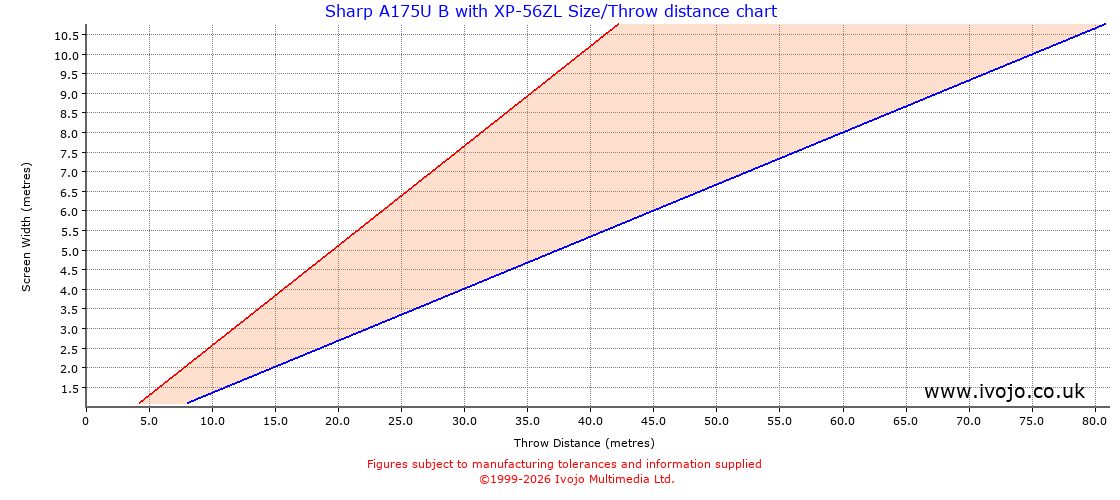

Throw Chard for Sharp A175U B fitted with Sharp XP-56ZL

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 1.96 3.75 0.14 sq.m. 10570.30
1.00 0.56 1.15 3.92 7.50 0.56 sq.m. 2642.58
1.50 0.84 1.72 5.88 11.25 1.27 sq.m. 1174.48
2.00 1.12 2.29 7.84 15.00 2.25 sq.m. 660.64
2.50 1.41 2.87 9.80 18.75 3.52 sq.m. 422.81
3.00 1.69 3.44 11.76 22.50 5.06 sq.m. 293.62
4.00 2.25 4.59 15.68 30.00 9.00 sq.m. 165.16
5.00 2.81 5.74 19.60 37.50 14.06 sq.m. 105.70

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.13 0.26
2 0.27 0.51
3 0.40 0.77
4 0.53 1.02
5 0.67 1.28
6 0.80 1.53
7 0.93 1.79
8 1.07 2.04

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
