Sharp A175U W Projector &
NEC NP55ZL Projector Lens

Sharp A175U W projector lens image

Sharp A175U W

  • 16000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 3000000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 28.7kg (63.3lb.)
  • 3 year loan support warranty
  • Sharp A175U W
Sharp A175U W & NEC NP55ZL
£16881 (£20257.20 inc. VAT)
Availability: 7-10 Days
NEC NP55ZL projector lens image

NEC NP55ZL
Suitable For

NEC NP55ZL Lens Only
£3034 (£3640.80 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
3.96m 7.90m 594.58

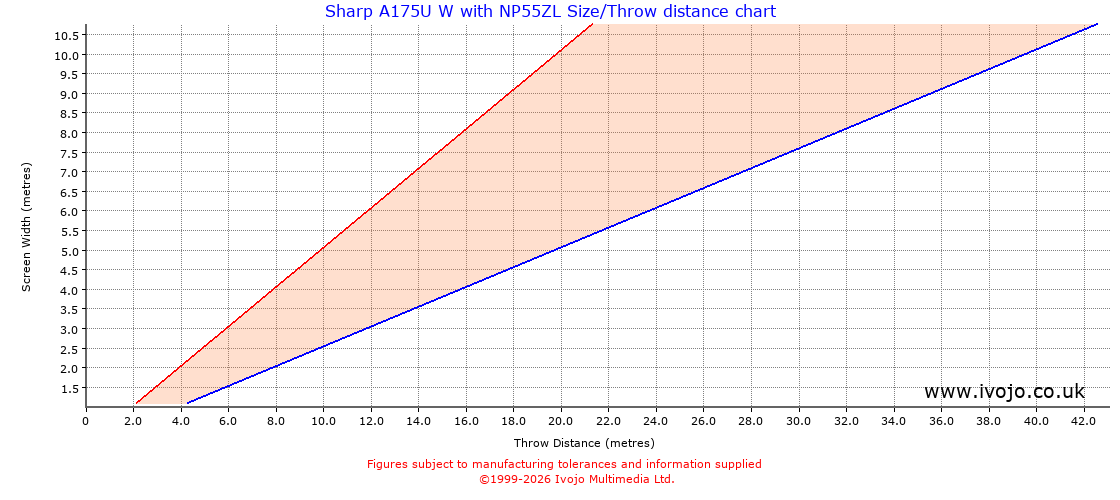

Throw Chard for Sharp A175U W fitted with NEC NP55ZL

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.99 1.98 0.14 sq.m. 10570.30
1.00 0.56 1.15 1.98 3.95 0.56 sq.m. 2642.58
1.50 0.84 1.72 2.97 5.93 1.27 sq.m. 1174.48
2.00 1.12 2.29 3.96 7.90 2.25 sq.m. 660.64
2.50 1.41 2.87 4.95 9.88 3.52 sq.m. 422.81
3.00 1.69 3.44 5.94 11.85 5.06 sq.m. 293.62
4.00 2.25 4.59 7.92 15.80 9.00 sq.m. 165.16
5.00 2.81 5.74 9.90 19.75 14.06 sq.m. 105.70

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.25 0.51
2 0.51 1.01
3 0.76 1.52
4 1.01 2.02
5 1.27 2.53
6 1.52 3.03
7 1.77 3.54
8 2.03 4.04

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
