Sharp A175U B Projector &
NEC NP54ZL Projector Lens
Sharp A175U B
- 16000 ANSI Lumens
- WUXGA 1920*1200 Native Resolution
- 3000000:1 Contrast Ratio
- 20000 hour lamp life (typical)
- Lens Shift function
- 28.7kg (63.3lb.)
- 3 year loan support warranty
- Sharp A175U B
Sharp A175U B & NEC NP54ZL
£15528 (£18633.60 inc. VAT)
Availability: 7-10 Days
Availability: 7-10 Days
NEC NP54ZL
Suitable For
NEC NP54ZL Lens Only
£1681 (£2017.20 inc. VAT)
Availability: 3-5 days
Availability: 3-5 days
Select a Screen |
Min. Throw | Max Throw | Foot Lamberts |
|
|
2.48m | 4.02m | 594.58 |
Screen Size Table (Figures in metres)
| Width | Height | Diagonal | Min. Throw | Max Throw | Area | Foot Lamberts* |
| 0.50 | 0.28 | 0.57 | 0.62 | 1.00 | 0.14 sq.m. | 10570.30 |
| 1.00 | 0.56 | 1.15 | 1.24 | 2.01 | 0.56 sq.m. | 2642.58 |
| 1.50 | 0.84 | 1.72 | 1.86 | 3.01 | 1.27 sq.m. | 1174.48 |
| 2.00 | 1.12 | 2.29 | 2.48 | 4.02 | 2.25 sq.m. | 660.64 |
| 2.50 | 1.41 | 2.87 | 3.10 | 5.02 | 3.52 sq.m. | 422.81 |
| 3.00 | 1.69 | 3.44 | 3.72 | 6.03 | 5.06 sq.m. | 293.62 |
| 4.00 | 2.25 | 4.59 | 4.96 | 8.04 | 9.00 sq.m. | 165.16 |
| 5.00 | 2.81 | 5.74 | 6.20 | 10.05 | 14.06 sq.m. | 105.70 |
*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

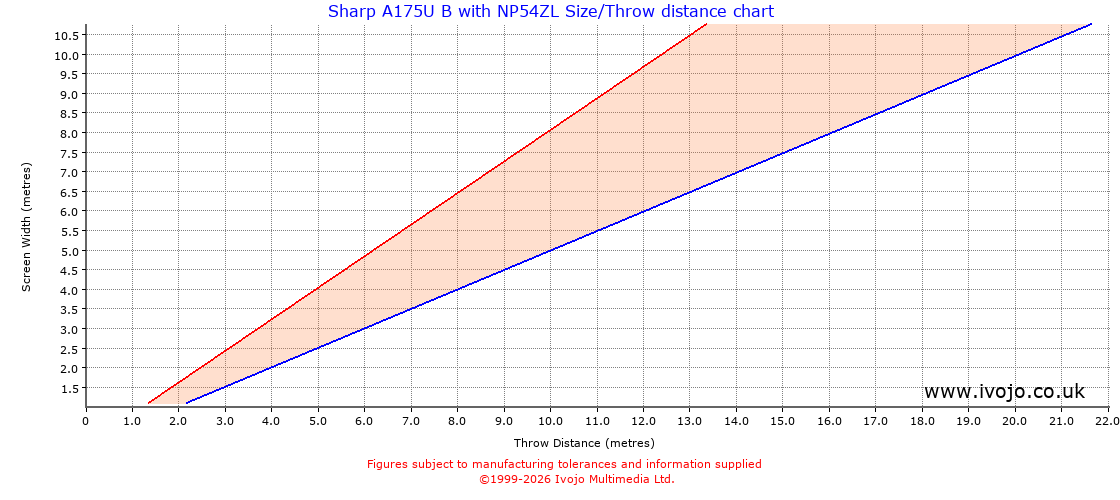

Throw Distance Table (Figures in metres)
| Distance | Minimum Width | Maximum Width |
| 1 | 0.50 | 0.81 |
| 2 | 1.00 | 1.61 |
| 3 | 1.49 | 2.42 |
| 4 | 1.99 | 3.23 |
| 5 | 2.49 | 4.03 |
| 6 | 2.99 | 4.84 |
| 7 | 3.48 | 5.65 |
| 8 | 3.98 | 6.45 |
Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
