Sharp A175U W Projector &
NEC NP53ZL Projector Lens
Sharp A175U W
- 16000 ANSI Lumens
- WUXGA 1920*1200 Native Resolution
- 3000000:1 Contrast Ratio
- 20000 hour lamp life (typical)
- Lens Shift function
- 28.7kg (63.3lb.)
- 3 year loan support warranty
- Sharp A175U W
Sharp A175U W & NEC NP53ZL
£17762 (£21314.40 inc. VAT)
Availability: 7-10 Days
Availability: 7-10 Days
NEC NP53ZL
Suitable For
NEC NP53ZL Lens Only
£3915 (£4698.00 inc. VAT)
Availability: 3-5 days
Availability: 3-5 days
Select a Screen |
Min. Throw | Max Throw | Foot Lamberts |
|
|
1.72m | 2.50m | 594.58 |
Screen Size Table (Figures in metres)
| Width | Height | Diagonal | Min. Throw | Max Throw | Area | Foot Lamberts* |
| 0.50 | 0.28 | 0.57 | 0.43 | 0.62 | 0.14 sq.m. | 10570.30 |
| 1.00 | 0.56 | 1.15 | 0.86 | 1.25 | 0.56 sq.m. | 2642.58 |
| 1.50 | 0.84 | 1.72 | 1.29 | 1.88 | 1.27 sq.m. | 1174.48 |
| 2.00 | 1.12 | 2.29 | 1.72 | 2.50 | 2.25 sq.m. | 660.64 |
| 2.50 | 1.41 | 2.87 | 2.15 | 3.12 | 3.52 sq.m. | 422.81 |
| 3.00 | 1.69 | 3.44 | 2.58 | 3.75 | 5.06 sq.m. | 293.62 |
| 4.00 | 2.25 | 4.59 | 3.44 | 5.00 | 9.00 sq.m. | 165.16 |
| 5.00 | 2.81 | 5.74 | 4.30 | 6.25 | 14.06 sq.m. | 105.70 |
*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

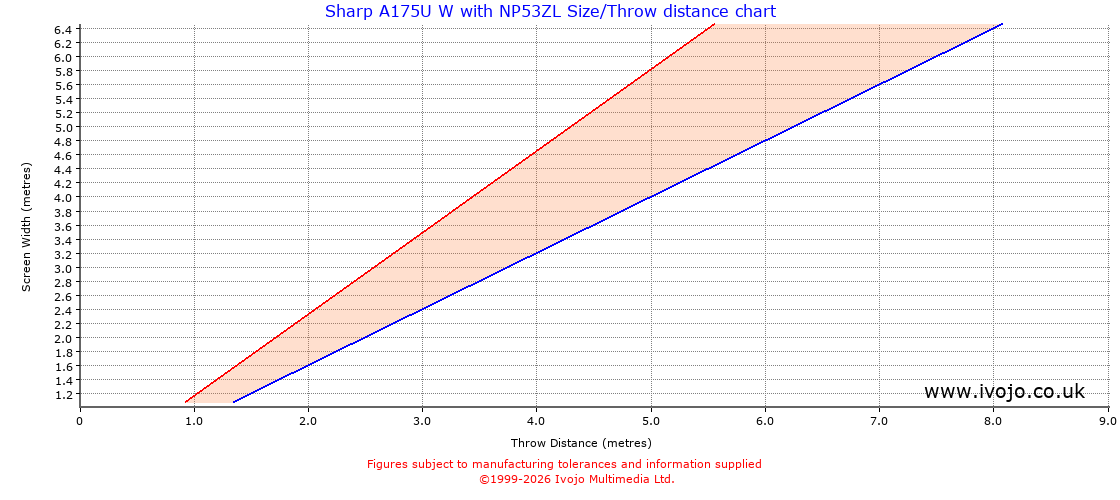

Throw Distance Table (Figures in metres)
| Distance | Minimum Width | Maximum Width |
| 1 | 0.80 | 1.16 |
| 2 | 1.60 | 2.33 |
| 3 | 2.40 | 3.49 |
| 4 | 3.20 | 4.65 |
| 5 | 4.00 | 5.81 |
| 6 | 4.80 | 6.98 |
| 7 | 5.60 | 8.14 |
| 8 | 6.40 | 9.30 |
Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
