NEC PA703UL/NP41ZL Projector &
NEC NP41ZL Projector Lens

NEC PA703UL/NP41ZL projector lens image

NEC PA703UL/NP41ZL

  • 7000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 2500000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 18.2kg (40.1lb.)
  • 3 year loan support warranty
  • NEC PA703UL/NP41ZL
NEC PA703UL/NP41ZL & NEC NP41ZL
NEC NP41ZL projector lens image

NEC NP41ZL
Suitable For

NEC NP41ZL Lens Only
£393 (£471.60 inc. VAT)
Availability: In stock


Select a Screen

 Min. Throw Max Throw Foot Lamberts
2.60m 6.04m 260.13

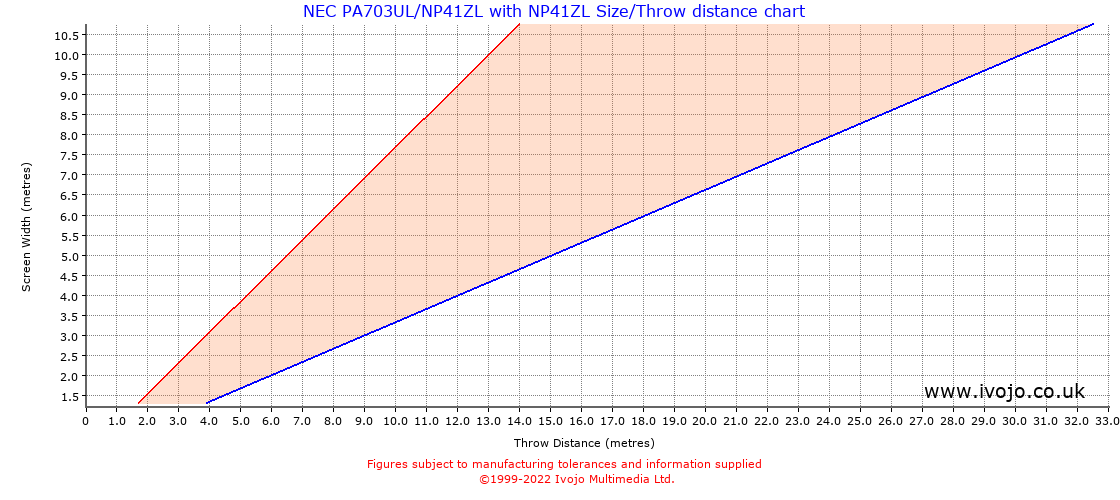

Throw Chard for NEC PA703UL/NP41ZL fitted with NEC NP41ZL

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.65 1.51 0.14 sq.m. 4624.51
1.00 0.56 1.15 1.30 3.02 0.56 sq.m. 1156.13
1.50 0.84 1.72 1.95 4.53 1.27 sq.m. 513.83
2.00 1.12 2.29 2.60 6.04 2.25 sq.m. 289.03
2.50 1.41 2.87 3.25 7.55 3.52 sq.m. 184.98
3.00 1.69 3.44 3.90 9.06 5.06 sq.m. 128.46
4.00 2.25 4.59 5.20 12.08 9.00 sq.m. 72.26
5.00 2.81 5.74 6.50 15.10 14.06 sq.m. 46.25

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.33 0.77
2 0.66 1.54
3 0.99 2.31
4 1.32 3.08
5 1.66 3.85
6 1.99 4.62
7 2.32 5.38
8 2.65 6.15

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
