Sharp V731U B Projector &
NEC NP40ZL Projector Lens

Sharp V731U B projector lens image

Sharp V731U B

  • 7300 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 3000000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 11.2kg (24.7lb.)
  • 3 year collect/repair/return warranty
  • Sharp V731U B
Sharp V731U B & NEC NP40ZL
£3894 (£4672.80 inc. VAT)
Availability: 7-10 Days
NEC NP40ZL projector lens image

NEC NP40ZL
Suitable For

NEC NP40ZL Lens Only
£972 (£1166.40 inc. VAT)
Availability: In stock

Select a Screen

 Min. Throw Max Throw Foot Lamberts
1.58m 2.22m 271.28

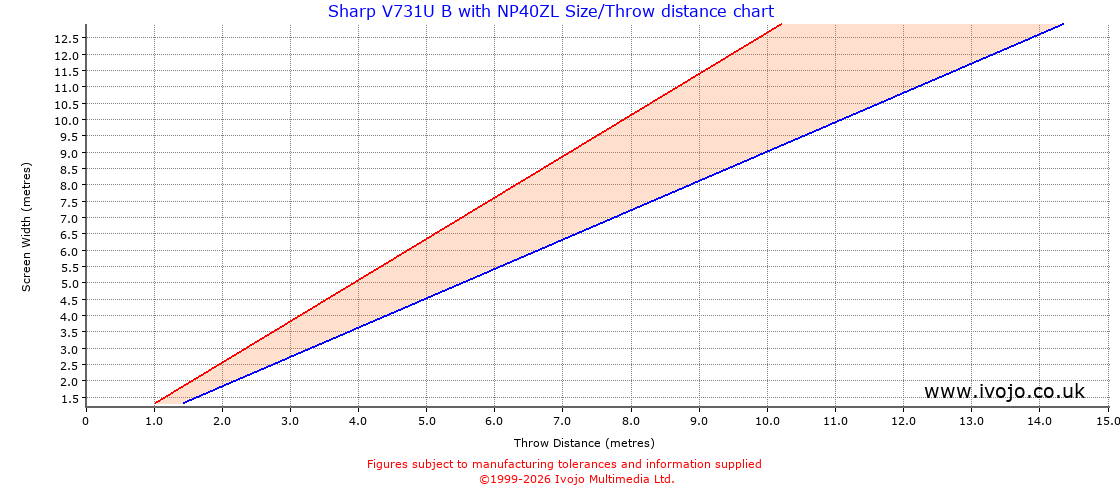

Throw Chard for Sharp V731U B fitted with NEC NP40ZL

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.40 0.56 0.14 sq.m. 4822.70
1.00 0.56 1.15 0.79 1.11 0.56 sq.m. 1205.68
1.50 0.84 1.72 1.19 1.67 1.27 sq.m. 535.86
2.00 1.12 2.29 1.58 2.22 2.25 sq.m. 301.42
2.50 1.41 2.87 1.98 2.78 3.52 sq.m. 192.91
3.00 1.69 3.44 2.37 3.33 5.06 sq.m. 133.96
4.00 2.25 4.59 3.16 4.44 9.00 sq.m. 75.35
5.00 2.81 5.74 3.95 5.55 14.06 sq.m. 48.23

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.90 1.27
2 1.80 2.53
3 2.70 3.80
4 3.60 5.06
5 4.50 6.33
6 5.41 7.59
7 6.31 8.86
8 7.21 10.13

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
