NEC PA903X Projector &
NEC NP13ZL Projector Lens
NEC PA903X
- 9000 ANSI Lumens
- XGA 1024*768 Native Resolution
- 10000:1 Contrast Ratio
- 3000 hour lamp life (typical)
- Lens Shift function
- 10.2kg (22.5lb.)
- 3 years pan-European loan support warranty
- NEC PA903X
NEC PA903X & NEC NP13ZL
NEC NP13ZL Lens Only
£222 (£266.40 inc. VAT)
Availability: In stock
Availability: In stock
Select a Screen |
Min. Throw | Max Throw | Foot Lamberts |
|
|
2.92m | 5.90m | 278.64 |
Screen Size Table (Figures in metres)
| Width | Height | Diagonal | Min. Throw | Max Throw | Area | Foot Lamberts* |
| 0.50 | 0.38 | 0.62 | 0.73 | 1.48 | 0.19 sq.m. | 4459.35 |
| 1.00 | 0.75 | 1.25 | 1.46 | 2.95 | 0.75 sq.m. | 1114.84 |
| 1.50 | 1.12 | 1.88 | 2.19 | 4.43 | 1.69 sq.m. | 495.48 |
| 2.00 | 1.50 | 2.50 | 2.92 | 5.90 | 3.00 sq.m. | 278.71 |
| 2.50 | 1.88 | 3.12 | 3.65 | 7.38 | 4.69 sq.m. | 178.37 |
| 3.00 | 2.25 | 3.75 | 4.38 | 8.85 | 6.75 sq.m. | 123.87 |
| 4.00 | 3.00 | 5.00 | 5.84 | 11.80 | 12.00 sq.m. | 69.68 |
| 5.00 | 3.75 | 6.25 | 7.30 | 14.75 | 18.75 sq.m. | 44.59 |
*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

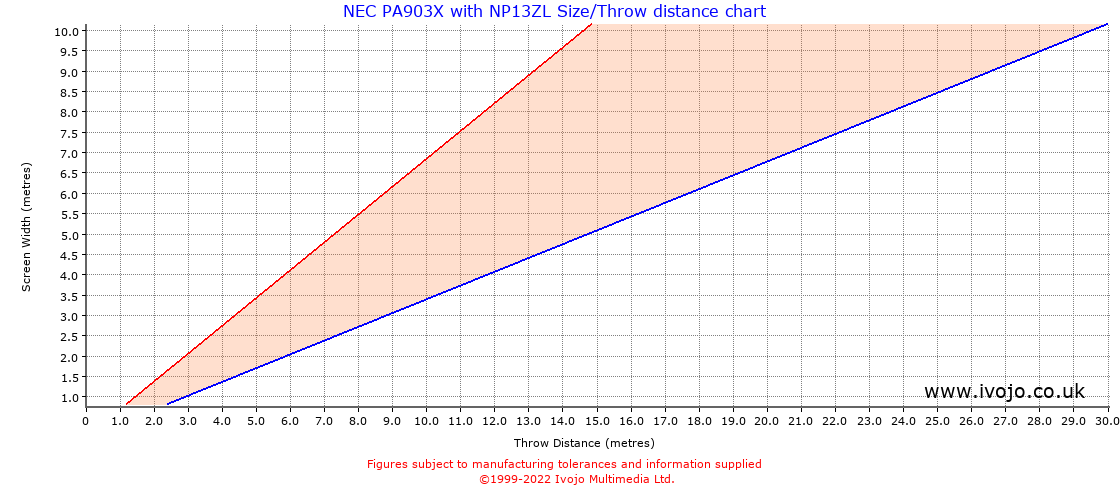

Throw Distance Table (Figures in metres)
| Distance | Minimum Width | Maximum Width |
| 1 | 0.34 | 0.68 |
| 2 | 0.68 | 1.37 |
| 3 | 1.02 | 2.05 |
| 4 | 1.36 | 2.74 |
| 5 | 1.69 | 3.42 |
| 6 | 2.03 | 4.11 |
| 7 | 2.37 | 4.79 |
| 8 | 2.71 | 5.48 |
Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
