Sharp V731U W Projector &
NEC NP12ZL Projector Lens

Sharp V731U W projector lens image

Sharp V731U W

  • 7300 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 3000000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 11.2kg (24.7lb.)
  • 3 year collect/repair/return warranty
  • Sharp V731U W
Sharp V731U W & NEC NP12ZL
£3737 (£4484.40 inc. VAT)
Availability: 4-7 Days
NEC NP12ZL projector lens image

NEC NP12ZL
Suitable For

NEC NP12ZL Lens Only
£815 (£978.00 inc. VAT)
Availability: In stock

Select a Screen

 Min. Throw Max Throw Foot Lamberts
2.32m 3.04m 271.28

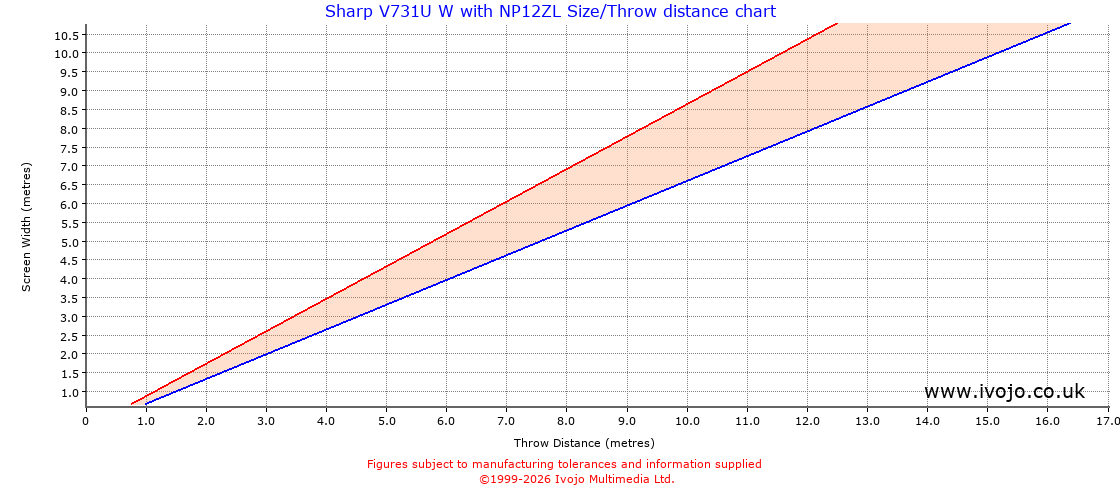

Throw Chard for Sharp V731U W fitted with NEC NP12ZL

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.58 0.76 0.14 sq.m. 4822.70
1.00 0.56 1.15 1.16 1.52 0.56 sq.m. 1205.68
1.50 0.84 1.72 1.74 2.28 1.27 sq.m. 535.86
2.00 1.12 2.29 2.32 3.04 2.25 sq.m. 301.42
2.50 1.41 2.87 2.90 3.80 3.52 sq.m. 192.91
3.00 1.69 3.44 3.48 4.56 5.06 sq.m. 133.96
4.00 2.25 4.59 4.64 6.08 9.00 sq.m. 75.35
5.00 2.81 5.74 5.80 7.60 14.06 sq.m. 48.23

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.66 0.86
2 1.32 1.72
3 1.97 2.59
4 2.63 3.45
5 3.29 4.31
6 3.95 5.17
7 4.61 6.03
8 5.26 6.90

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
