Epson EB-L30000U Projector &
Epson ELPLW07 Projector Lens

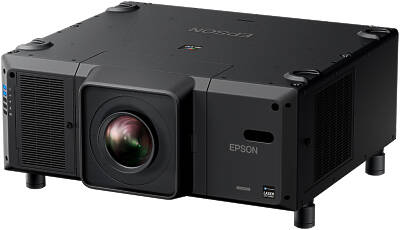

Epson EB-L30000U projector lens image

Epson EB-L30000U

  • 30000 ANSI Lumens
  • WUXGA 1920×1200 Native Resolution
  • 3500:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 63.8kg (140.7lb.)
  • 5 Years/20,000 Hours (whichever first) warranty
  • Epson EB-L30000U
Epson EB-L30000U & Epson ELPLW07
£49607 (£59528.40 inc. VAT)
Availability:
Epson ELPLW07 projector lens image

Epson ELPLW07
Suitable For

Epson ELPLW07 Lens Only
£6450 (£7740.00 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
2.58m 3.54m 1114.84

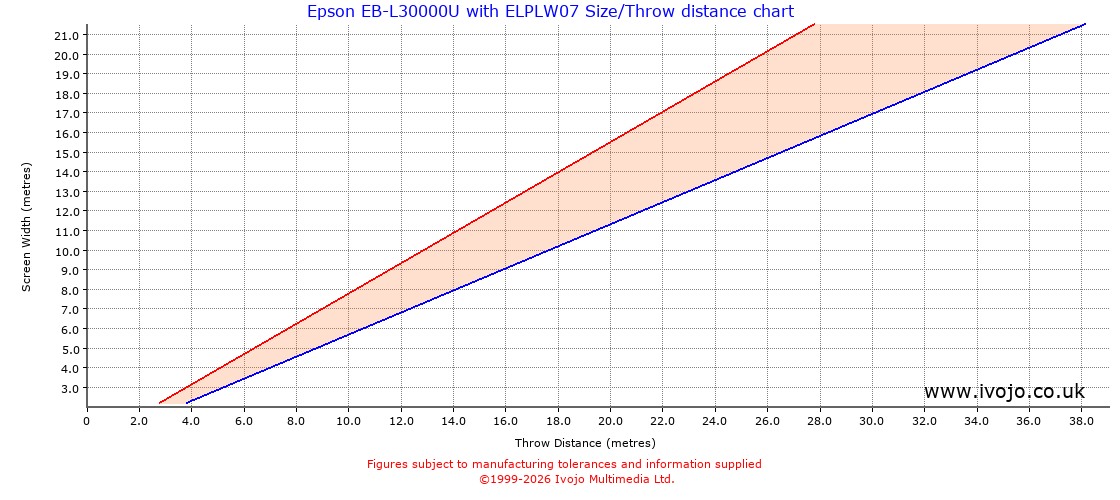

Throw Chard for Epson EB-L30000U fitted with Epson ELPLW07

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.65 0.89 0.14 sq.m. 19819.32
1.00 0.56 1.15 1.29 1.77 0.56 sq.m. 4954.83
1.50 0.84 1.72 1.94 2.66 1.27 sq.m. 2202.15
2.00 1.12 2.29 2.58 3.54 2.25 sq.m. 1238.71
2.50 1.41 2.87 3.23 4.42 3.52 sq.m. 792.77
3.00 1.69 3.44 3.87 5.31 5.06 sq.m. 550.54
4.00 2.25 4.59 5.16 7.08 9.00 sq.m. 309.68
5.00 2.81 5.74 6.45 8.85 14.06 sq.m. 198.19

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.56 0.78
2 1.13 1.55
3 1.69 2.33
4 2.26 3.10
5 2.82 3.88
6 3.39 4.65
7 3.95 5.43
8 4.52 6.20

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
