Epson EB-L30000U Projector &
Epson ELPLU05 Projector Lens

Epson EB-L30000U projector lens image

Epson EB-L30000U

  • 30000 ANSI Lumens
  • WUXGA 1920×1200 Native Resolution
  • 3500:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 63.8kg (140.7lb.)
  • 5 Years/20,000 Hours (whichever first) warranty
  • Epson EB-L30000U
Epson EB-L30000U & Epson ELPLU05
£53111 (£63733.20 inc. VAT)
Availability:
Epson ELPLU05 projector lens image

Epson ELPLU05
Suitable For

Epson ELPLU05 Lens Only
£9954 (£11944.80 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
1.82m 2.20m 1114.84

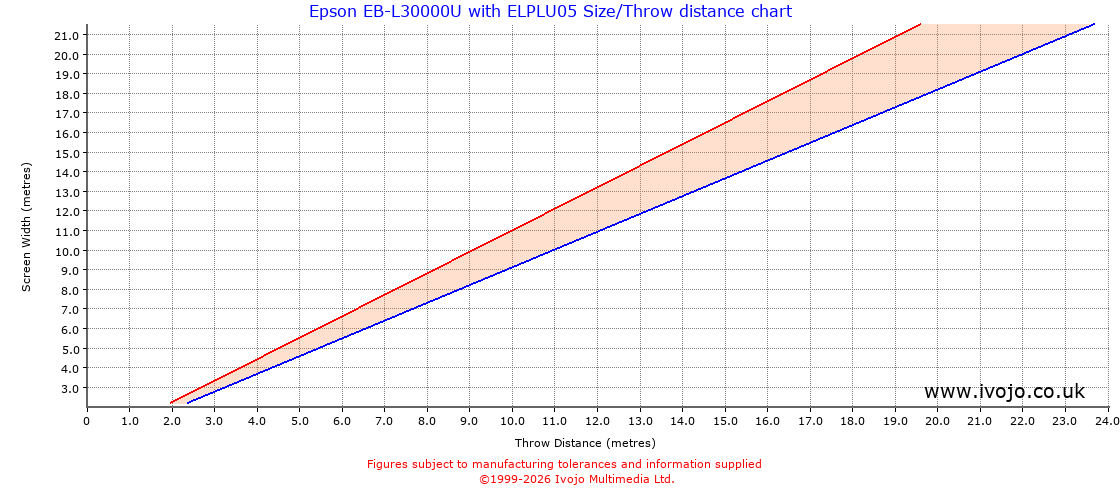

Throw Chard for Epson EB-L30000U fitted with Epson ELPLU05

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.46 0.55 0.14 sq.m. 19819.32
1.00 0.56 1.15 0.91 1.10 0.56 sq.m. 4954.83
1.50 0.84 1.72 1.36 1.65 1.27 sq.m. 2202.15
2.00 1.12 2.29 1.82 2.20 2.25 sq.m. 1238.71
2.50 1.41 2.87 2.27 2.75 3.52 sq.m. 792.77
3.00 1.69 3.44 2.73 3.30 5.06 sq.m. 550.54
4.00 2.25 4.59 3.64 4.40 9.00 sq.m. 309.68
5.00 2.81 5.74 4.55 5.50 14.06 sq.m. 198.19

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.91 1.10
2 1.82 2.20
3 2.73 3.30
4 3.64 4.40
5 4.55 5.49
6 5.45 6.59
7 6.36 7.69
8 7.27 8.79

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
