Epson EB-L30000U Projector &
Epson ELPLM13 Projector Lens

Epson EB-L30000U projector lens image

Epson EB-L30000U

  • 30000 ANSI Lumens
  • WUXGA 1920×1200 Native Resolution
  • 3500:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 63.8kg (140.7lb.)
  • 5 Years/20,000 Hours (whichever first) warranty
  • Epson EB-L30000U
Epson EB-L30000U & Epson ELPLM13
£47851 (£57421.20 inc. VAT)
Availability:
Epson ELPLM13 projector lens image

Epson ELPLM13
Suitable For

Epson ELPLM13 Lens Only
£4694 (£5632.80 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
4.58m 6.94m 1114.84

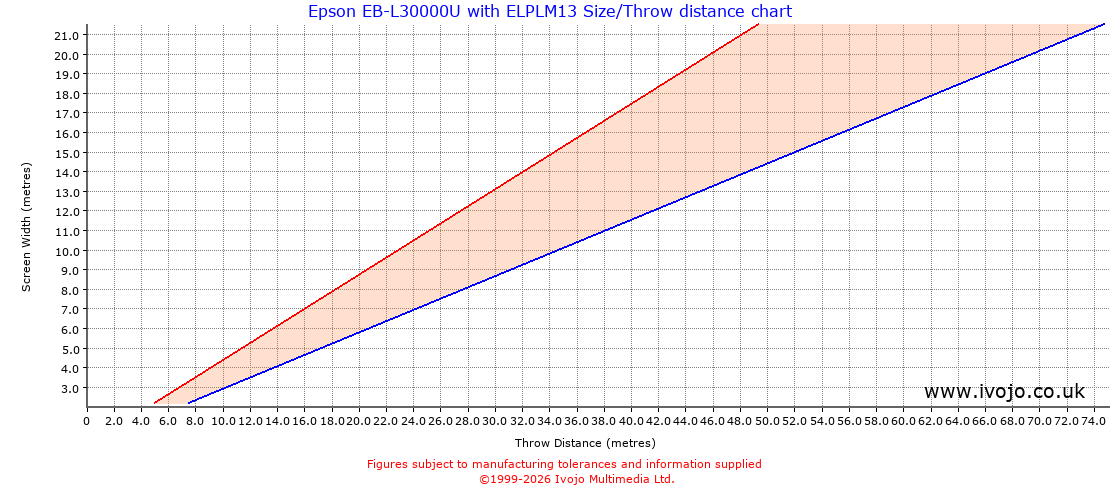

Throw Chard for Epson EB-L30000U fitted with Epson ELPLM13

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 1.15 1.74 0.14 sq.m. 19819.32
1.00 0.56 1.15 2.29 3.47 0.56 sq.m. 4954.83
1.50 0.84 1.72 3.44 5.21 1.27 sq.m. 2202.15
2.00 1.12 2.29 4.58 6.94 2.25 sq.m. 1238.71
2.50 1.41 2.87 5.72 8.68 3.52 sq.m. 792.77
3.00 1.69 3.44 6.87 10.41 5.06 sq.m. 550.54
4.00 2.25 4.59 9.16 13.88 9.00 sq.m. 309.68
5.00 2.81 5.74 11.45 17.35 14.06 sq.m. 198.19

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.29 0.44
2 0.58 0.87
3 0.86 1.31
4 1.15 1.75
5 1.44 2.18
6 1.73 2.62
7 2.02 3.06
8 2.31 3.49

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
