Epson EB-L30000U Projector &
Epson ELPLL10 Projector Lens

Epson EB-L30000U projector lens image

Epson EB-L30000U

  • 30000 ANSI Lumens
  • WUXGA 1920×1200 Native Resolution
  • 3500:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 63.8kg (140.7lb.)
  • 5 Years/20,000 Hours (whichever first) warranty
  • Epson EB-L30000U
Epson EB-L30000U & Epson ELPLL10
£52786 (£63343.20 inc. VAT)
Availability:
Epson ELPLL10 projector lens image

Epson ELPLL10
Suitable For

Epson ELPLL10 Lens Only
£9629 (£11554.80 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
13.84m 20.82m 1114.84

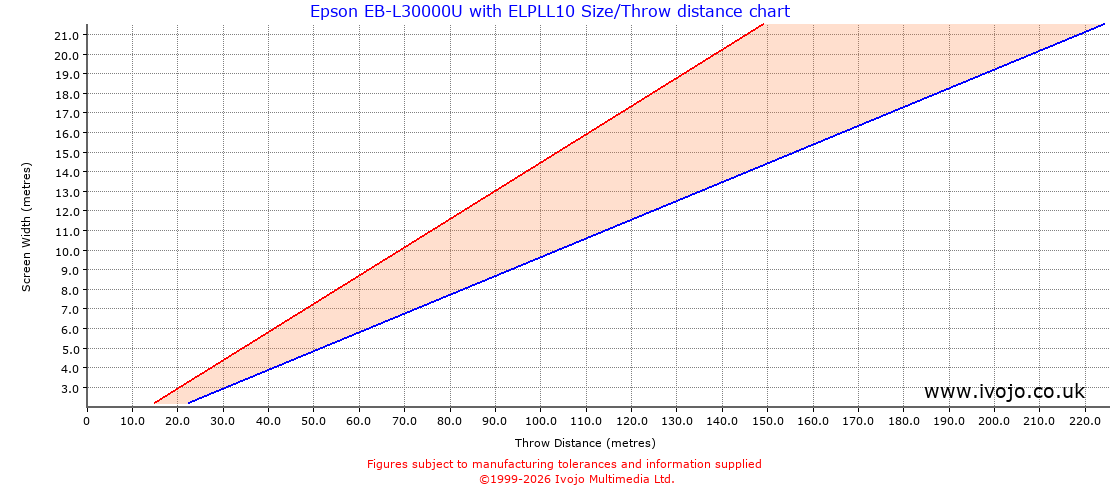

Throw Chard for Epson EB-L30000U fitted with Epson ELPLL10

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 3.46 5.21 0.14 sq.m. 19819.32
1.00 0.56 1.15 6.92 10.41 0.56 sq.m. 4954.83
1.50 0.84 1.72 10.38 15.62 1.27 sq.m. 2202.15
2.00 1.12 2.29 13.84 20.82 2.25 sq.m. 1238.71
2.50 1.41 2.87 17.30 26.02 3.52 sq.m. 792.77
3.00 1.69 3.44 20.76 31.23 5.06 sq.m. 550.54
4.00 2.25 4.59 27.68 41.64 9.00 sq.m. 309.68
5.00 2.81 5.74 34.60 52.05 14.06 sq.m. 198.19

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.10 0.14
2 0.19 0.29
3 0.29 0.43
4 0.38 0.58
5 0.48 0.72
6 0.58 0.87
7 0.67 1.01
8 0.77 1.16

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
