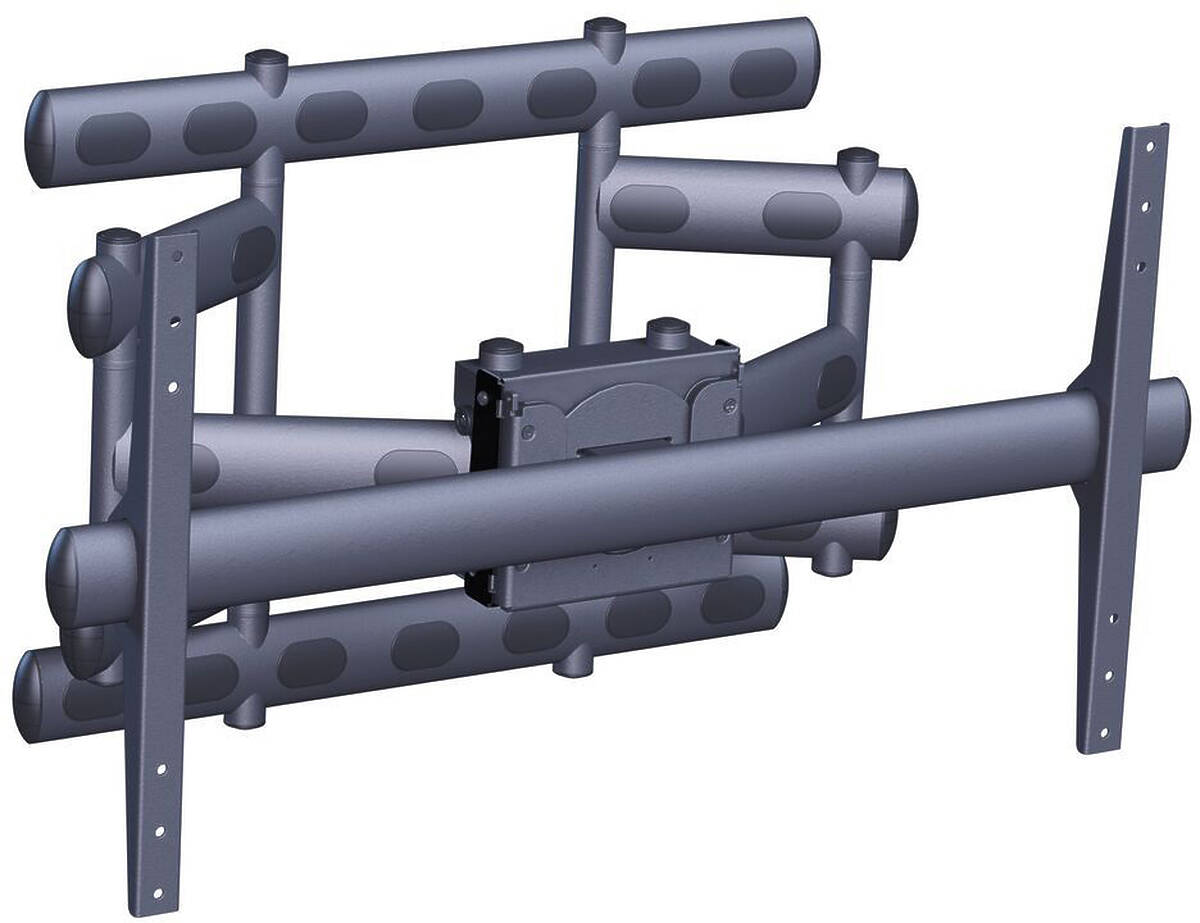

Vogel’s PFW 6855
Turn and Tilt Universal Extending Wall Monitor Mount
65–120″/ Max 227kg; VESA 300×300–800×600
Vogels PFW 6855 (7368550)
The Vogel’s PFW 6855 is an articulating wall mount for displays up to 227 kg / 500 lb. PFW 6855 holds displays with a vertical VESA mounting pattern of 200-300-400-500-600 mm and horizontal max. 907 mm. The positive and negative tilt adjustment allows the mount to be installed level and plumb. The dual articulating arms allow even the heaviest display to be pulled away from the wall for service or alignment. The mount features a 90 degree rotation which allows the display to be installed in landscape, portrait or any other position inbetween.
Designed to fit VESA measurements 300×300, 400×300, 500×300, 400×400, 600×300, 500×400, 400×600, 600×400, 800×400 and 800×600.
- Order Code: 7368550
- See entire Vogels Swing Out Monitor Arm Range
Vogels PFW 6855 Specifications
| Product Group | Vogels Swing Out Monitor Arm |
| UPC / EAN | 8712285323201 |
| Screen Size | 65 – 120″ |
| Max Load | 227.00kg. |
| VESA Mount Points | 300×300 – 800×600 |
| Bracket Tilt | –4–4° |
| Warranty | 5 Years |
| Series | PFW 6000 Series Pop-out & Turn |
| Product group | Display mount turn |
| Guarantee | 5 years |
| Colour | Black |
| Min. screen size | 65 inch |
| Max. screen size | 120 inch |
| Max. weight load | 227kg |
| Number of pivot points | 3 |
| Turn | Up to 90° |
| Tilt | Tilt -4°/+4° |
| Orientation | Landscape / Portrait |
| Lock options | No lock |
| Min. horizontal hole pattern | 200mm |
| Max. horizontal hole pattern | 907mm |
| Min. vertical hole pattern | 300mm |
| Max. vertical hole pattern | 600mm |
| Number of arms | 2 |
| Min Depth (Closed) | 216mm |
| Max Depth (Open) | 623mm |
Ideal For |
|
| Boardrooms | |
| Hospitality | |
| Lobby / Reception Areas | |
| Touchscreen Applications | |
£898 (£1077.60 inc. VAT)
Availability: In Stock with FREE Delivery
Availability: In Stock with FREE Delivery
Vogel’s PFW 6855 Specifications
| Series | PFW 6000 Series Pop-out & Turn |
| Product group | Display mount turn |
| Guarantee | 5 years |
| Colour | Black |
| Min. screen size | 65 inch |
| Max. screen size | 120 inch |
| Max. weight load | 227kg |
| Number of pivot points | 3 |
| Turn | Up to 90° |
| Tilt | Tilt -4°/+4° |
| Orientation | Landscape / Portrait |
| Lock options | No lock |
| Min. horizontal hole pattern | 200mm |
| Max. horizontal hole pattern | 907mm |
| Min. vertical hole pattern | 300mm |
| Max. vertical hole pattern | 600mm |
| Number of arms | 2 |
| Min Depth (Closed) | 216mm |
| Max Depth (Open) | 623mm |
