Vogel’s PFW 6851
Turn and Tilt Universal Wall Monitor Mount
42–65″/ Max 80kg; VESA 200×200–800×600
Vogels PFW 6851 (7368510)

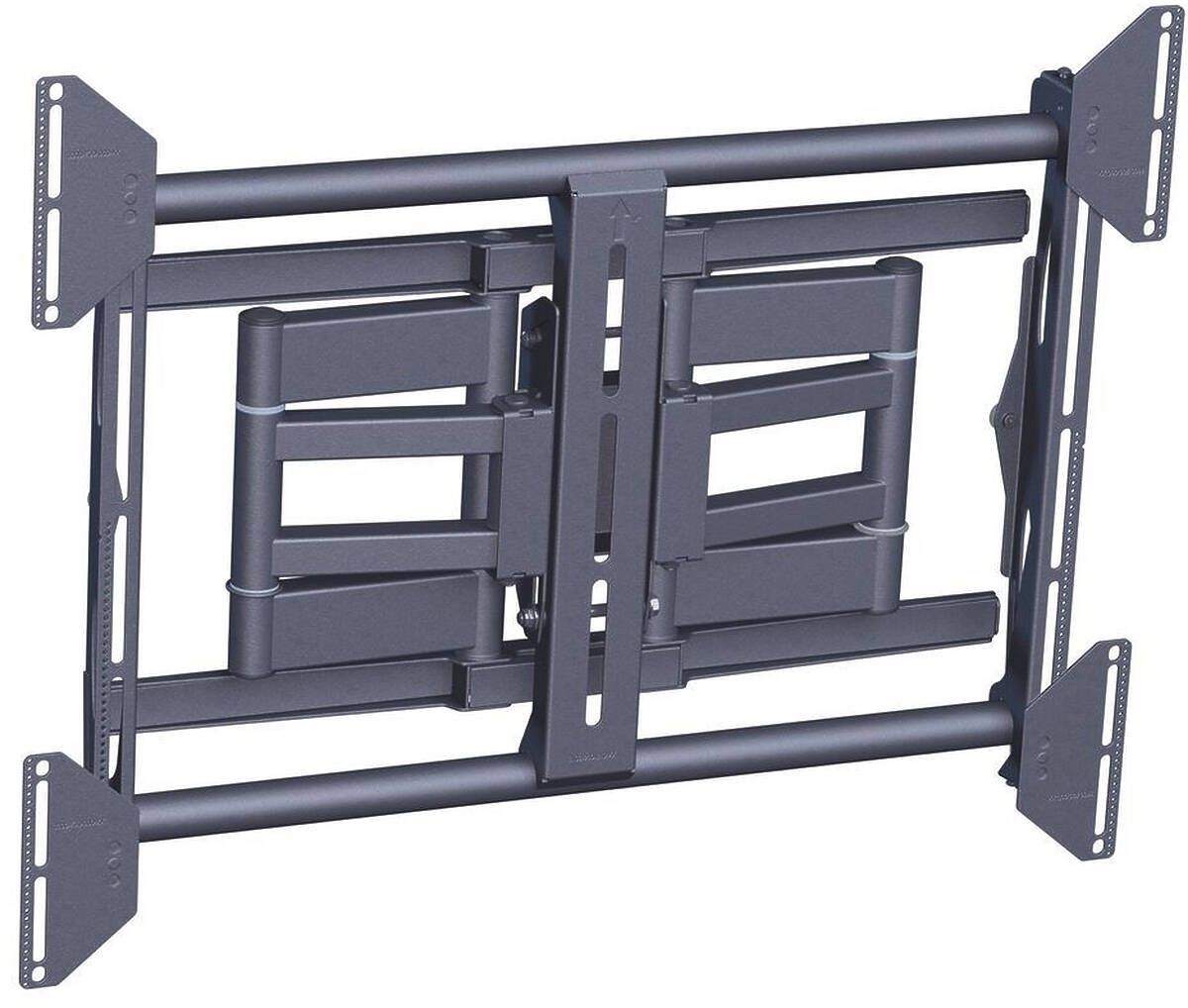

The PFW 6851 is a swingout mount for displays up to 80 kg / 175 lbs. Typically fits displays ranging from 42 - 85 inch or displays with a mounting pattern of 200 x 200 mm to 800 x 600 mm.
The PFW 6851 allows up to 45° of swivel to both sides, 10° of tilt and extends up to 40 cm from the wall.
Designed to fit VESA measurements 200×200, 300×200, 400×200, 300×300, 500×200, 400×300, 600×200, 500×300, 400×400, 600×300, 500×400, 400×600, 600×400, 800×400 and 800×600.
- Up to 45° of swivel to both sides
- 10° of tilt
- Extends up to 40cm from wall
- Order Code: 7368510
- See entire Vogels Swing Out Monitor Arm Range
Vogels PFW 6851 Specifications
| Product Group | Vogels Swing Out Monitor Arm |
| UPC / EAN | 8712285323386 |
| Screen Size | 42 – 65″ |
| Max Load | 80.00kg. |
| VESA Mount Points | 200×200 – 800×600 |
| Bracket Tilt | 0–10° |
| Warranty | 5 Years |
| Series | PFW 6000 Series Pop-out & Turn |
| Product group | Display mount turn |
| Guarantee | 5 years |
| Colour | Black |
| Min. screen size | 42 inch |
| Max. screen size | 85 inch |
| Max. weight load | 80kg |
| Number of pivot points | 3 |
| Turn | Up to 90° |
| Tilt | Tilt up to 10° |
| Orientation | Landscape |
| Lock options | No lock |
| Levelling function | Post-installation horizontal levelling |
| Min. horizontal hole pattern | 200mm |
| Max. horizontal hole pattern | 800mm |
| Min. vertical hole pattern | 200mm |
| Max. vertical hole pattern | 600mm |
| Number of arms | 2 |
| Min Depth (Closed) | 79mm |
| Max Depth (Open) | 404mm |
£285 (£342.00 inc. VAT)
Availability: In Stock with FREE Delivery
Availability: In Stock with FREE Delivery
Vogel’s PFW 6851 Specifications
| Series | PFW 6000 Series Pop-out & Turn |
| Product group | Display mount turn |
| Guarantee | 5 years |
| Colour | Black |
| Min. screen size | 42 inch |
| Max. screen size | 85 inch |
| Max. weight load | 80kg |
| Number of pivot points | 3 |
| Turn | Up to 90° |
| Tilt | Tilt up to 10° |
| Orientation | Landscape |
| Lock options | No lock |
| Levelling function | Post-installation horizontal levelling |
| Min. horizontal hole pattern | 200mm |
| Max. horizontal hole pattern | 800mm |
| Min. vertical hole pattern | 200mm |
| Max. vertical hole pattern | 600mm |
| Number of arms | 2 |
| Min Depth (Closed) | 79mm |
| Max Depth (Open) | 404mm |
