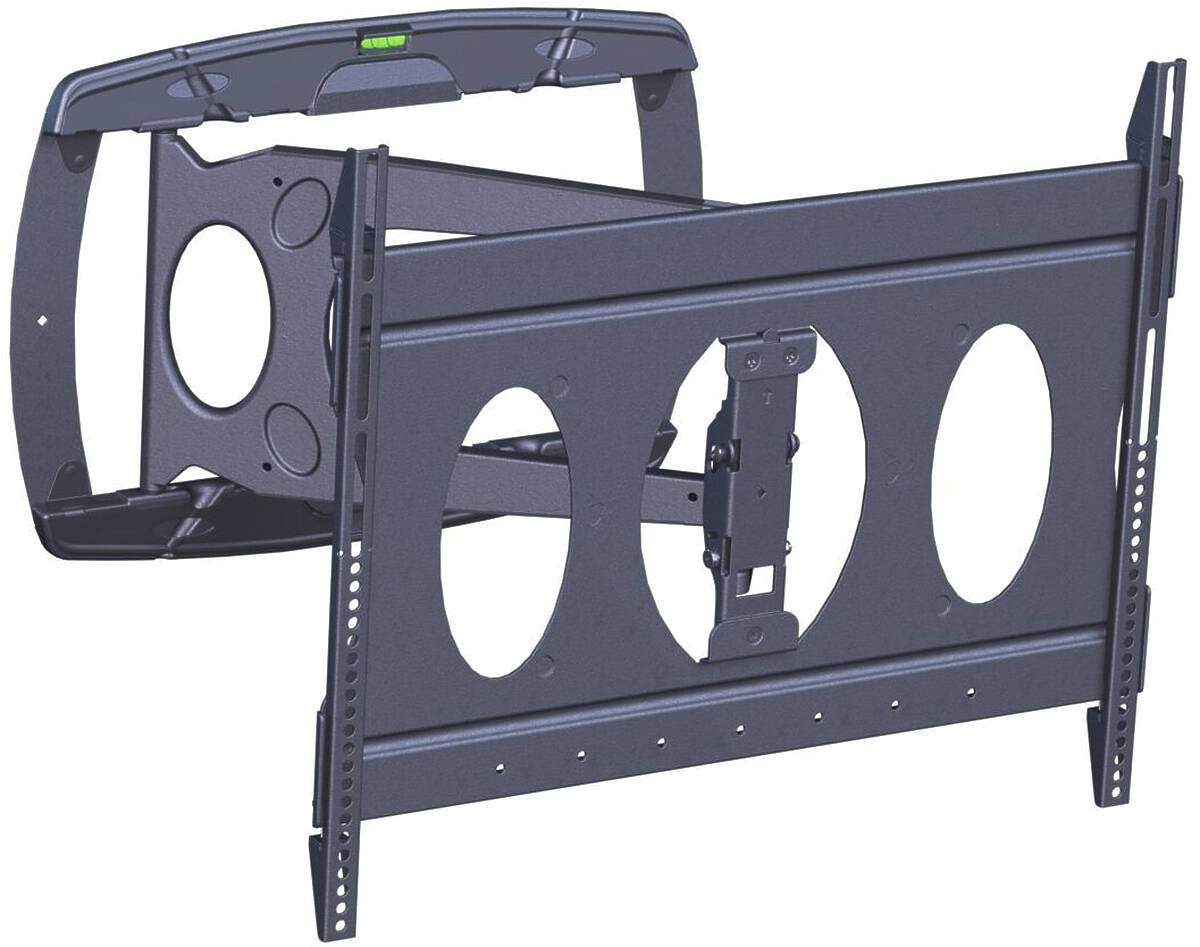

Vogel’s PFW 6850
Low Profile Turn and Tilt Universal Wall Monitor Mount
42–65″/ Max 40kg; VESA 100×100–600×400
Vogels PFW 6850 (7368500) Description
The PFW 6850 is an ultra slim wall mount for displays up to 40kg / 88 lbs. that provides two options for the swing arm placement, allowing the mount to swing out from the left or right, based on the installation requirements.

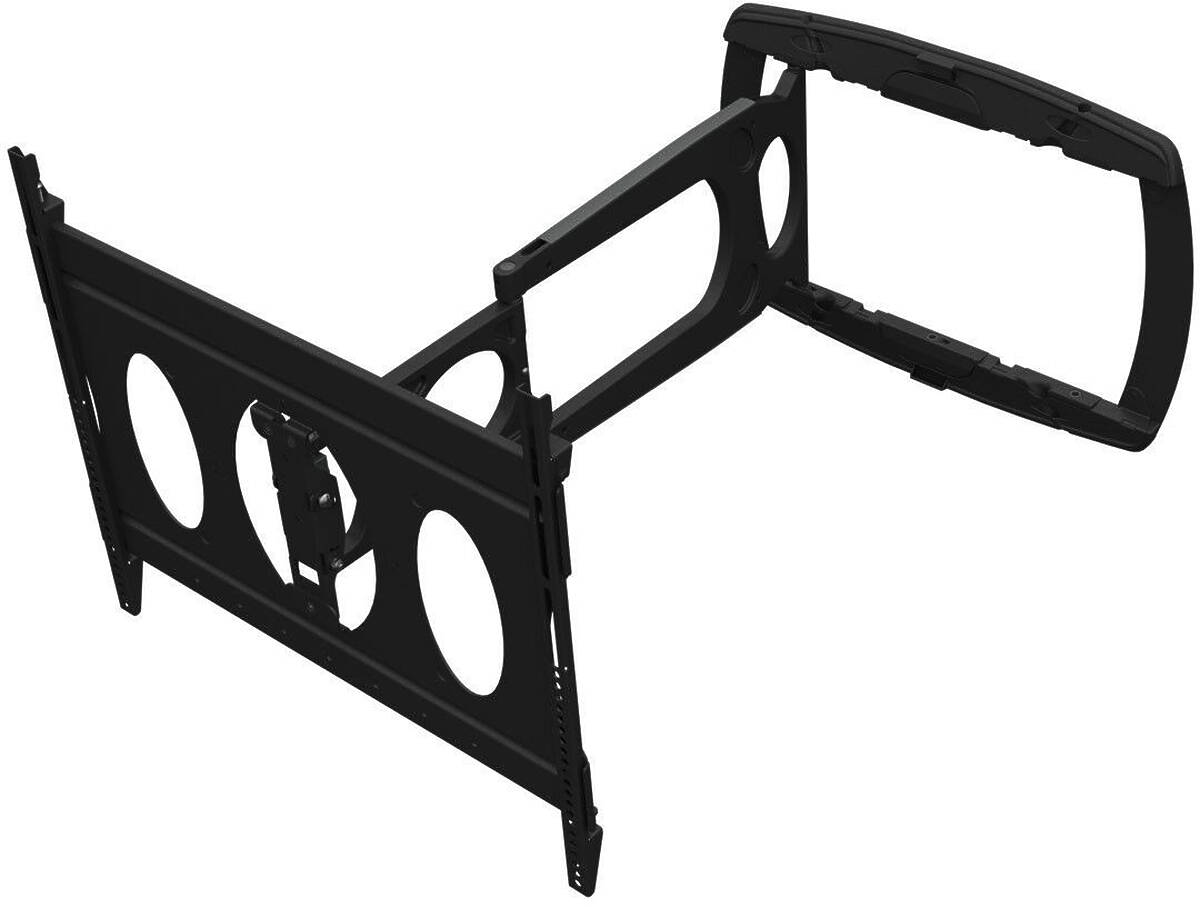

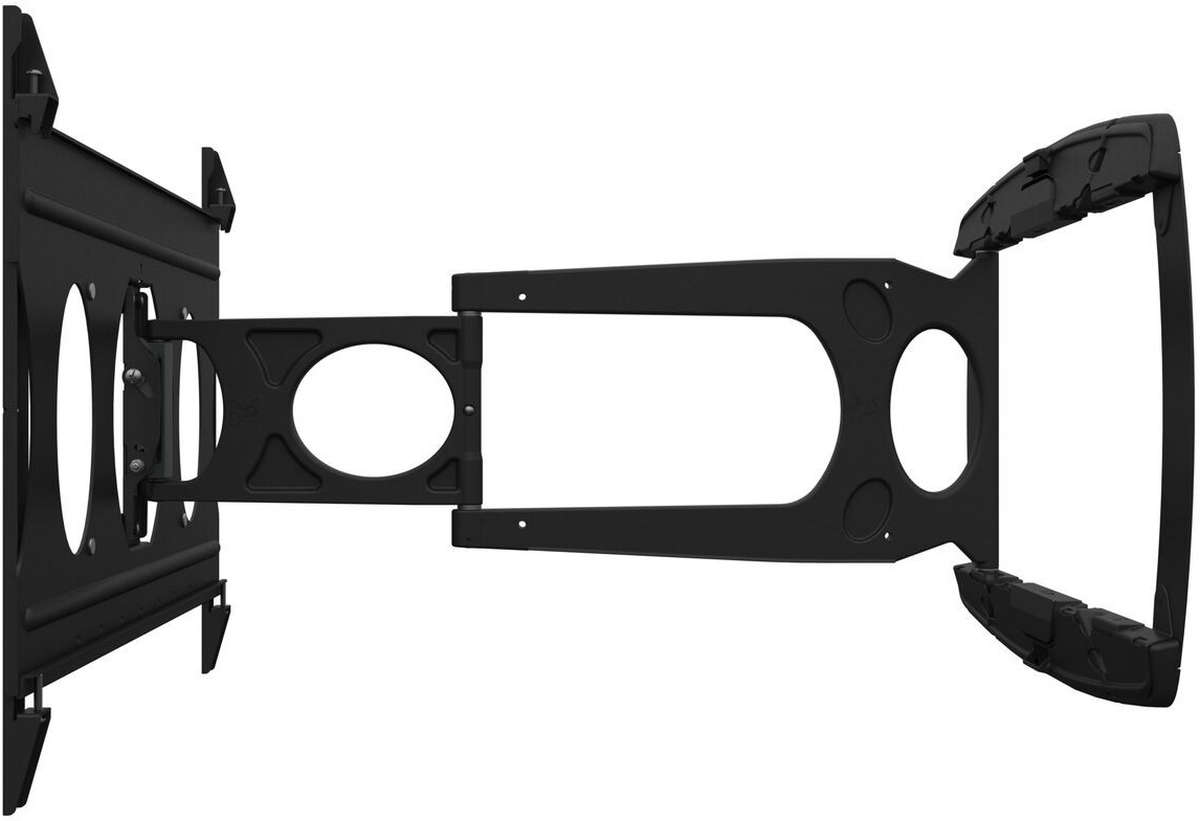

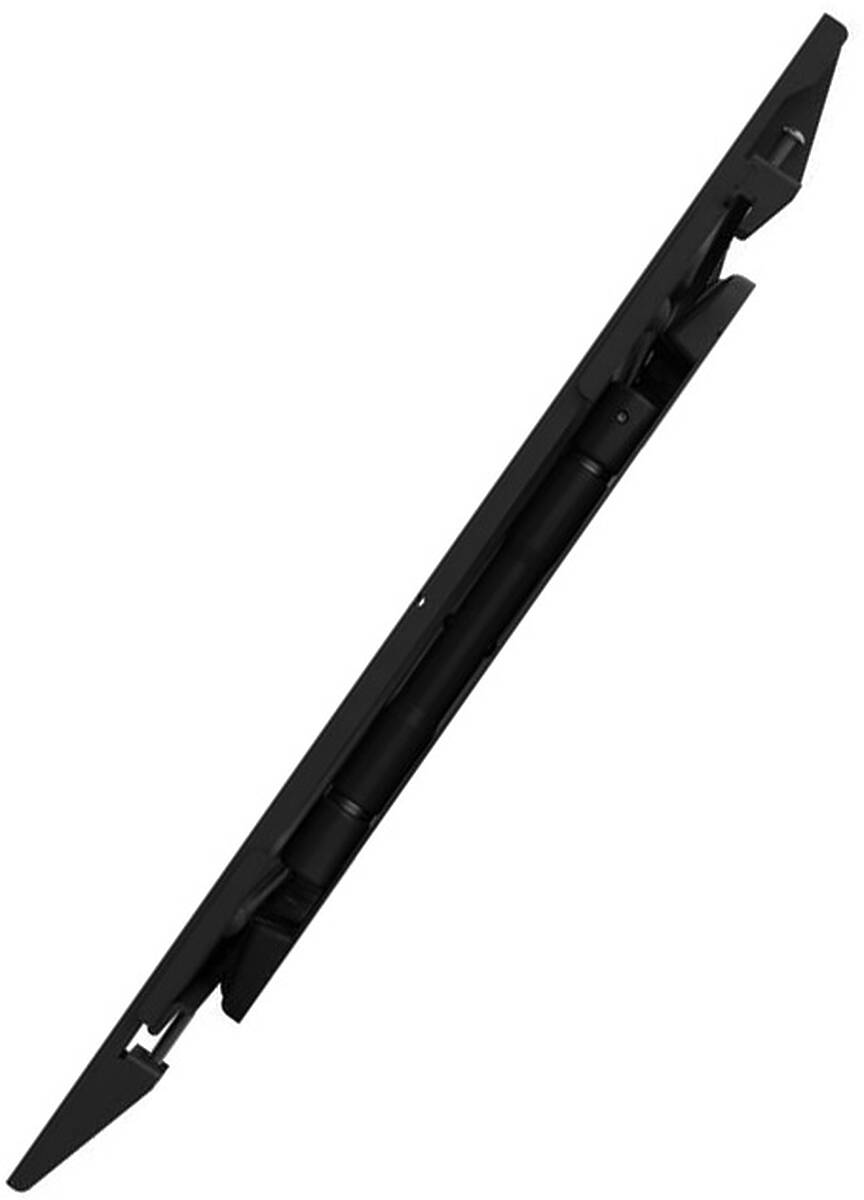

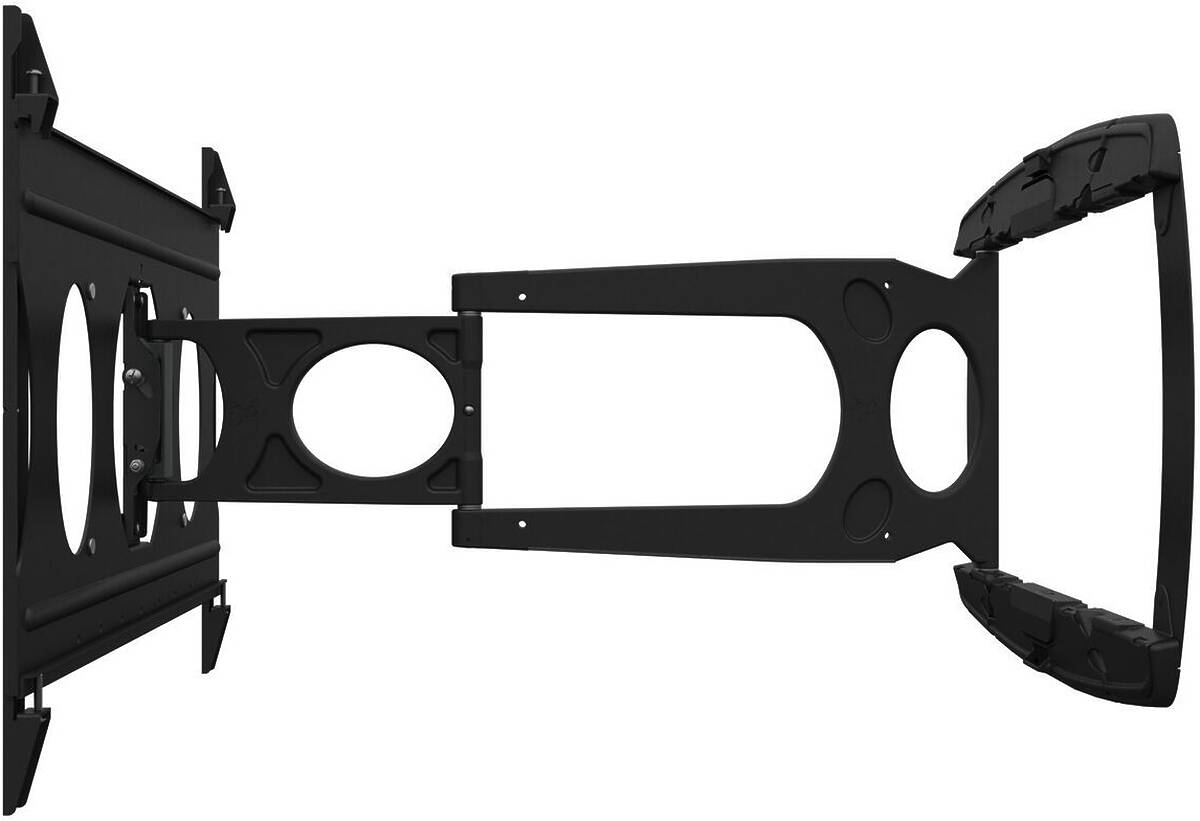

The swing-out arm extends 76 cm from the wall and provides 15° of downward tilt to achieve the desired viewing angle from virtually anywhere in a room. The lightweight aluminium mount retracts smoothly and easily to a very thin 3.8 cm from the wall. To keep power and cables protected when pulling or pushing the display, cable management channels are built into the arm.
Designed to fit VESA measurements 100×100, 100×200, 200×100, 150×200, 200×200, 300×200, 200×300, 400×200, 200×400, 300×300, 500×200, 600×200, 400×300, 300×400, 500×300, 400×400, 600×300, 500×400 and 600×400.
Key Features
- 5 Year Warranty
- VESA Up to 100x100 to 600×400
- Min. Depth 38mm
- Max. Depth 749mm
- Turn up to 180°
- Tilt up to 15°
- See entire Vogels Swing Out Monitor Arm Range
£432 (£518.40 inc. VAT)
Availability: In Stock with FREE Delivery
Availability: In Stock with FREE Delivery
Vogels PFW 6850 Specifications
| Product Group | Vogels Swing Out Monitor Arm |
| UPC / EAN | 8712285323362 |
| Screen Size | 42–65″ |
| Max Load | 40kg |
| VESA Mount Points | 100×100–600×400mm |
| Bracket Tilt | 0–15° |
| Warranty | 5 Years |
| Screen Size | 42-65 inch |
| Colour | Black |
| Max. weight load | 40kg |
| Number of pivot points | 3 |
| Turn | Up to 180° |
| Tilt | Tilt up to 15° |
| Min Depth (Closed) | 38mm |
| Max Depth (Open) | 749mm |
| Orientation | Landscape |
| Lock options | No lock |
| Levelling function | Post-installation horizontal levelling |
| Number of arms | 2 |

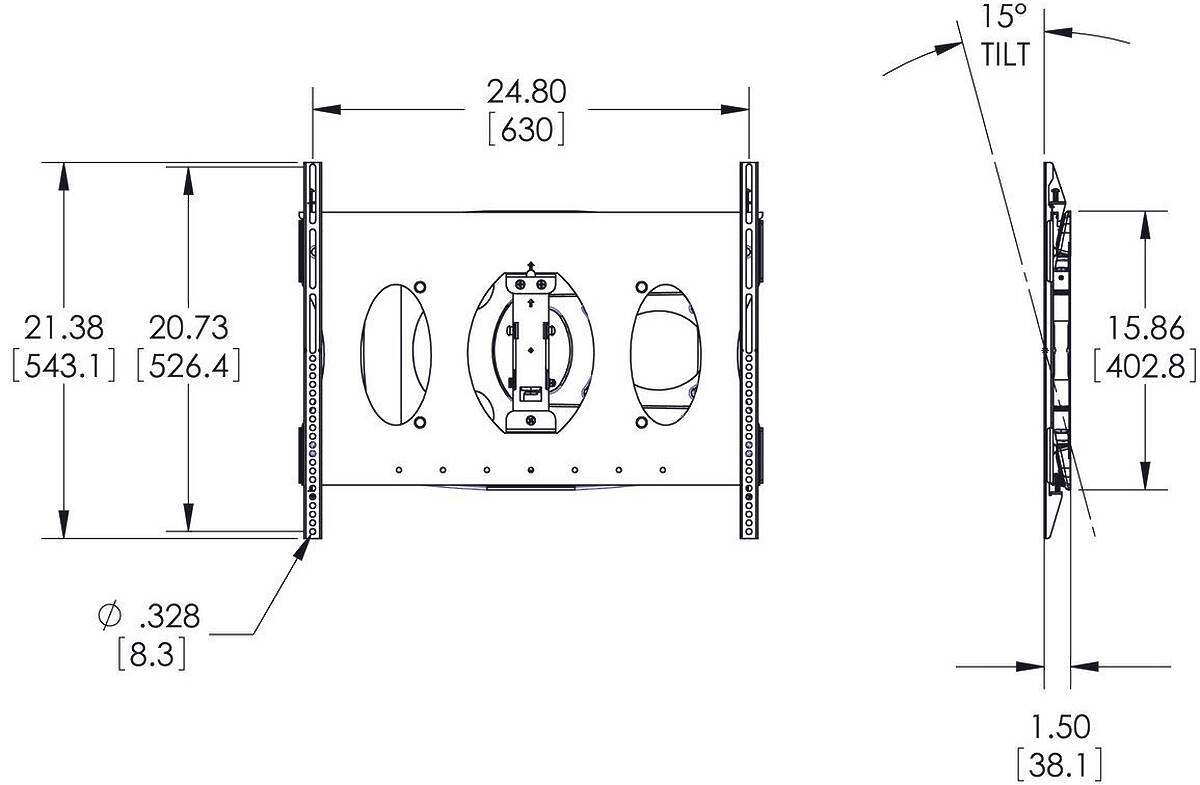

| Horizontal Hole Pattern | 100-630mm |
| Vertical Hole Pattern | 100-526mm |
| Guarantee | 5 years |
