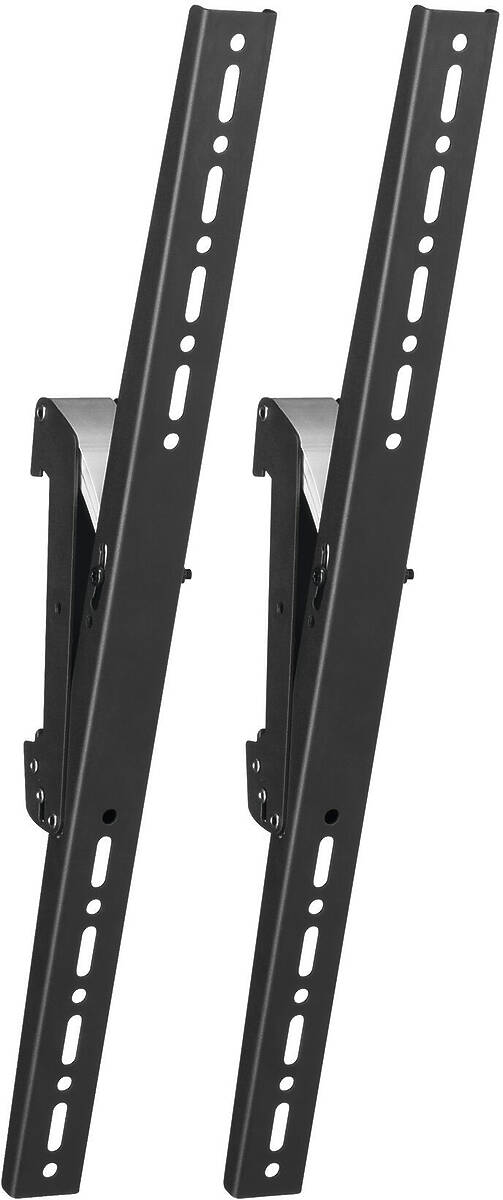

Vogel’s PFS 3306
Vertical mounting arms for LCD/LED monitors and commercial TV's
Max.80kg, 20° Tilt;VESA 200–600mm Vertical
Vogels PFS 3306 (7233060) Description
The Vogel’s PFS3306 interface display strips is part of the modular Connect-it system with which you can create your own ceiling or floor solution for medium to large sized displays.
The PFS3306 is suitable for medium to large sized displays up to 80 kg with a max. vertical fitment of 600 mm.For creating a ceiling solution combine the PFS3306 with a Connect-it ceiling plate, pole (PUC25xx Series) and interface bar (PFB34xx Series). For creating a floor solution combine the PFS3306 with a Connect-it floor plate/ trolley, pole (PUC27xx Series) and interface bar (PFB34xx Series). The PFS3306 can also be combined with the motorised products (PFFE7110, PFTE7112, PFWE7150).
£72 (£86.40 inc. VAT)
Availability: In Stock
Availability: In Stock
Vogels PFS 3306 Specifications
| Product Group | Vogels VESA Arms |
| UPC / EAN | 8712285318900 |
| Max Load | 80.00kg. |
| Bracket Tilt | 0–20° |
| Warranty | 5 Years |
| Series | Connect-it |
| Product group | Interface strip |
| Colour | Black |
| Guarantee | 5 years |
| Tilt | Tilt up to 20° |
| Max. weight load | 80kg |

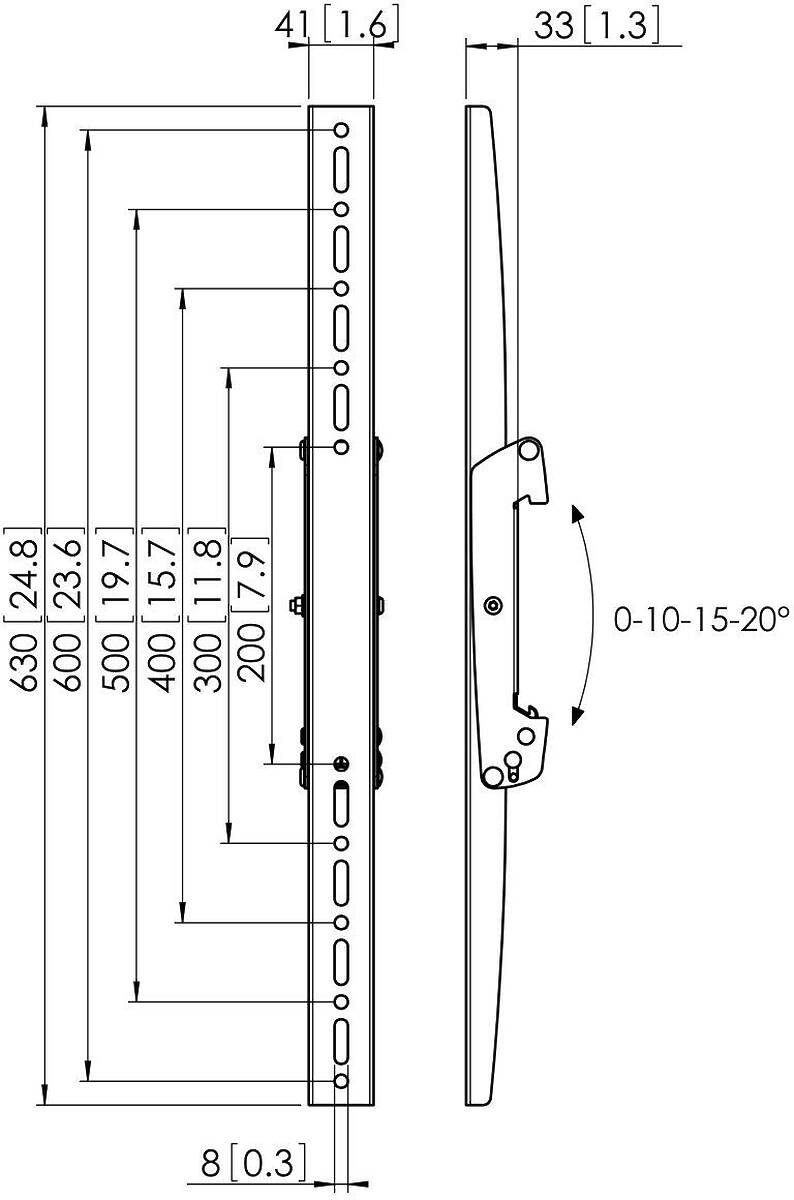

| Min. vertical hole pattern | 200mm |
| Max. vertical hole pattern | 600mm |
| Length display strips / Max. fitment | 630/600mm |
