Unicol SG5

5 Screen Spider Gantry Frame
33–57″/ Max 35kg per screen; Monitors 93–140cm wide

Unicol SG5 5 Screen Spider Gantry Frame product image

Unicol SG5 Description

The spider gantry frames are versatile multi-screen mounts, perfectly suited for a wide range of installations in high footfall areas such as retail, transport, directional, or healthcare environments. The SG5 model, a standout in this range, allows for the mounting of five screens in a pentagon configuration. This design ensures that content can be viewed from all angles, making it an ideal solution for environments where visibility and engagement from multiple directions are key.

Each mount features excellent cable entry ports and offers fine adjustment for a neat installation.

Key Features

Incorporate tilting screen mounts
All have swivel capability
Cable entry ports allow for neat installation
Available on short turnaround
Ideal for restaurants, retail and more
Suitable for screens between 33-57”
Adjustable arms so you can get the right fit for your screens
Multi Monitor
See entire Unicol Gantry Range

£622 (£746.40 inc. VAT)
Availability: In Stock with FREE Delivery

Unicol SG5 Specifications

Product Group	Unicol Gantry
Colour	Sinterflex Black
Colour Options	Custom RAL colours available at additional cost
Screen Size	33 – 57″
Max Load	175.00kg.

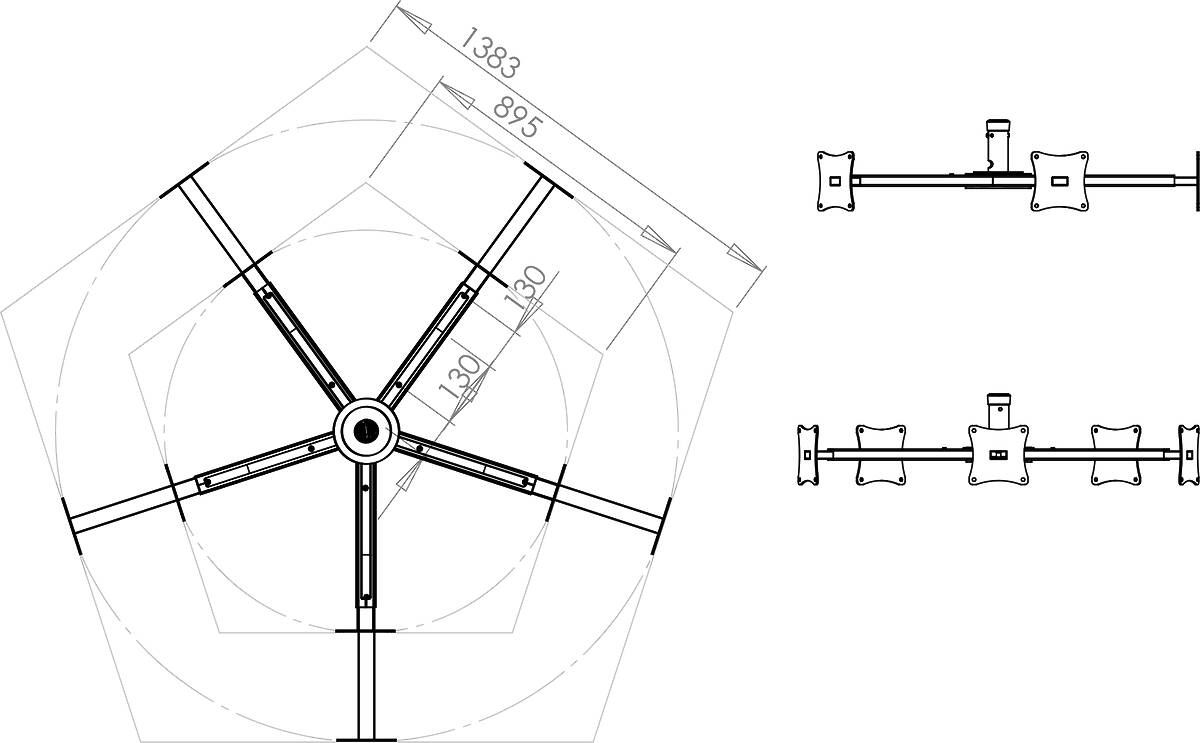

Dimensions	1442.0mm – 1862.0mm width 277.0mm height 1164.0mm – 1771.0mm depth
Weight	24.00kg.
Warranty	10 Years
