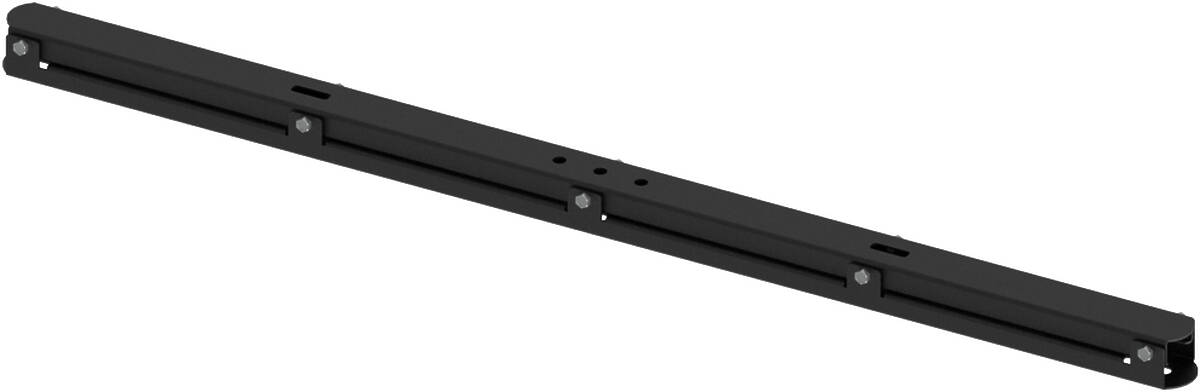

Unicol DIG100150

1000–1500mm Inline Gantry Frame

Unicol DIG100150

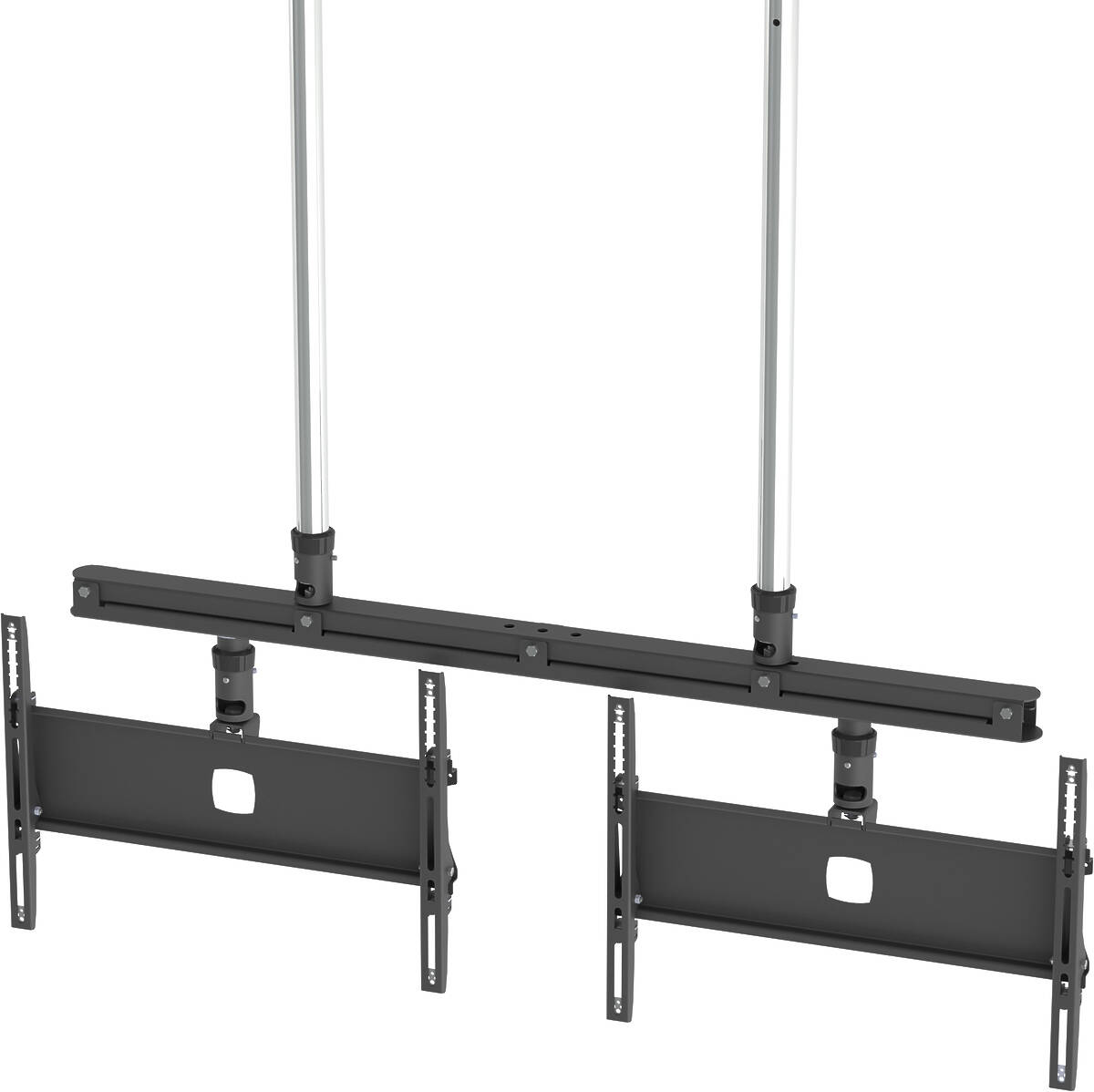

Available in 4 lengths as standard, the inline gantry frames accommodate a range of multi-screen installations, making them ideal for restaurants, in train stations, retail and more. This frame is adjustable between 100-500mm making it ideal for one single sided or back-to-back 33-57” screen.

The solution is best utilised alongside CP1 standard ceiling plates, MSP1 bolt-on pegs, MSS1 bolt-on sockets, KP1CB screen mounts, and your choice of column length.

Key Features

Cable entry ports allow for neat installation
Ideal for restaurants, retail and more
Does not include gantry ceiling mount, screen mount and column
See entire Unicol Gantry Range

Unicol DIG100150 Specifications

Product Group	Unicol Gantry
Colour Options	Custom RAL colours available at additional cost
Screen Size	33 – 57″
Max Load	40.00kg.
Dimensions	1600.0mm width 66.0mm height 82.0mm depth
Weight	11.50kg.
Warranty	10 Years
