Multibrackets MBW2U Micro Adjustable

M Wallmount Pro 2 × Monitor Wall Mount
2 × 32–65″ / Max 100.00kg; VESA 100×100–600×400

Multibrackets MBW2U Micro Adjustable M Wallmount Pro 2 × Monitor Wall Mount product image. Click to enlarge.
Multibrackets MBW2U Micro Adjustable M Wallmount Pro 2 × Monitor Wall Mount product image Multibrackets MBW2U Micro Adjustable M Wallmount Pro 2 × Monitor Wall Mount product image Multibrackets MBW2U Micro Adjustable M Wallmount Pro 2 × Monitor Wall Mount product image Multibrackets MBW2U Micro Adjustable M Wallmount Pro 2 × Monitor Wall Mount product image Multibrackets MBW2U Micro Adjustable M Wallmount Pro 2 × Monitor Wall Mount product image Multibrackets MBW2U Micro Adjustable M Wallmount Pro 2 × Monitor Wall Mount product image Multibrackets MBW2U Micro Adjustable M Wallmount Pro 2 × Monitor Wall Mount product image Multibrackets MBW2U Micro Adjustable M Wallmount Pro 2 × Monitor Wall Mount product image

Multibrackets MBW2U Micro Adjustable Description

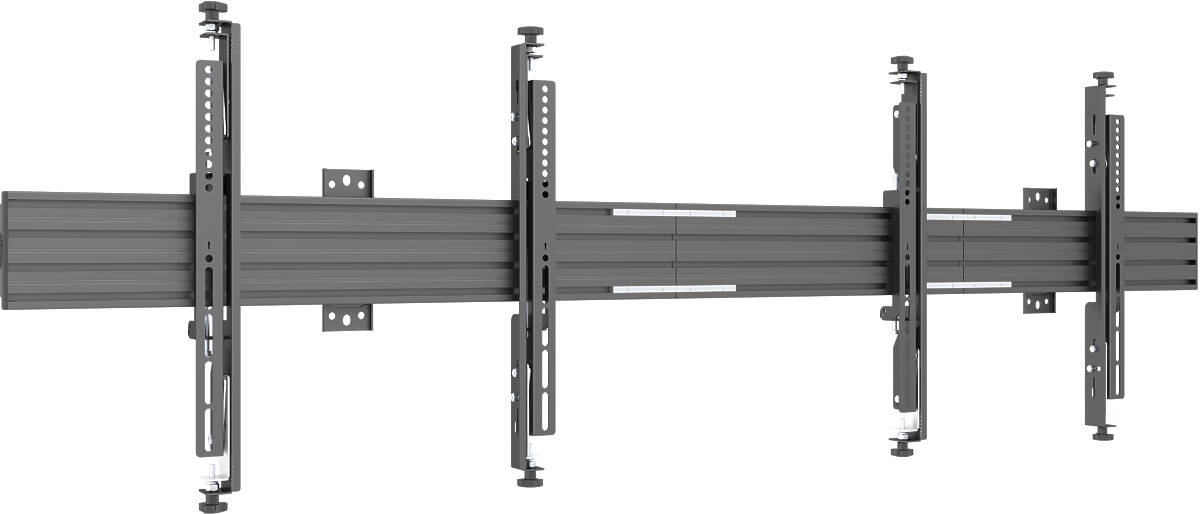

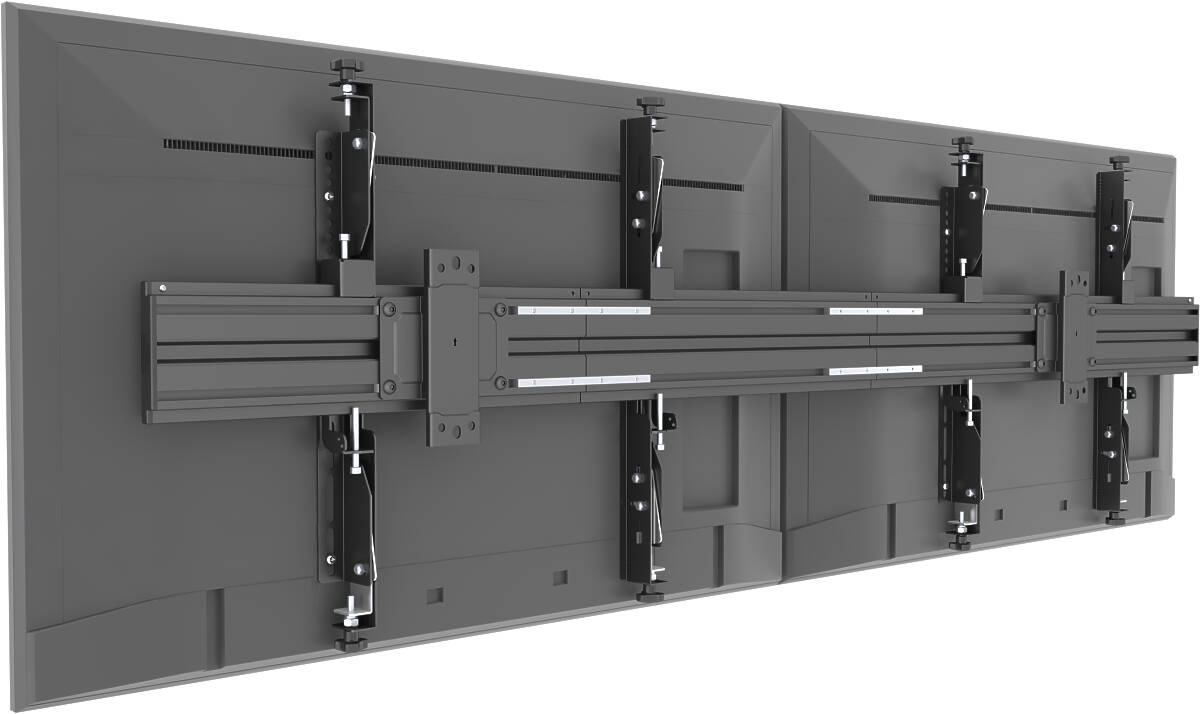

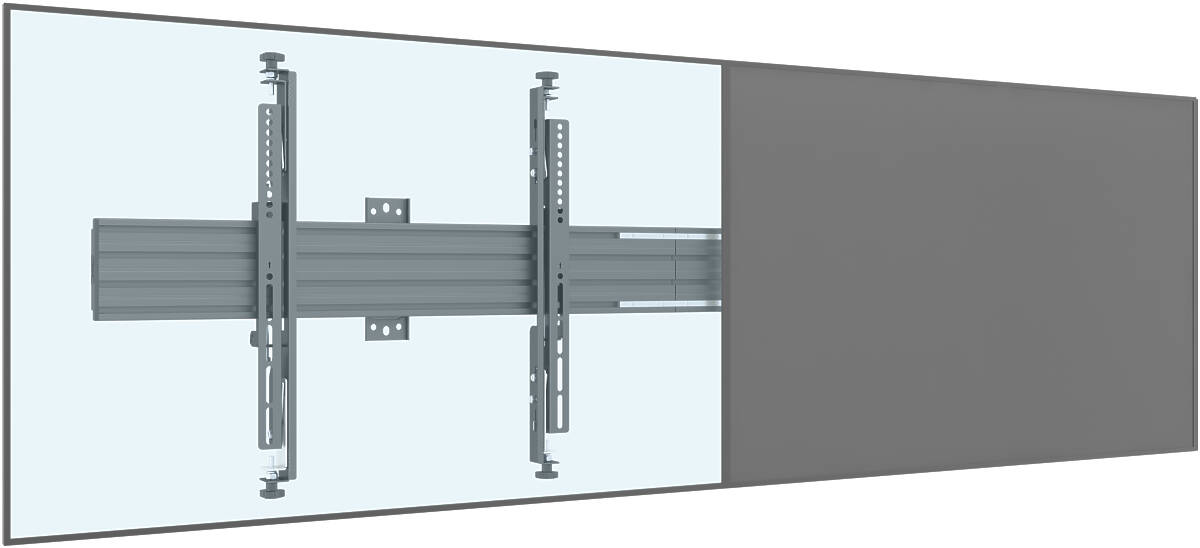

M Wallmount Pro MBW2U Micro Adjustable Black is a professional wall mount for 2 displays in landscape or portrait mode. Designed for 32–65″ screens and loads up to 50kg per screen, it enables seamless multi-screen configurations with precise micro-adjustment features — perfect for digital signage, video walls, or menu boards.

As part of the Multibrackets® Pro Series, it’s built on a modular aluminium rail system, offering maximum flexibility, fast installation, and integrated cable management for clean, professional results in public and commercial environments.

Designed to fit VESA measurements 100×100, 100×200, 200×100, 150×200, 200×200, 300×200, 200×300, 400×200, 200×400, 300×300, 500×200, 600×200, 400×300, 300×400, 500×300, 400×400, 600×300, 500×400 and 600×400.

Key Features

  • Fixed wall mount for extra-large displays sized 32–65″
  • Compatible with VESA patterns from 100×100–600×400 – adapter kit included
  • Supports LFDs up to Max Load 100KG (50kg per monitor)

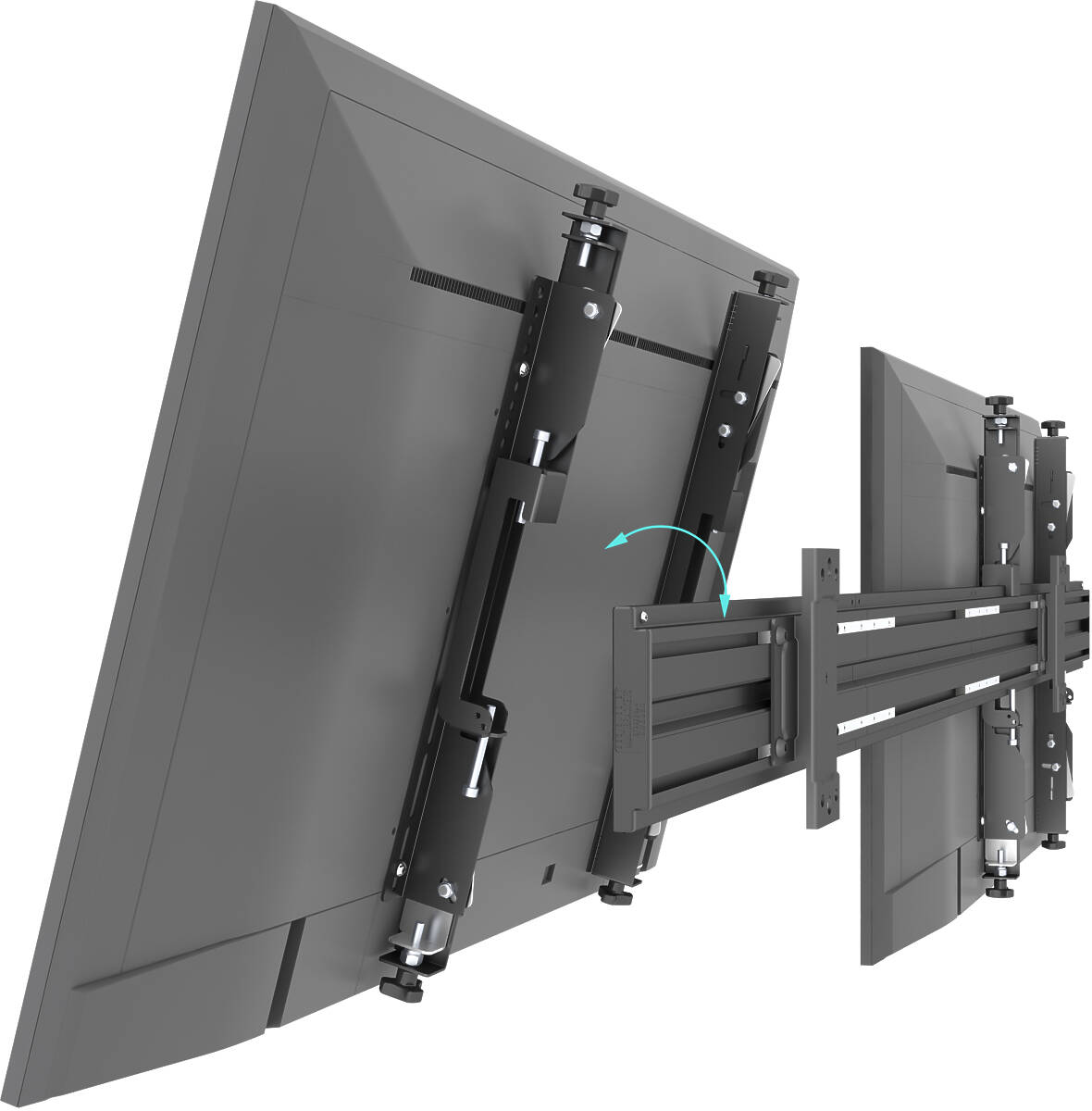

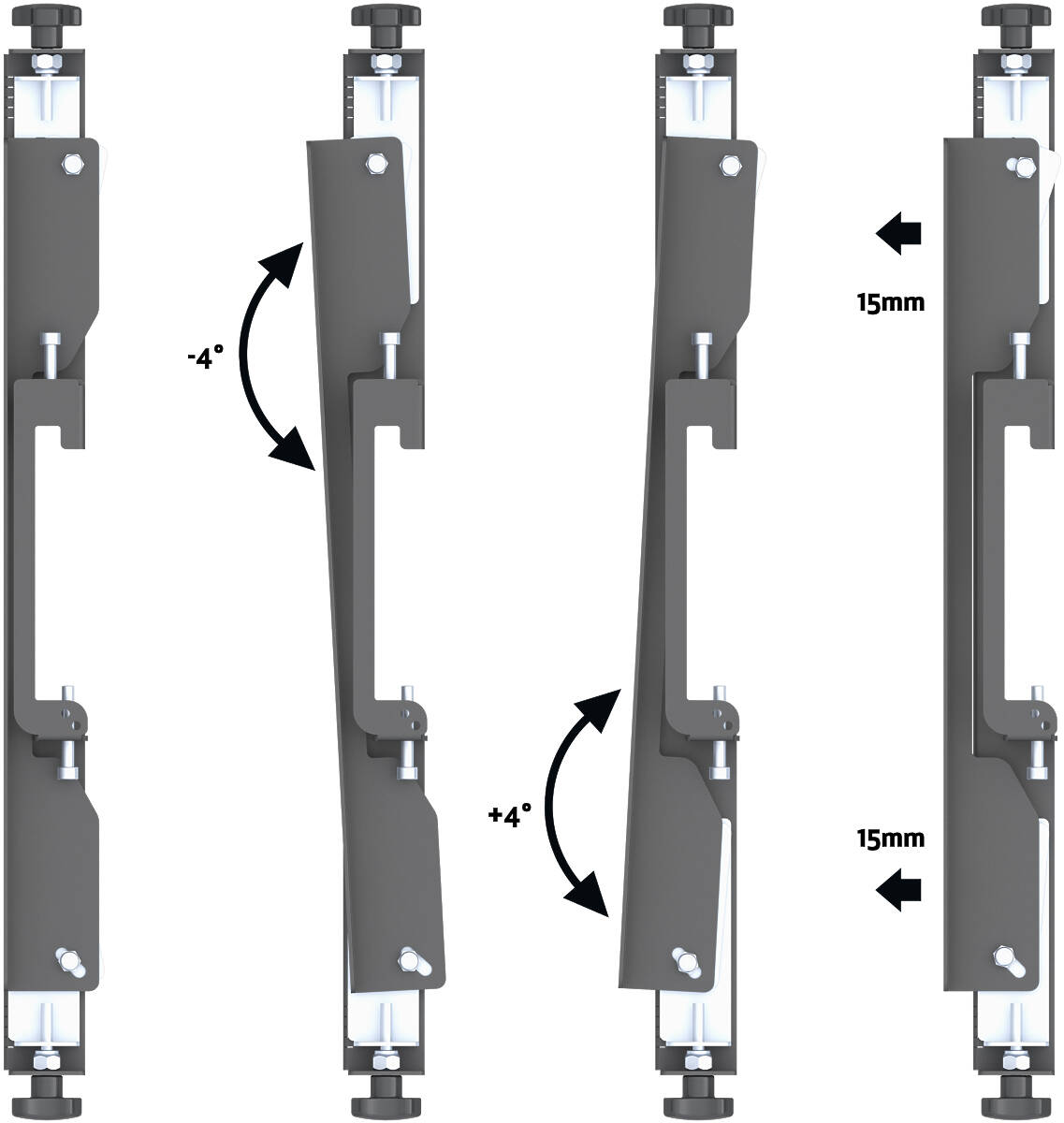

  • Micro-adjustable in depth, height, and lateral position
  • Quick installation with tool-free fine-tuning
  • Modular design with scalable and reconfigurable options

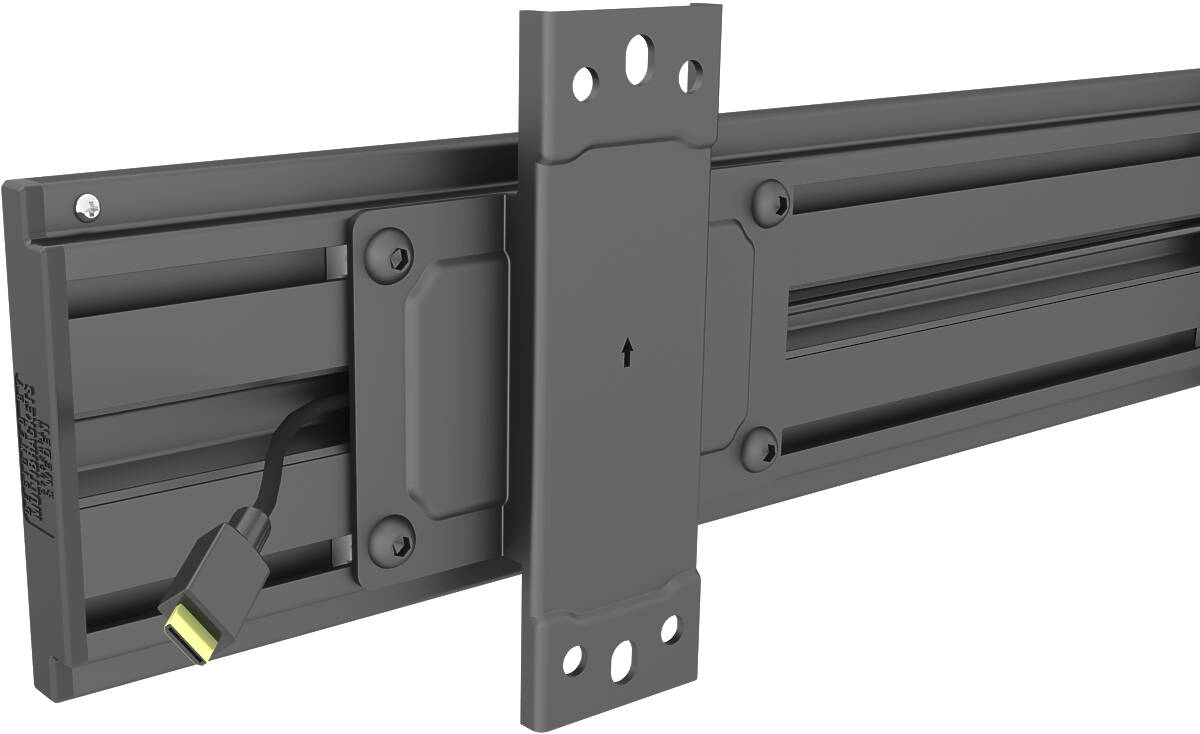

  • Integrated cable management for a tidy appearance
  • Compatible with both landscape and portrait orientations

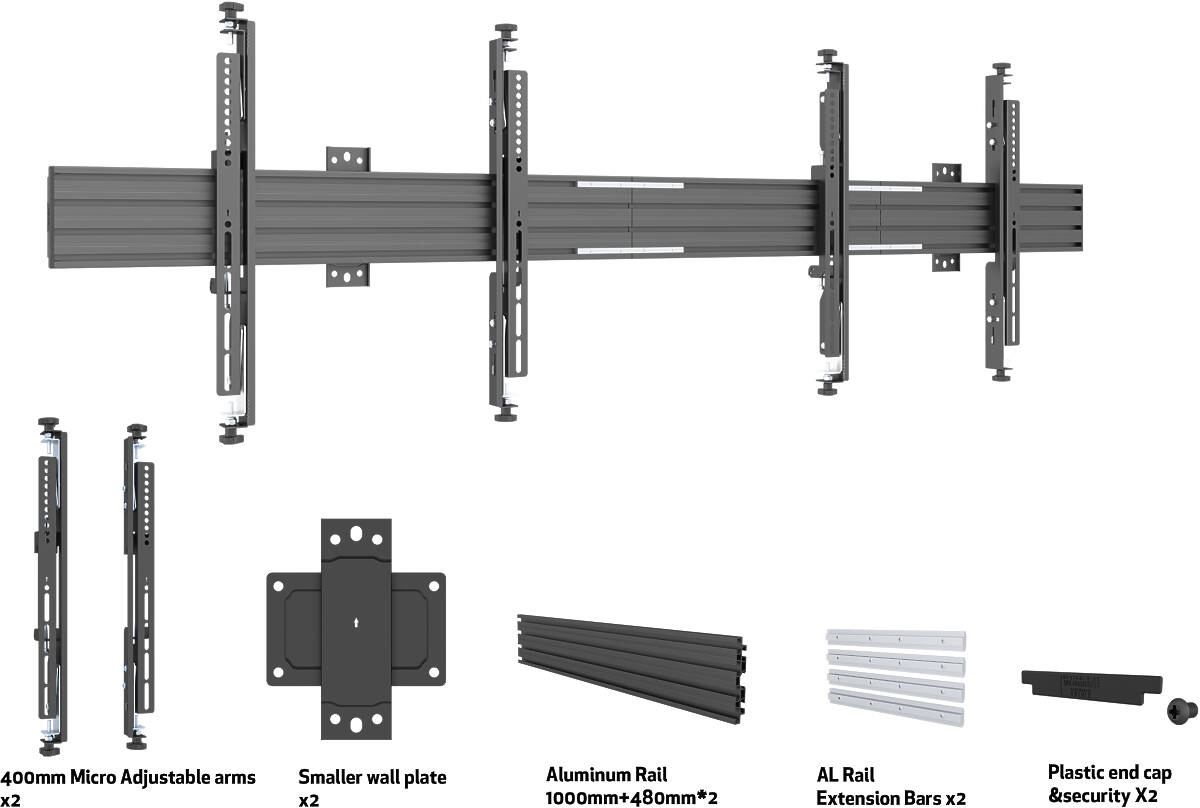

  • Complete hardware kit included
  • Multi Monitor
  • Portrait or Landscape Monitor Orientation
  • See entire Multibrackets Pro Series Wallmount Range
£547 (£656.40 inc. VAT)
Availability: Please Call

Ideal For

  • Conference Suites
  • Conferences
  • Control Rooms
  • Digital Signage
  • Exhibitions
  • Restaurants & Cafe's
  • Retail
  • Scheduling Displays
  • Sports Halls and Gyms
  • Trade Shows
  • TV Studios and Broadcast

Multibrackets MBW2U Micro Adjustable Downloads

Multibrackets MBW2U Micro Adjustable Specifications

Product Group Multibrackets Pro Series Wallmount
UPC / EAN 7350105210631
Monitor Count 2
Colour Black
Screen Size 32–65″
Max Load 100kg
Per Monitor 50kg
VESA Mount Points 100×100–600×400mm

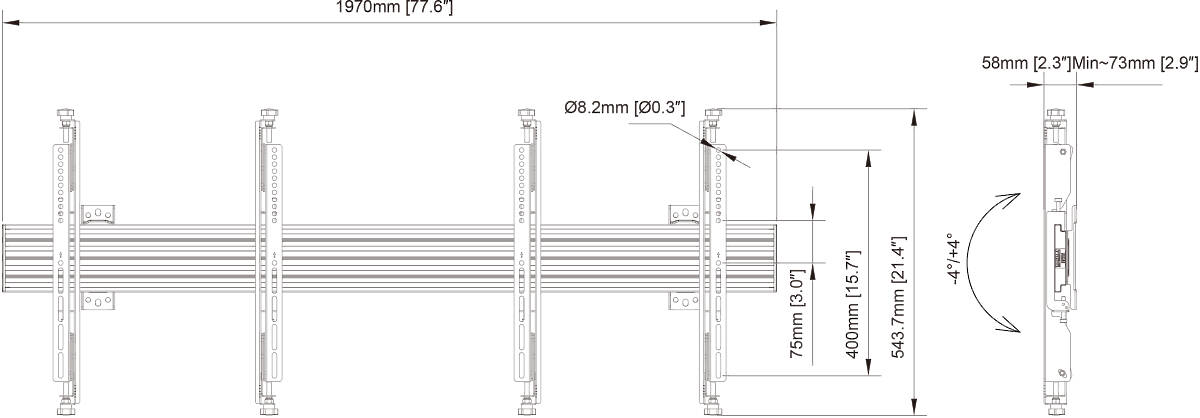

Dimensions 1970.0mm width
543.7mm height
58.0mm – 73.0mm depth
Bracket Tilt ±4°
Weight 12.50kg.
Warranty 5 Years
