Multibrackets MBW1U 1600

M Wallmount Pro Fixed Non-tilting Monitor Wall Mount
65–140″ / Max 100.00kg; VESA 100×100–1600×600

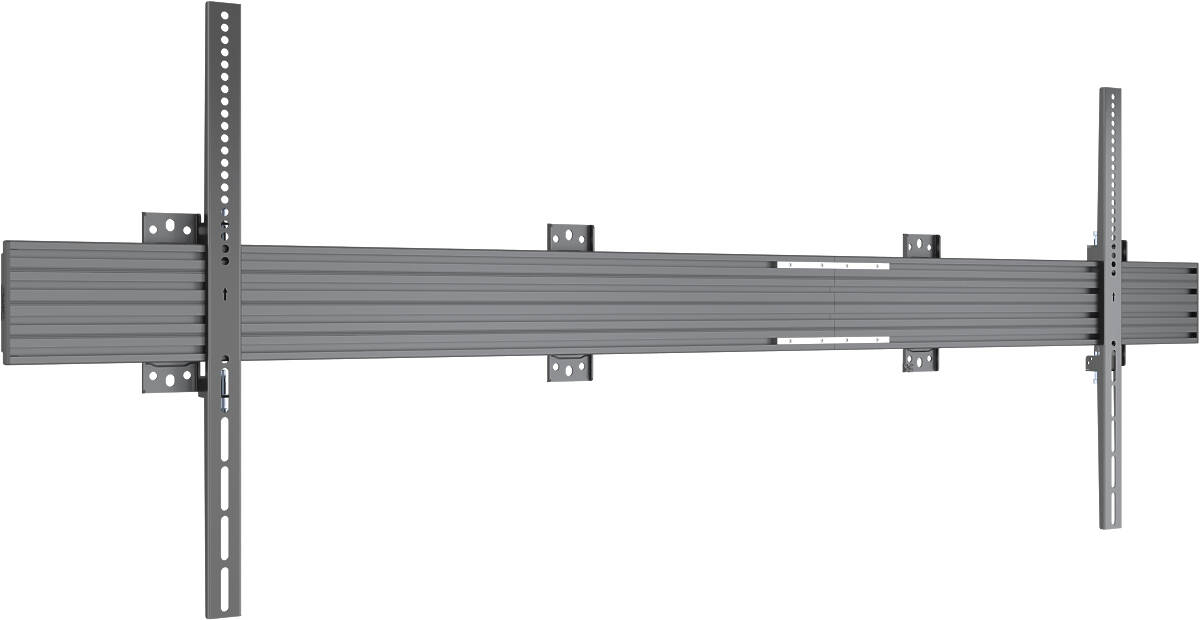

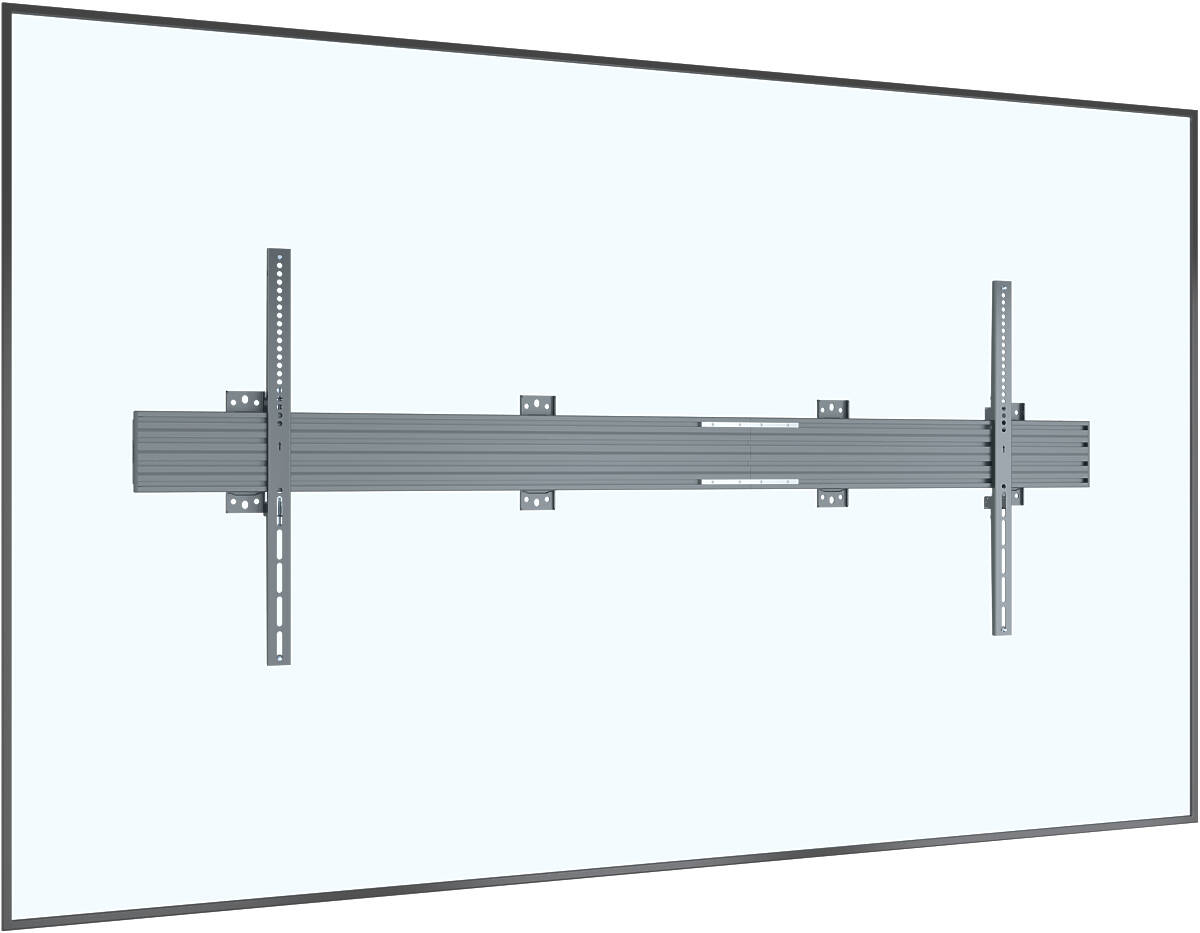

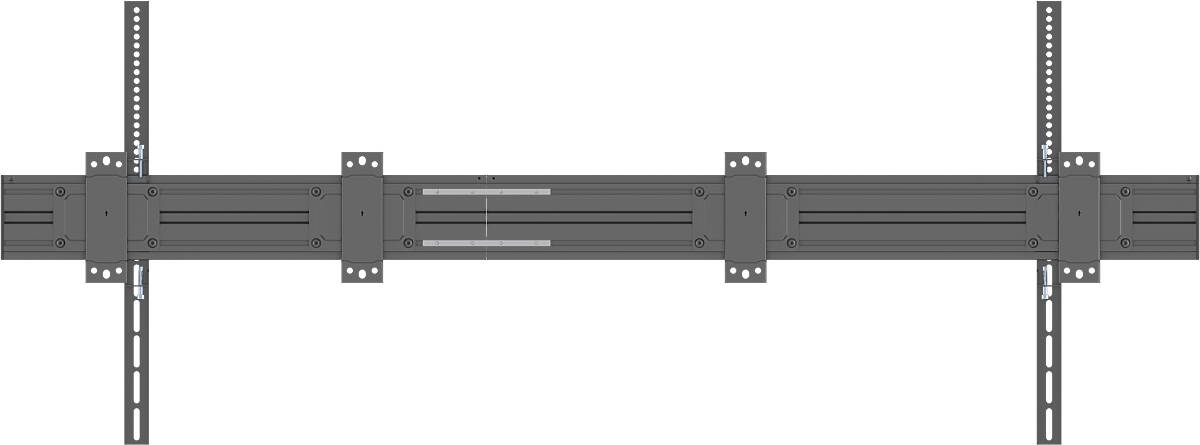

Multibrackets MBW1U 1600 M Wallmount Pro Fixed Non-tilting Monitor Wall Mount product image

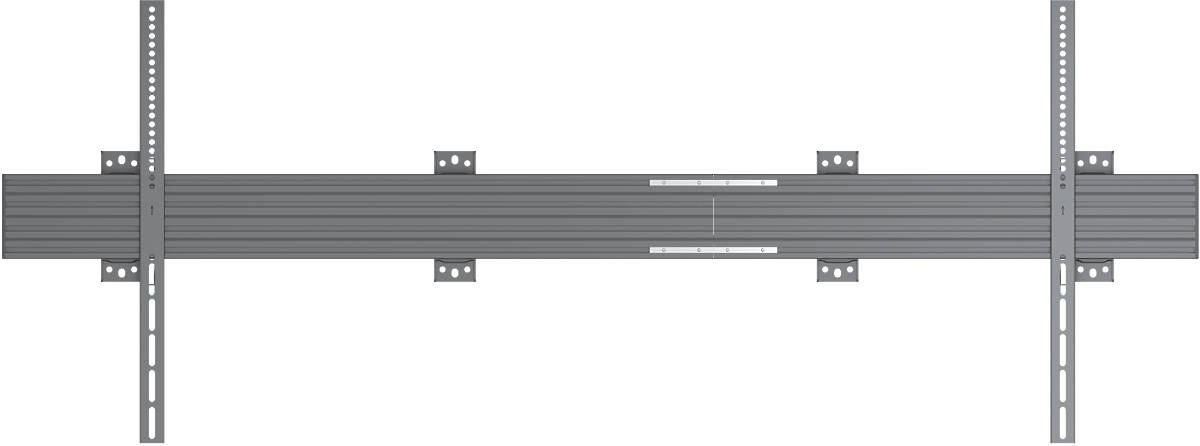

Multibrackets MBW1U 1600 M Wallmount Pro Fixed Non-tilting Monitor Wall Mount Front View product image

Multibrackets MBW1U 1600 M Wallmount Pro Fixed Non-tilting Monitor Wall Mount Top View product image

Multibrackets MBW1U 1600 (7350105219870) Description

The M Wallmount Pro MBW1U 1600 Fixed from Multibrackets is a high-capacity wall mount tailored for ultra-large professional displays from 65–140″. Engineered for VESA patterns from 100×100–1600×600 and supporting up to Max Load 100KG, this robust solution is ideal for digital signage in auditoriums, control rooms, retail spaces, and other large-scale environments.

As part of the modular Pro Series, the MBW1U 1600 Fixed offers exceptional flexibility with its precision-engineered aluminium rail system. Built-in cable management and Power Click tool-less mounting simplify installation and create a clean, professional finish. Its modularity allows for future upgrades, reconfiguration, or expansion, making it a long-term investment for AV integrators and facility managers.

Designed to fit VESA measurements 100×100, 100×200, 200×100, 150×200, 200×200, 300×200, 200×300, 400×200, 200×400, 300×300, 500×200, 300×400, 400×300, 600×200, 500×300, 400×400, 600×300, 500×400, 600×400, 400×600, 500×500, 800×400, 700×500, 1000×400, 800×600, 1000×600 and 1500×600.

Key Features

Fixed wall mount for extra-large displays sized 65–140″
Compatible with VESA patterns from 100×100–1600×600 – adapter kit included
Supports heavy-duty displays up to Max Load 100KG

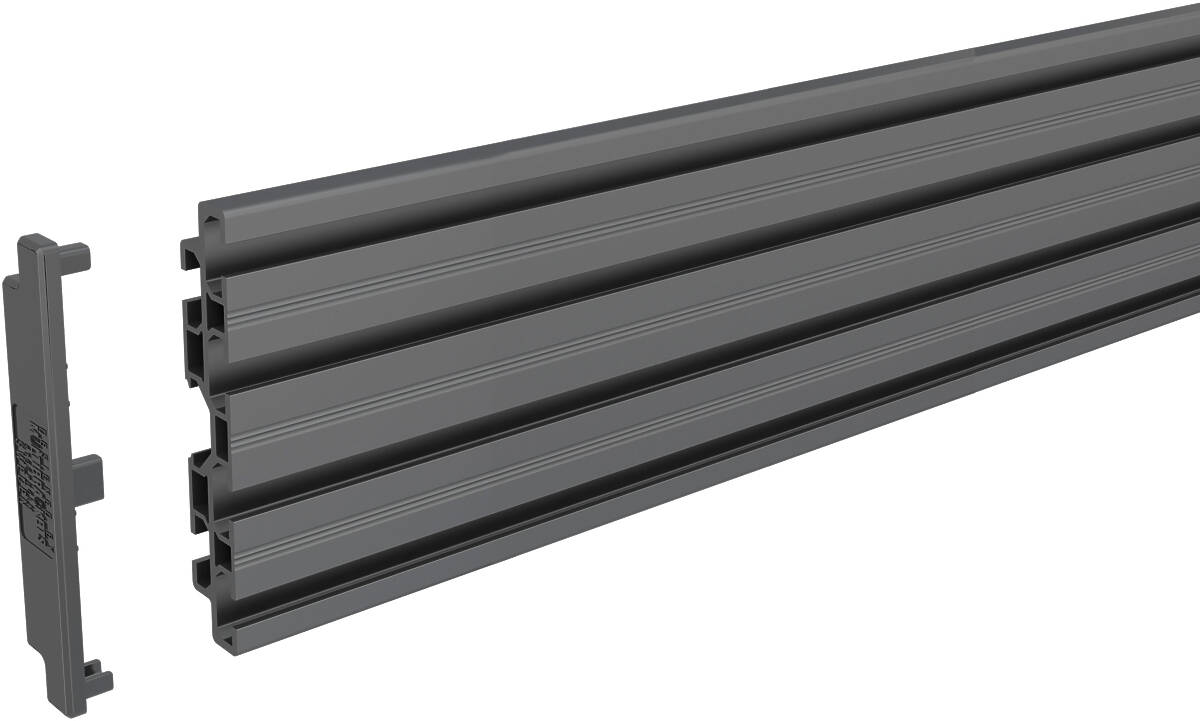

Modular aluminium rail system – extendable without cutting
Integrated cable management for a tidy, streamlined installation

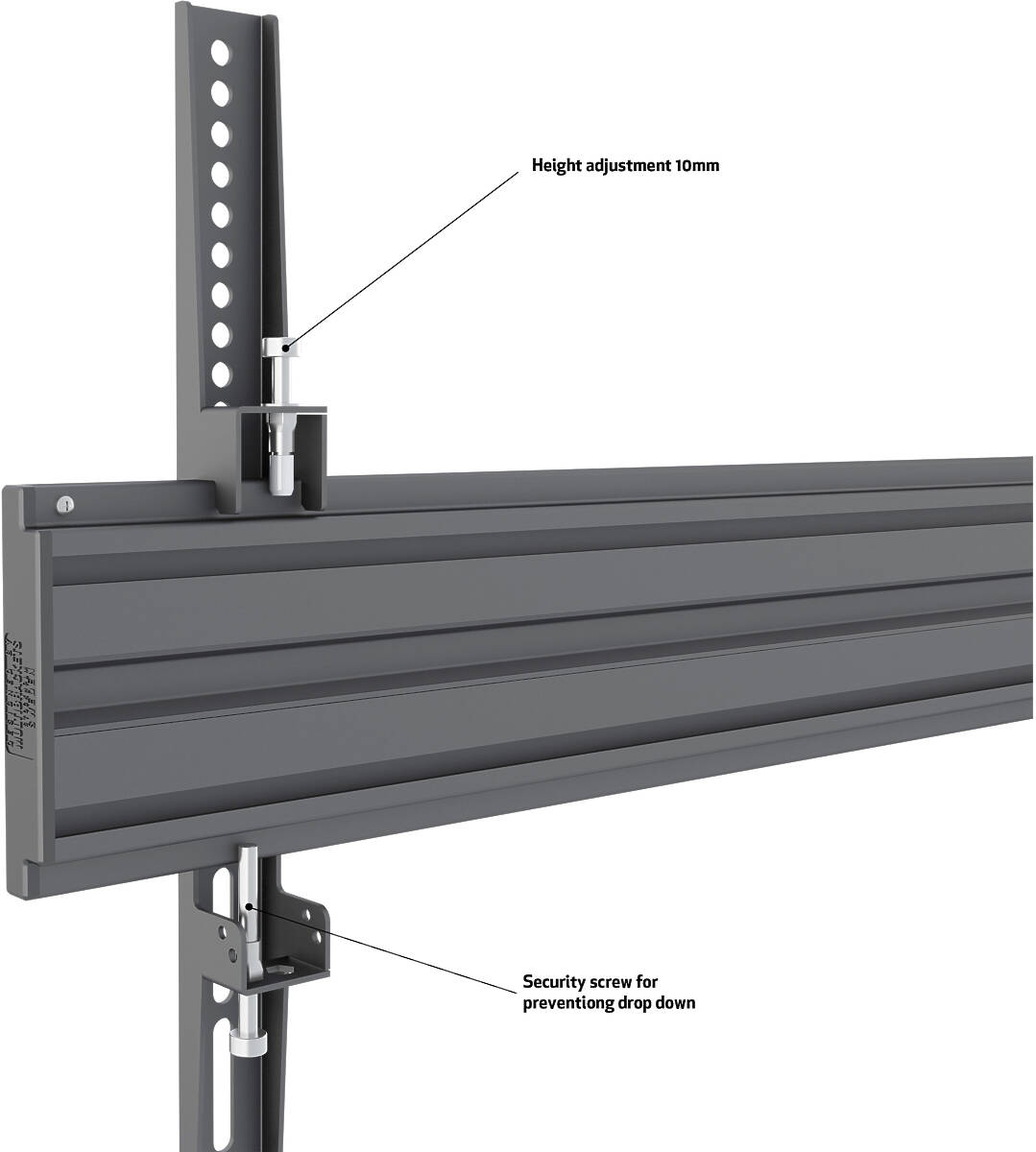

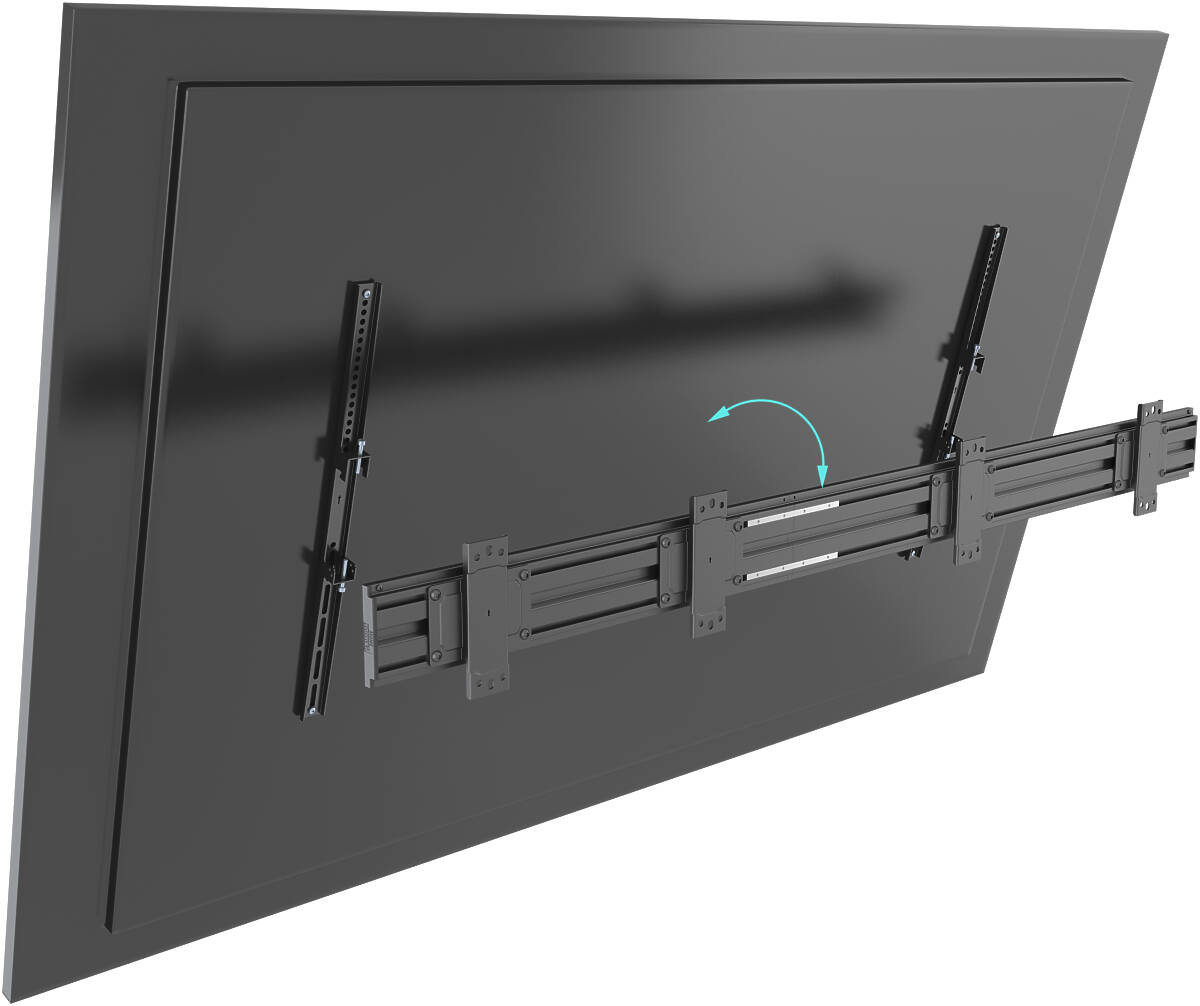

Power Click™ system enables fast and secure tool-less mounting
Supports both portrait and landscape orientation

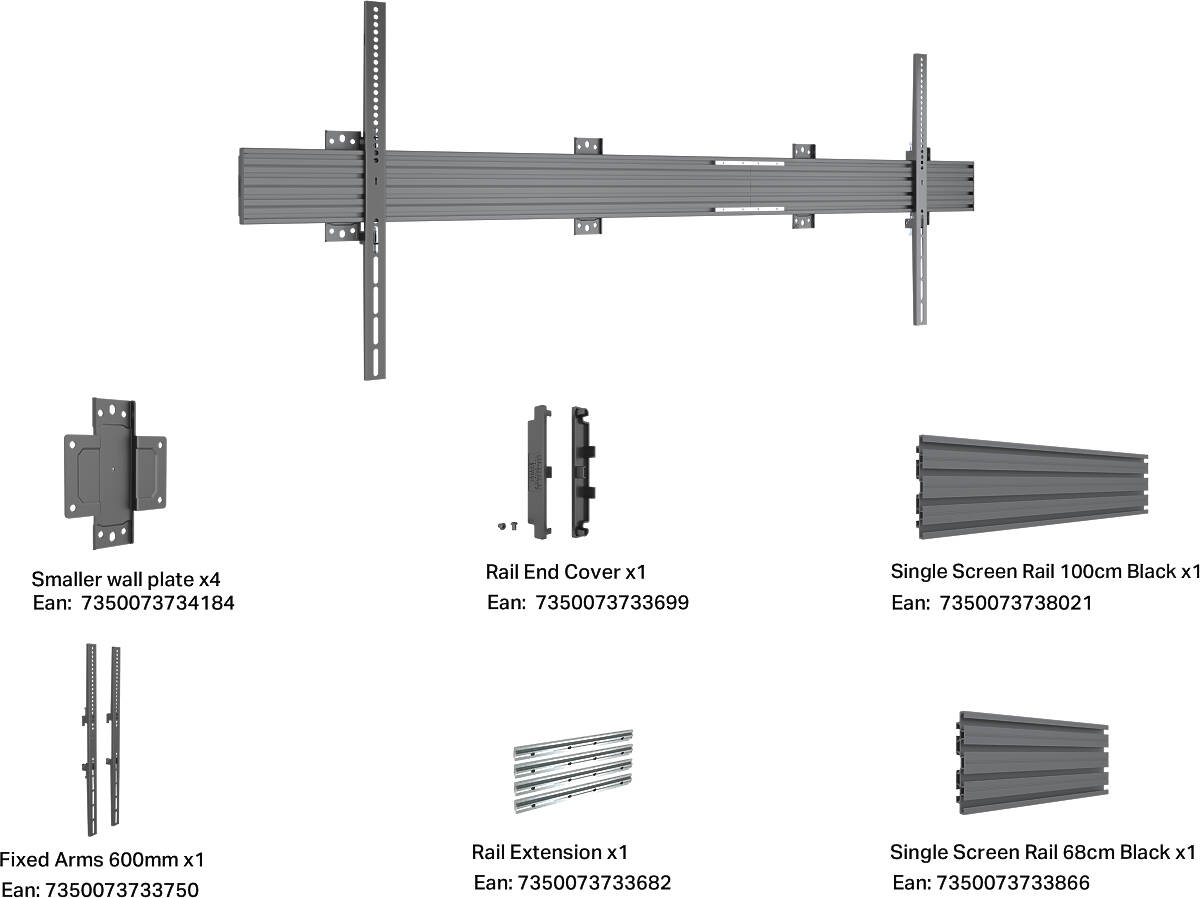

Complete hardware kit included for hassle-free setup
Designed to accomodate a single monitor
See entire Multibrackets Pro Series Wallmount Range

£304 (£364.80 inc. VAT)
Availability: 3-5 days

Multibrackets MBW1U 1600 Specifications

Product Group	Multibrackets Pro Series Wallmount
UPC / EAN	7350105219870
Monitor Count	1
Screen Size	65–140″
Screen Orientation	Landscape
Max Load	100kg
VESA Mount Points	100×100–1600×600mm
Dimensions	1690.0mm width 626.0mm height 50.0mm depth
Weight	8.30kg.
Warranty	5 Years
