Multibrackets MBSTH1UP 200x900

M Wallmount Pro Fixed Non-tilting Portrait Monitor Wall Mount
40–100″ / Max 40.00kg; VESA 100×100–200×900

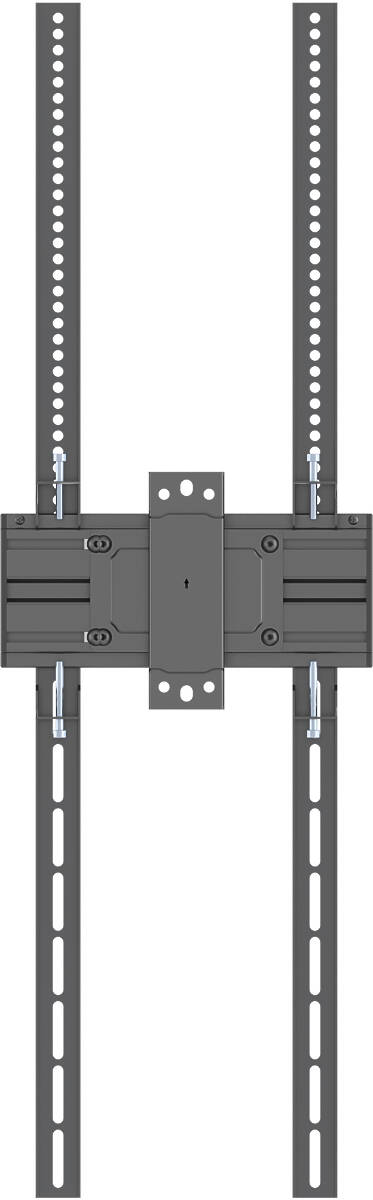

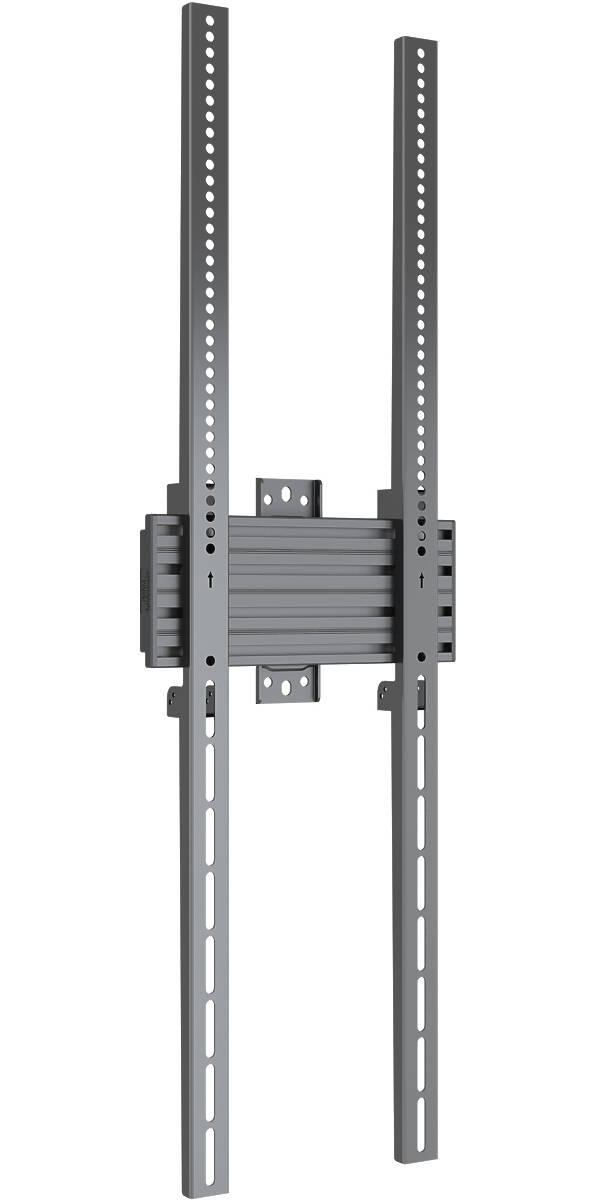

Multibrackets MBSTH1UP 200x900 M Wallmount Pro Fixed Non-tilting Portrait Monitor Wall Mount product image. Click to enlarge.

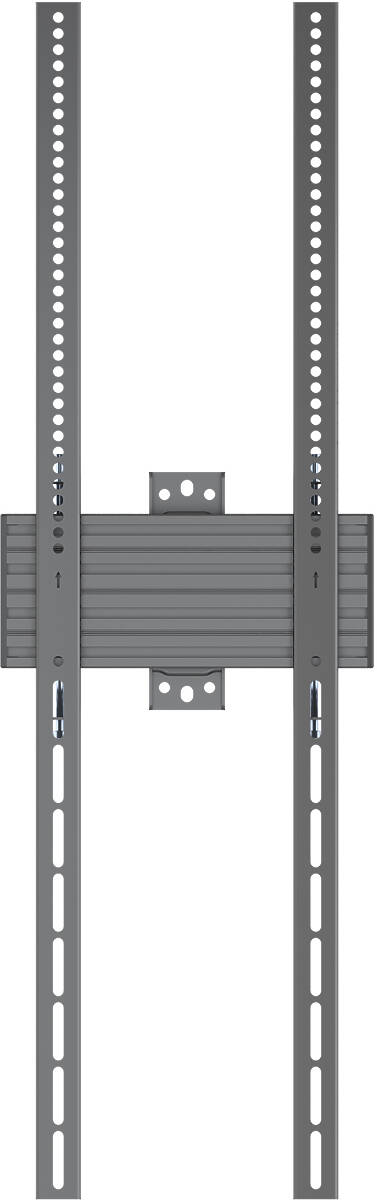

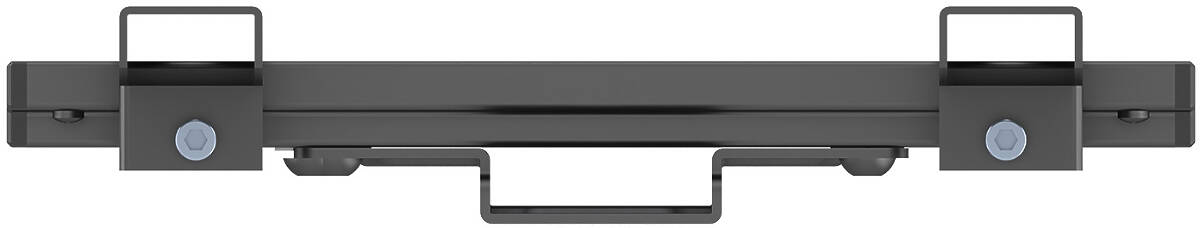

Multibrackets MBSTH1UP 200x900 M Wallmount Pro Fixed Non-tilting Portrait Monitor Wall Mount product image Multibrackets MBSTH1UP 200x900 M Wallmount Pro Fixed Non-tilting Portrait Monitor Wall Mount product image Multibrackets MBSTH1UP 200x900 M Wallmount Pro Fixed Non-tilting Portrait Monitor Wall Mount Front View product image Multibrackets MBSTH1UP 200x900 M Wallmount Pro Fixed Non-tilting Portrait Monitor Wall Mount product image Multibrackets MBSTH1UP 200x900 M Wallmount Pro Fixed Non-tilting Portrait Monitor Wall Mount product image Multibrackets MBSTH1UP 200x900 M Wallmount Pro Fixed Non-tilting Portrait Monitor Wall Mount product image Multibrackets MBSTH1UP 200x900 M Wallmount Pro Fixed Non-tilting Portrait Monitor Wall Mount product image Multibrackets MBSTH1UP 200x900 M Wallmount Pro Fixed Non-tilting Portrait Monitor Wall Mount product image Multibrackets MBSTH1UP 200x900 M Wallmount Pro Fixed Non-tilting Portrait Monitor Wall Mount product image Multibrackets MBSTH1UP 200x900 M Wallmount Pro Fixed Non-tilting Portrait Monitor Wall Mount product image Multibrackets MBSTH1UP 200x900 M Wallmount Pro Fixed Non-tilting Portrait Monitor Wall Mount Top View product image

Multibrackets MBSTH1UP 200x900 (7350105219856) Description

The M Wallmount Pro MBSTH1UP 200x900 Fixed Black from Multibrackets is a premium wall mount designed for ultra-stretch or portrait digital signage displays. Supporting VESA patterns up to and screen sizes from 40–100″, this model is ideal for high-impact installations in transportation hubs, retail, and public environments requiring extended vertical mounting options.

This mount is part of the modular Pro Series – a system created with installers in mind. Featuring strong aluminium rails and integrated cable management, it allows easy setup, maintenance, and future-proof configuration adjustments. The design reflects Scandinavian engineering with clean lines and high-quality materials, ensuring professional aesthetics in demanding commercial environments.

Designed to fit VESA measurements 100×100, 200×100, 100×200, 150×200, 200×200, 200×300 and 200×400.

Key Features

  • Fixed portrait wall mount for large displays sized 40–100″
  • Compatible with VESA patterns from 100×100–200×900 – adapter kit included
  • Supports monitors displays up to Max Load 40KG
  • Ideal for large-format and vertically oriented installations

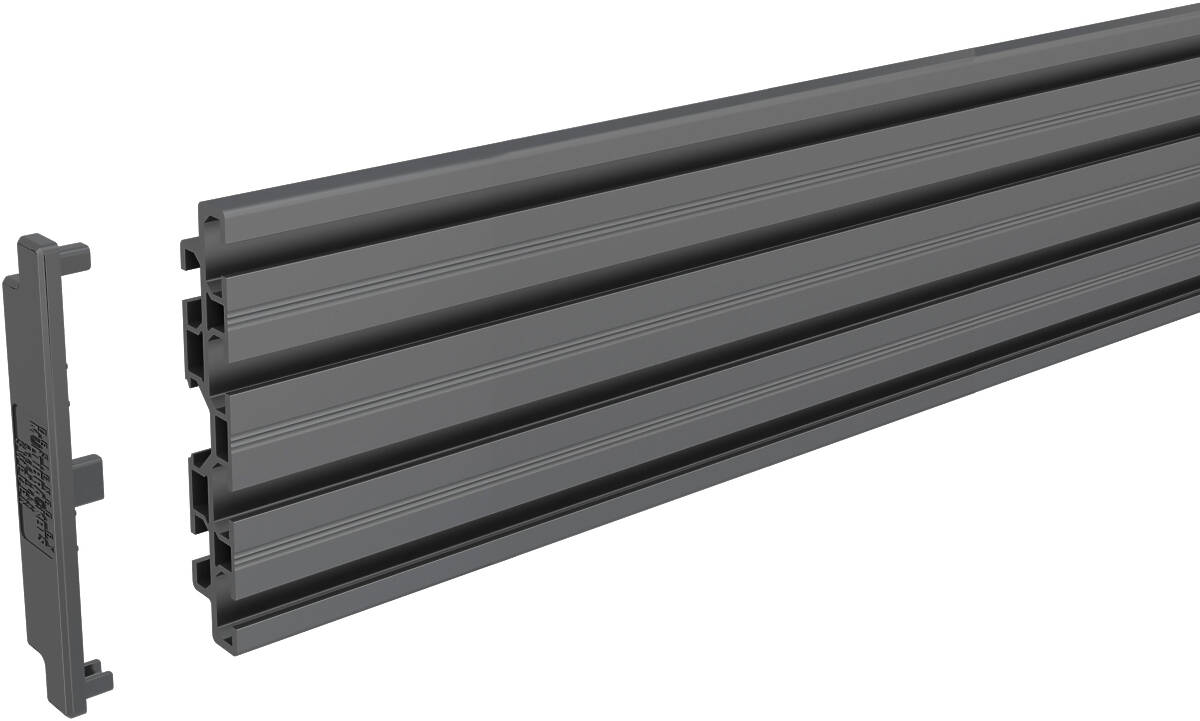

  • Modular aluminum rail system – customizable without cutting
  • Integrated cable management for tidy and professional installation

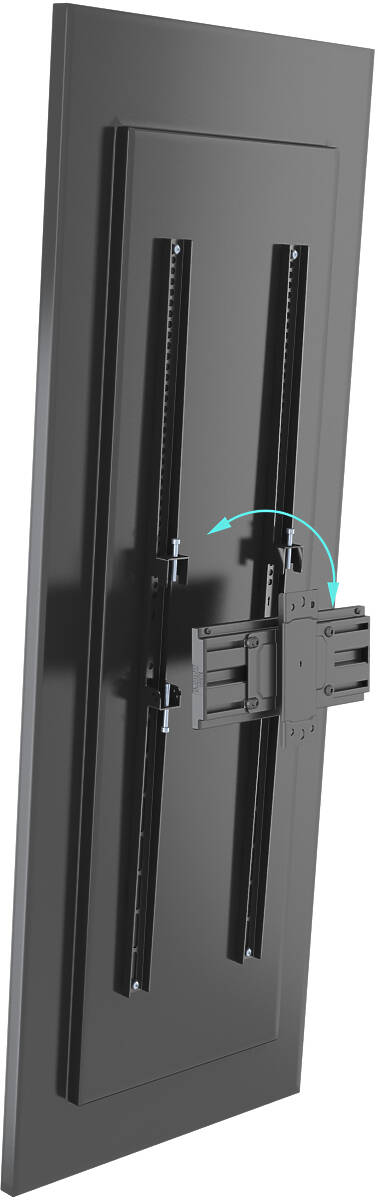

  • Power Click™ system allows tool-less, secure mounting
  • Dual wallplates for enhanced stability
  • Supports both portrait and landscape orientation

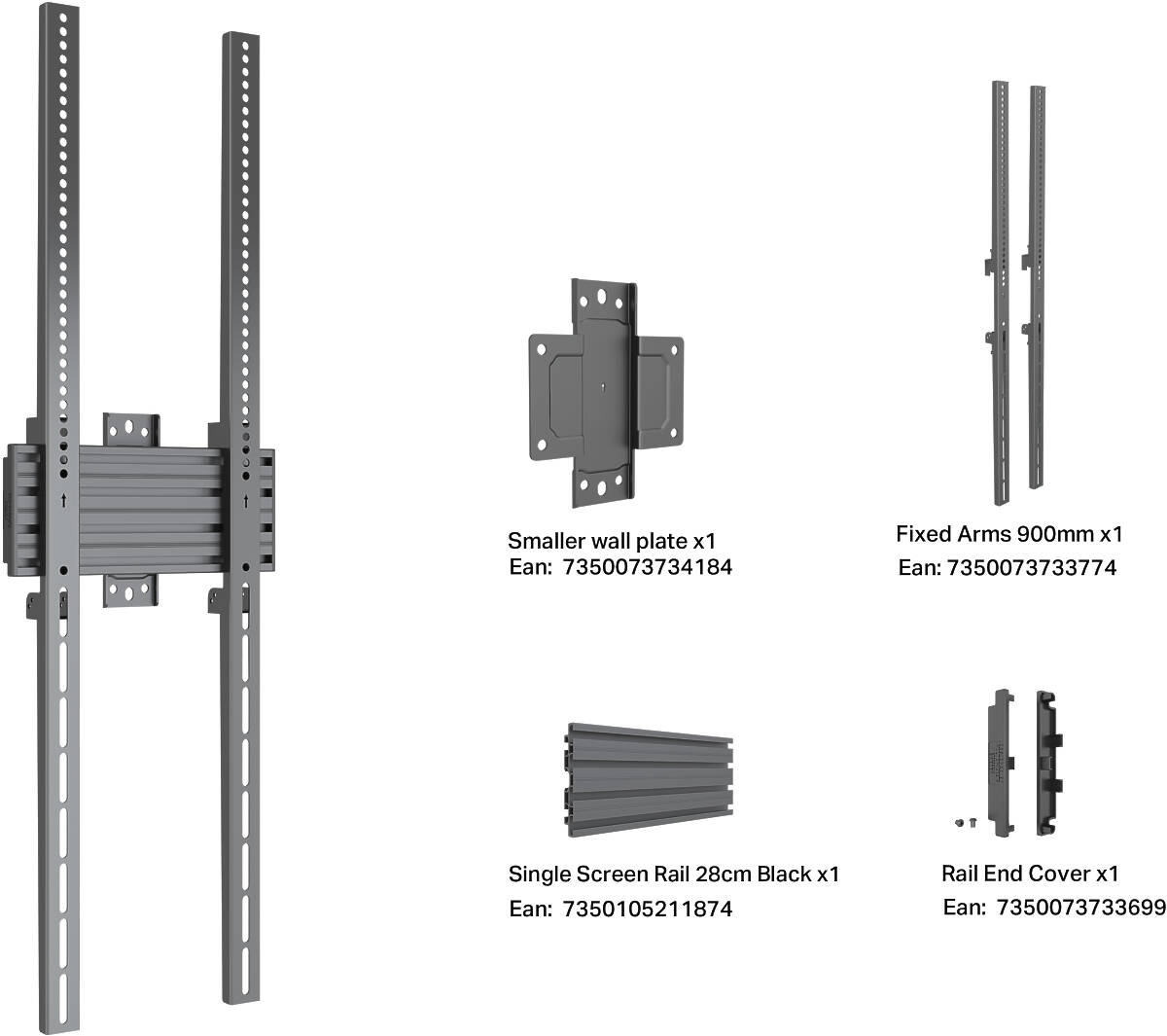

  • Complete hardware kit included for quick setup
  • Designed to accomodate a single monitor
  • See entire Multibrackets Pro Series Wallmount Range
£136 (£163.20 inc. VAT)
Availability: 3-5 days

Multibrackets MBSTH1UP 200x900 Specifications

Product Group Multibrackets Pro Series Wallmount
UPC / EAN 7350105219870
Monitor Count 1
Screen Size 40–100″
Screen Orientation Portrait
Max Load 40kg
VESA Mount Points 100×100–200×900mm

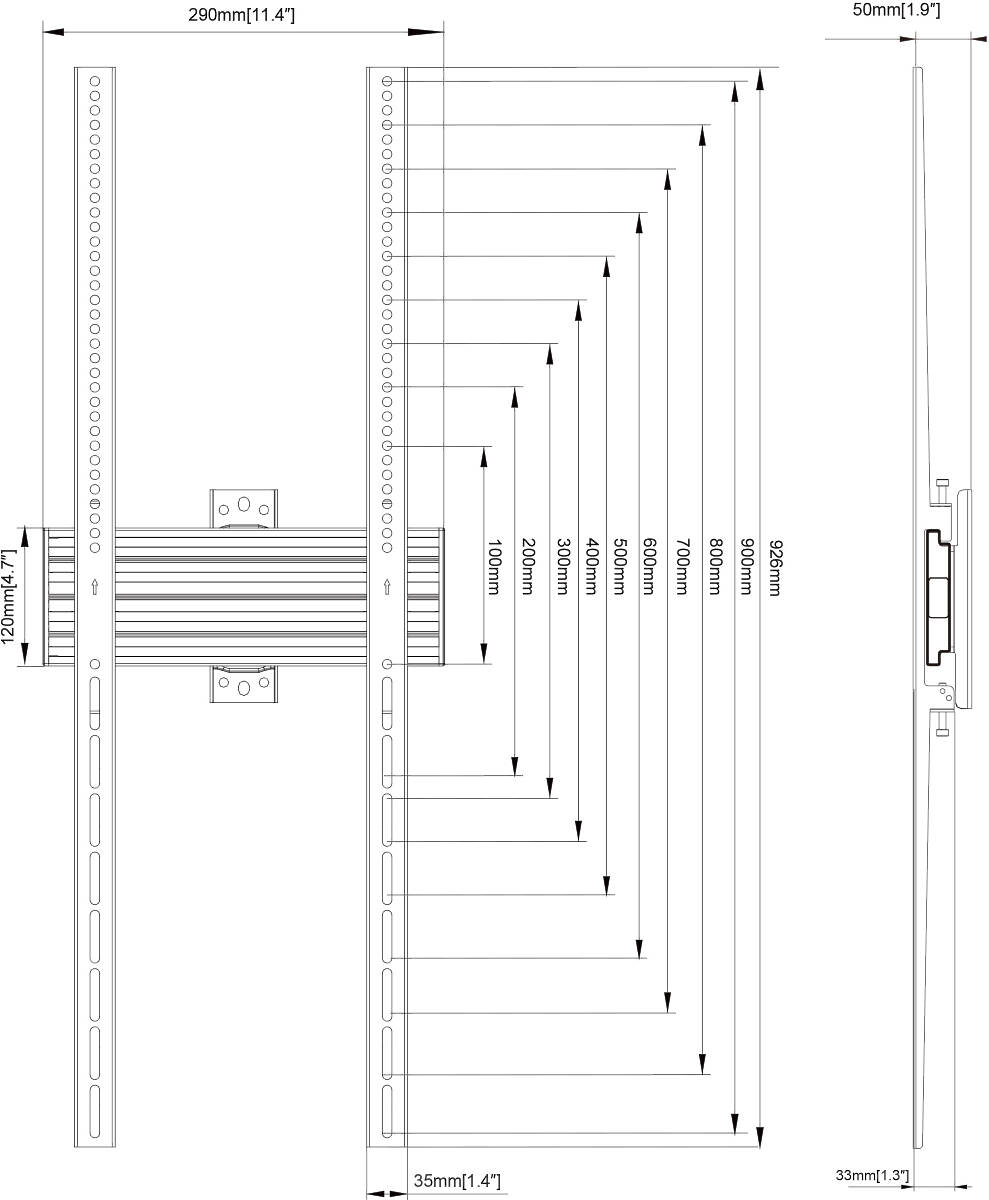

Dimensions 290.0mm width
926.0mm height
50.0mm depth
Weight 3.50kg.
Warranty 5 Years

Ideal For

  • Conference Suites
  • Control Rooms
  • Digital Signage
  • Exhibitions
  • Lobby / Reception Areas
  • Retail
  • Scheduling Displays
  • Trade Shows
  • TV Studios and Broadcast
