Sharp MultiSync UN553V LED Video Wall Monitor Monitor

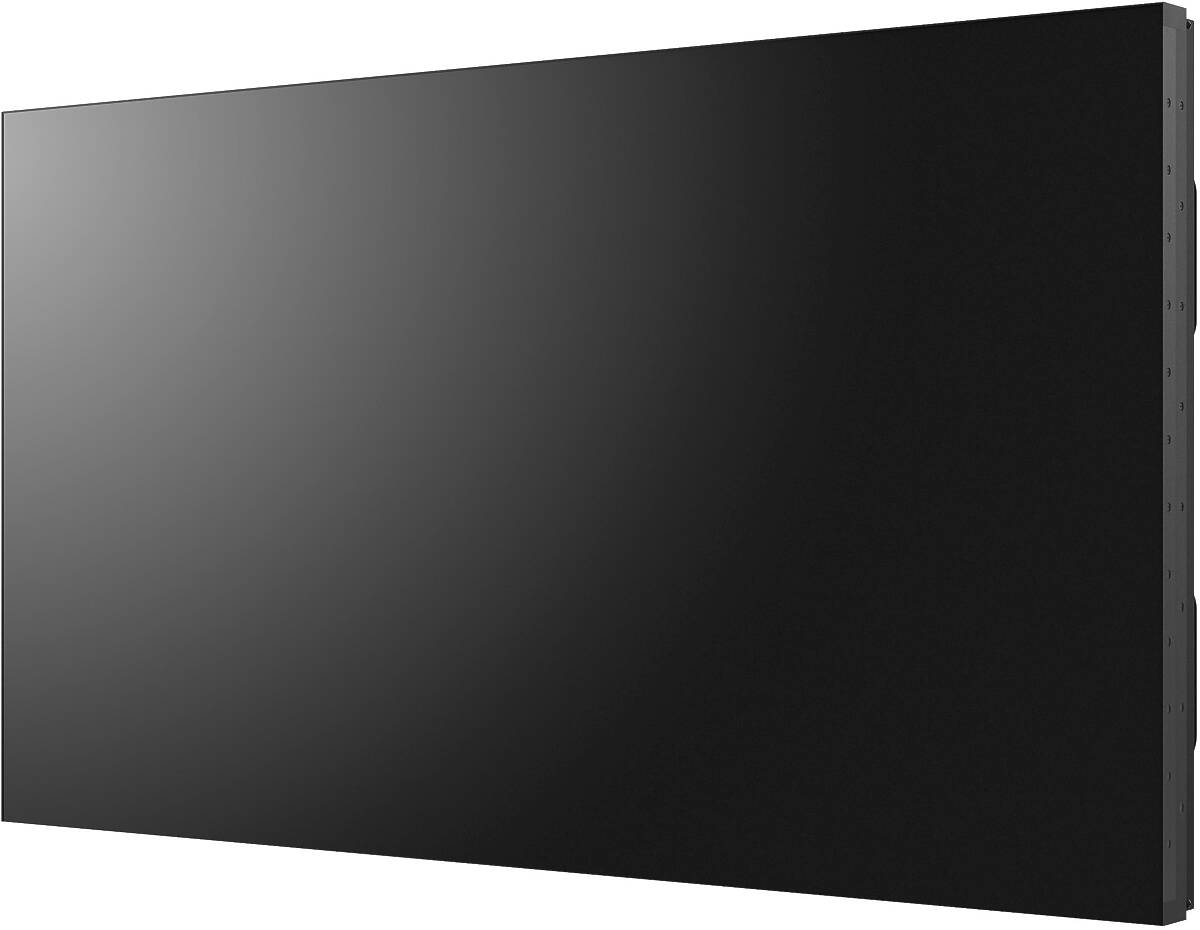

Sharp MultiSync UN553V 55 inch Large Format Display product image. Click to enlarge.

Sharp MultiSync UN553V 55 inch Large Format Display product image

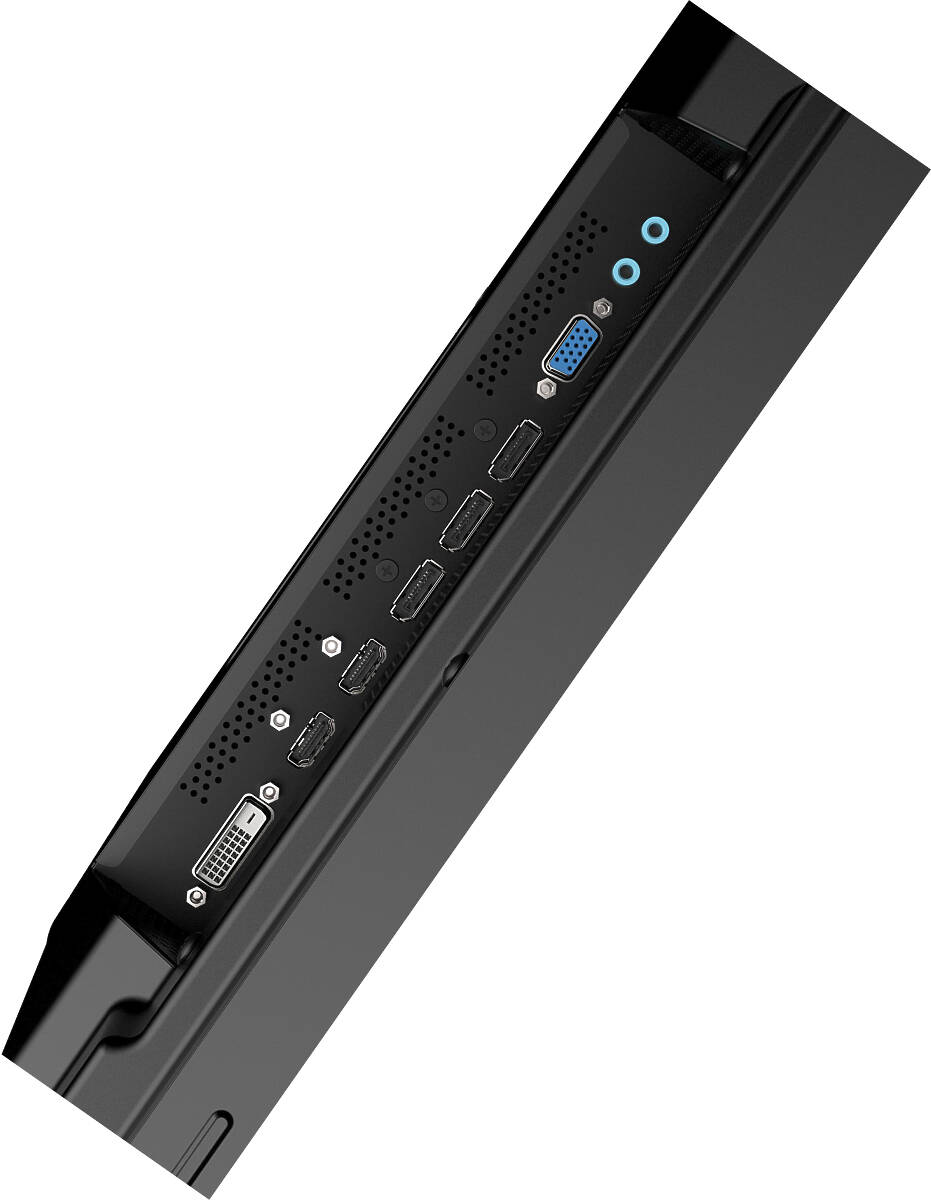

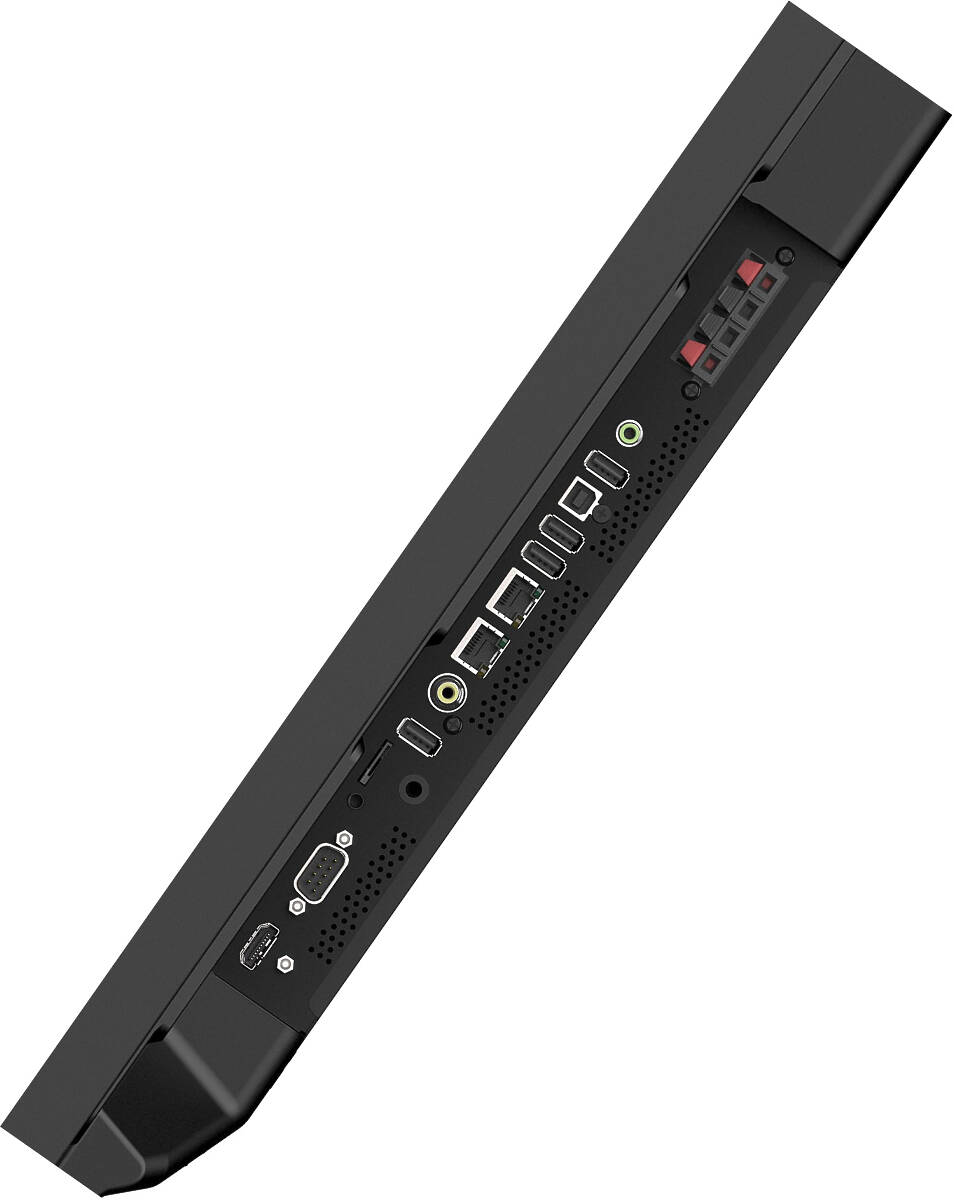

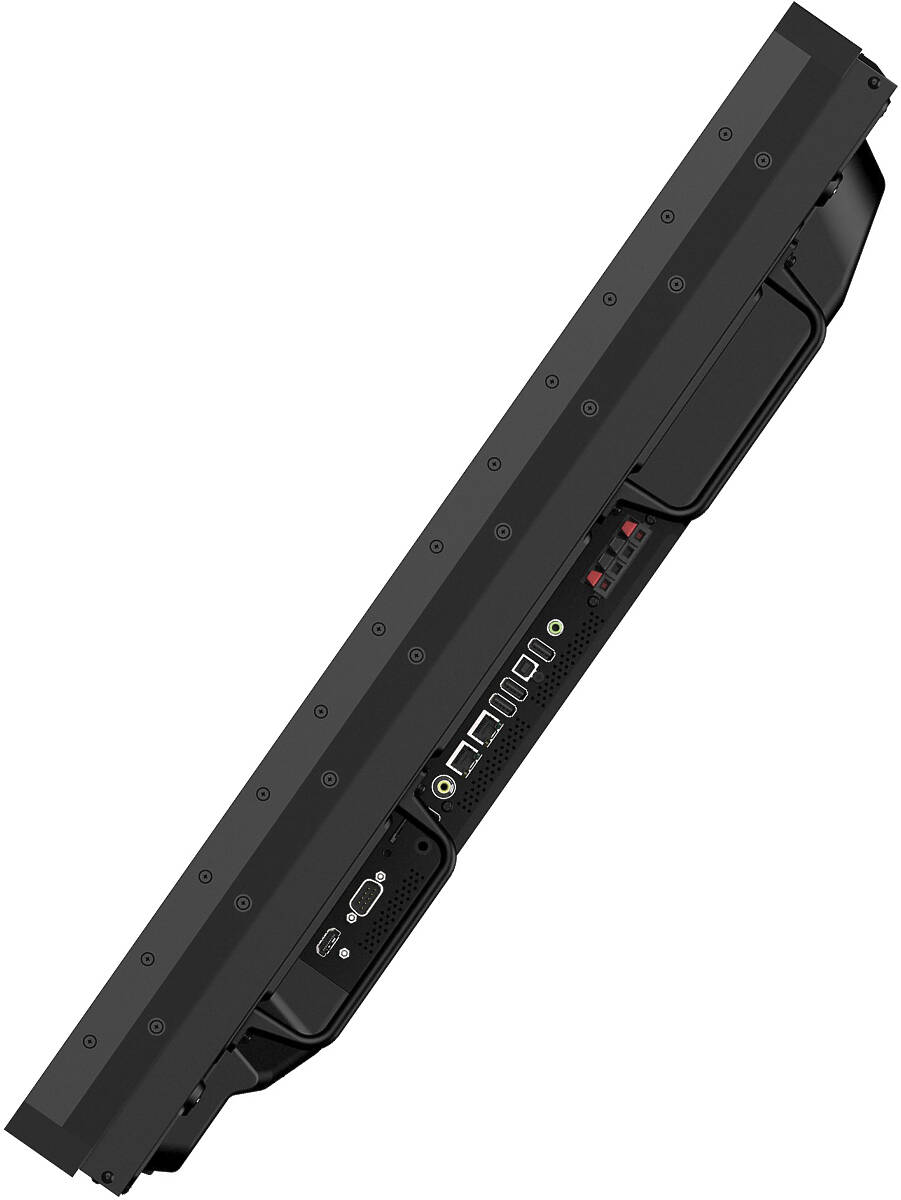

Sharp MultiSync UN553V 55 inch Large Format Display connectivity (terminals) product image

£1880 (£2256.00 inc. VAT)
Availability: Please Call

Sharp MultiSync UN553V Suggested Applications

Sports Halls and Gyms

Exhibitions

Museums and Art Galleries

Key Features

55" Diagonal S-IPS with Direct LED backlights Panel
Easy installation - effortlessly set up you wall display with Auto TileMatrix and out-of-the-box calibrations. Save time by plugging in ready-to-use image presets for predefined application scenarios.
Enhanced imaging performance - advanced settings of all relevant visual parameters allow full control of brightness, colour, gamma and uniformity via the SpectraView Engine for precise, natural images.
Secure Reliability and Longevity of Video Walls - unique NEC heat management system enables the user to monitor and control the heat inside the display.
Lifelike and consistent colour - expect colour reproduction that feels true to life with IPS panel technology, the top choice when it comes to colour consistency. The S-IPS panel ensures that perfect visibility is maintained in landscape and portrait mode and at extreme viewing angles as viewers pass by.
Smart media integration - seamlessly integrate the media source of your choice into the video wall display. Use the wide range of NECs OPS Slot-in PCs, and Raspberry Pi compute modules, for content feed and computing.

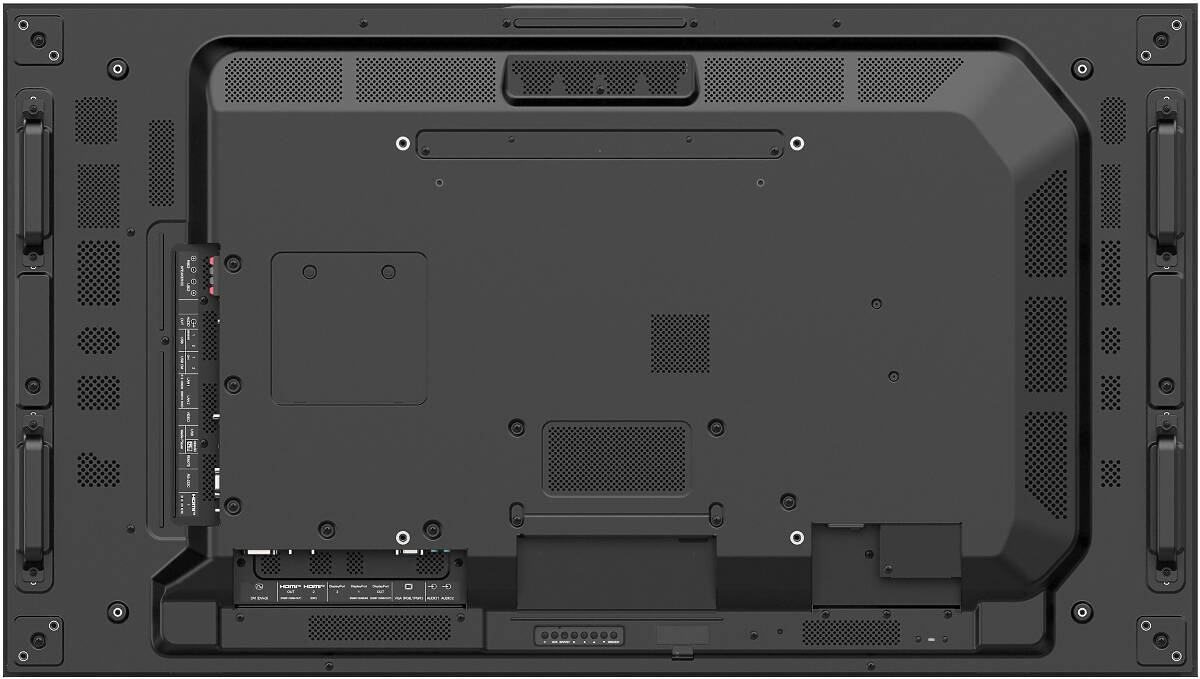

VESA 400×400; M6 mounting points
Designed for 24/7 use - Warranty covers use all day, every day
USB Media Player - Play JPeG images, MP3 audio or MPG video from a USB memory stick
Display Daisy Chaining - Connect monitor output to next monitor input to duplicate display
DICOM Support - For accurate medical imaging
Landscape/Portrait Mode - The MultiSync UN553V can be installed in either standard landscape or portrait orientation
OPS Slot - Allows expansion modules such as PC boards, HD-SDI interfaces to be added
LAN Control/Monitoring - The monitor can be controlled through your local area network
Integrated Media Player - Content can be transfered to the display via USB memory stick or network
SD Card Slot - For media transfer

Seamless video walls to amplify your brand

Scale up your visual impact with the modular Sharp MultiSync UN Series, purpose-designed with ultra-narrow bezels to create high-resolution video walls with minimal image interruption.

Advanced intelligent features and imaging performance powered by SpectraViewTM ensure precise and consistent visualisation across the entire wall, creating the impression of a single, continuous surface for clear and engaging content presentation.

Engineered for 24/7 operation in public spaces, the series combines robust metal construction with advanced thermal management to deliver reliable, long-lasting performance.

The 55-inch Sharp MultiSync UN553V draws on its heritage of engineering excellence to deliver a premium experience yet at remarkable value. Positioned to fulfil the requirements of demanding signage applications, it is suited for retail environments, digital-out-of-home media, leisure and museum venues, as well as rental and staging scenarios.

Mounting Options & Accessories

Multibrackets Video Wall Mount 0513

Multibrackets Pro Series Wallmount MBW2U Micro Adjustable

Multibrackets Pro Series Wallmount MBW2UHD Micro Adjustable

Multibrackets Pro Series Wallmount MBW5U Micro Adjustable

Unicol ScreenRail MBC346

Unicol ScreenRail MBC350

Unicol ScreenRail MBC355

Unicol ScreenRail MBC446

Unicol ScreenRail MBC450

Sharp MultiSync UN553V Summary
Manufacturers Part No.	60006189
Model	Sharp MultiSync UN553V
EAN / UPC	4550556178075
Display Type	S-IPS with Direct LED backlights
Features	Designed for 24/7 use USB Media Player Display Daisy Chaining DICOM Support Landscape/Portrait Mode OPS Slot LAN Control/Monitoring Integrated Media Player SD Card Slot
Diagonal	55"
Viewable Area	121 * 68cm
Native Resolution	1920×1080
Brightness	500cd/m²
Contrast	3,500:1
Pixel Pitch	0.630mm
Colours	16.77
Horizontal Frequency	26–134KHz
Vertical Frequency	23–86Hz
Connectivity
VGA / 15pin d-sub	1
DVI	1 (HDCP Compliant)
HDMI	2
DisplayPort	2
Audio in	2
USB	5
RS-232	1
General Specifications
Speakers	Optional Speakers (15 W + 15 W)
Warranty	3 years warranty incl. backlight; optional 4. + 5. year warranty extension
Monitor Dimensions	121.1 × 68.1 × 9.9cm (w×h×d)
Weight	25.8kg.
VESA	400×400; M6
Power Supply	TBC
Consumption	165420w
Connectivity Details
Digital Video Inputs	1 x DVI-D (with HDCP); 1 x OPS Slot; 2 x DisplayPort (with HDCP); 2 x HDMI (with HDCP)
Analogue Video Inputs	1 x VGA; Composite (RCA)
Digital Audio Inputs	2 x DisplayPort; 2 x HDMI
Analogue Audio Inputs	2 x 3,5 mm jack
Control Inputs	1 x Remote Control (3.5 mm jack); 1 x RS232; 2 x LAN 100Mbit
Control Output	LAN 100Mbit
Data Inputs	1 x microSD (MediaPlayer); 1 x USB 1.0 (Downstream); 1 x USB 1.0 (MediaPlayer); 1 x USB 2.0 (Upstream); 2 x USB 1.0 (Compute Module, 1 x 5V/2A powered)
Digital Video Output	1 x DisplayPort (loop through: DisplayPort, OPS slot-in PC)
	1 x HDMI (loop through: HDMI, OPS slot-in PC, Mediaplayer)
Analogue Audio Output	1 x 3,5 mm jack
Computer Module Slot	Raspberry Pi Compute Module 1 and 3
Media Player / Embedded Computer
OPS Slot	Intel® Atom, Celeron and Core i3, i5, i7 Slot-in PCs
Image Formats	JPG (baseline, progressive, RGB, CMYK); max. resolution 5000 x 5000; PNG (interlace, alpha channel); max. resolution 4000 x 4000
Video Formats	MP4 / MOV / FLV (video H.264, audio MP3, AAC); max. resolution 1080p at 30 Hz, 1080i at 60 Hz; MPG (video mpeg1/2, audio mpeg audio layer2/3, AAC-LC); MP @ ML, MP @ HL; WMV (video H.264, wmv advanced L3, wmv simple / main, audio mp3 wmv std); max. resolution 1080p at 30 Hz, 1080i at 60 Hz
Audio Formats	MP3 (MP3); max. bit-rate 320 kBit/s; WAV (LPCM); max. 48 kHz sampling
Other Features
Special Features	Auto ID assignment; Auto tiling function; Automatic Alarm E-Mails; DICOM Simulation; Frame Comp; HTTP Server; Image flip; Intelligent Wireless Data (based on NFC); NaViSet Administrator 2; PJLink Support; TileMatrix; USB Media Player; User input priority definition; User readable log function
Temperature Sensor	Integrated, 3 sensors, triggered actions programmable
Bezel Width	1.1mm bottom/right; 1.8 top/left
Orientation	Landscape; Portrait
Operating Temperature	+0 to +40°c
Operating Humidity	20 to 80%
Storage Temperature	-20 to 60°c
Storage Humidity	10 to 90%
Power Saving Mode	< 0.5; < 2 (Networked Standby) Watts
Energy Efficiency	Carbon savings meter; Energy consumption: 209 kWh/1000 h; Energy efficiency class: G; Human Sensor; LED backlight
Safety & Ergonomics	BSMI; CE; EAC; EMC Class B; FCC; PSB; RCM; REACH; RoHS; SASO; TÜV GS; TÜV S; UL/C-UL; VCCI
Operating Hours	24/7
Included Accessories
Accessories	Display; DisplayPort Cable; HDMI Cable; LAN cable (RJ45); Power Cable
