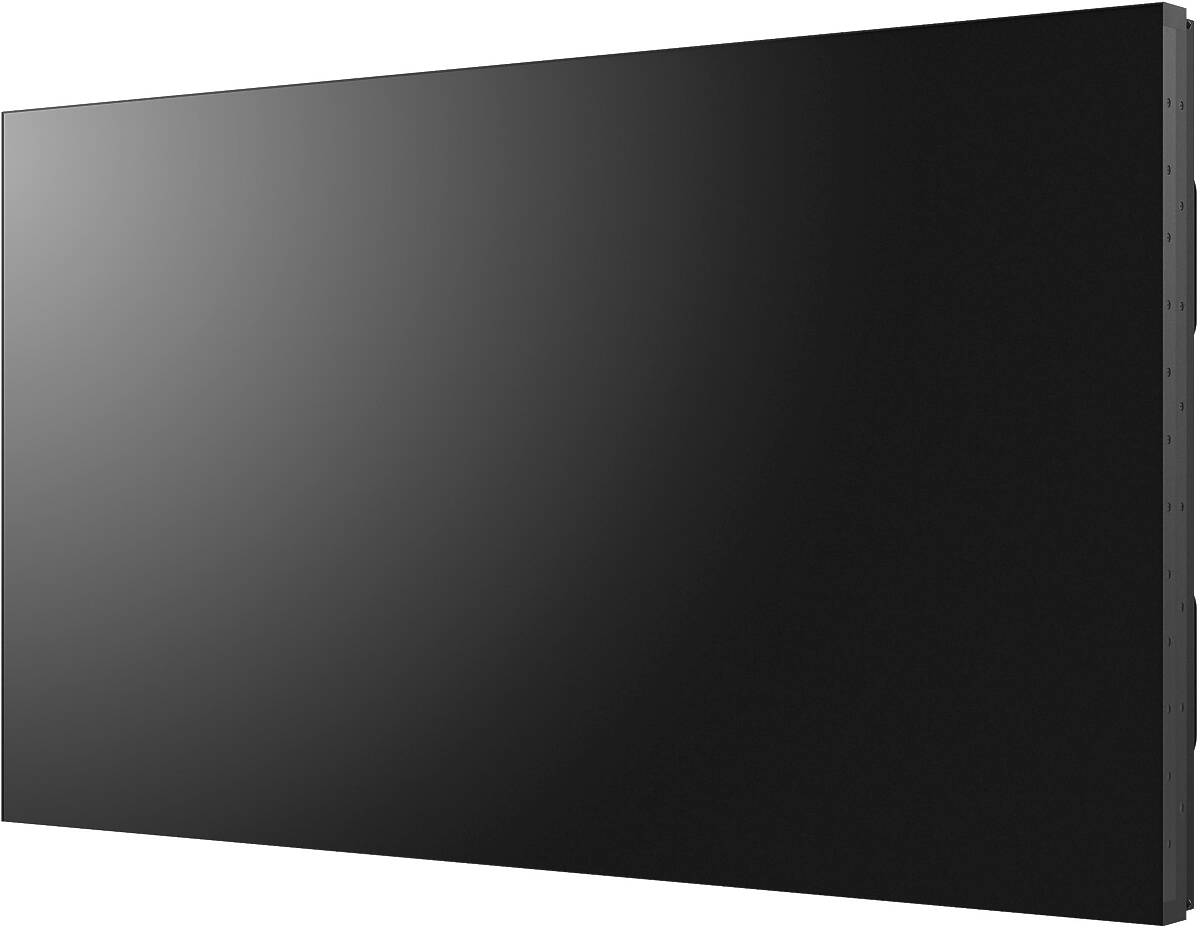

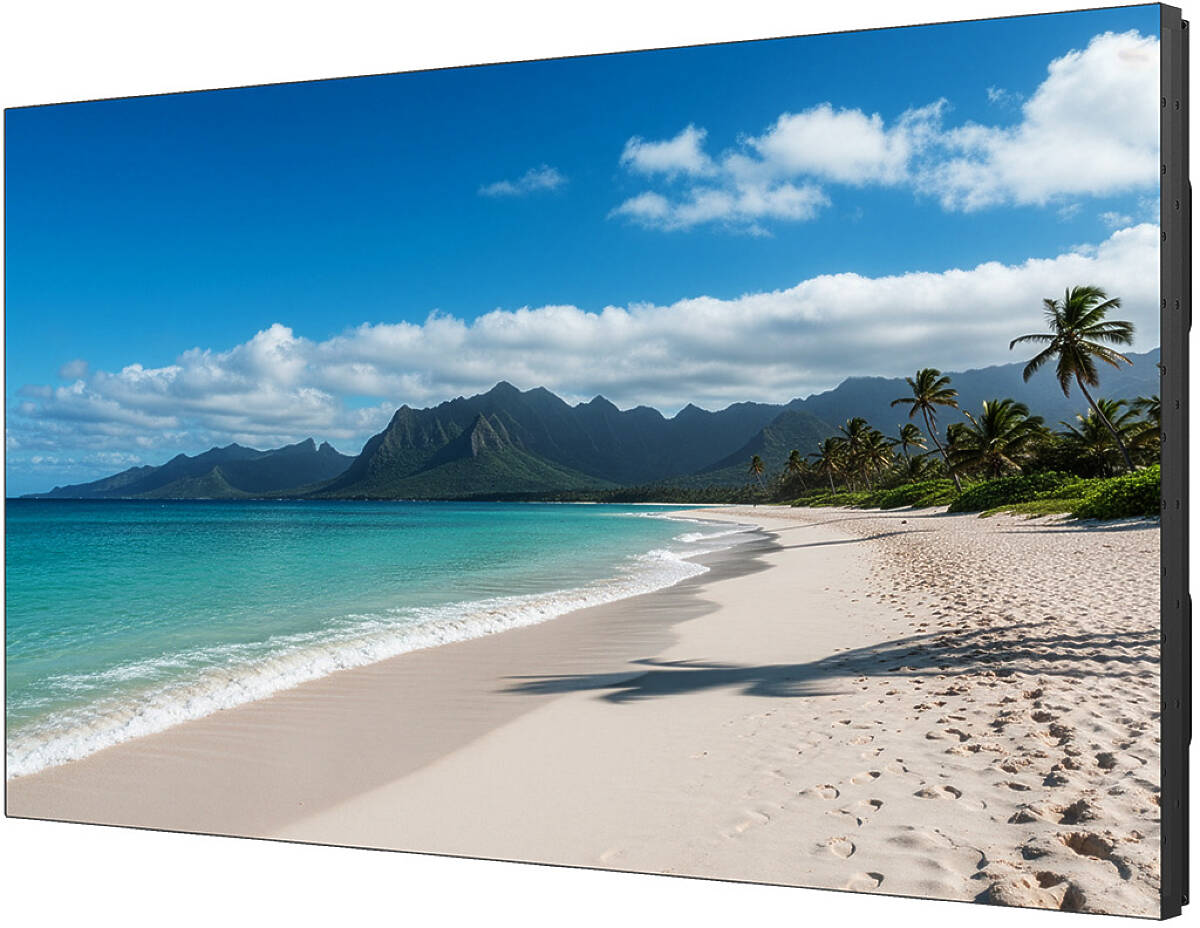

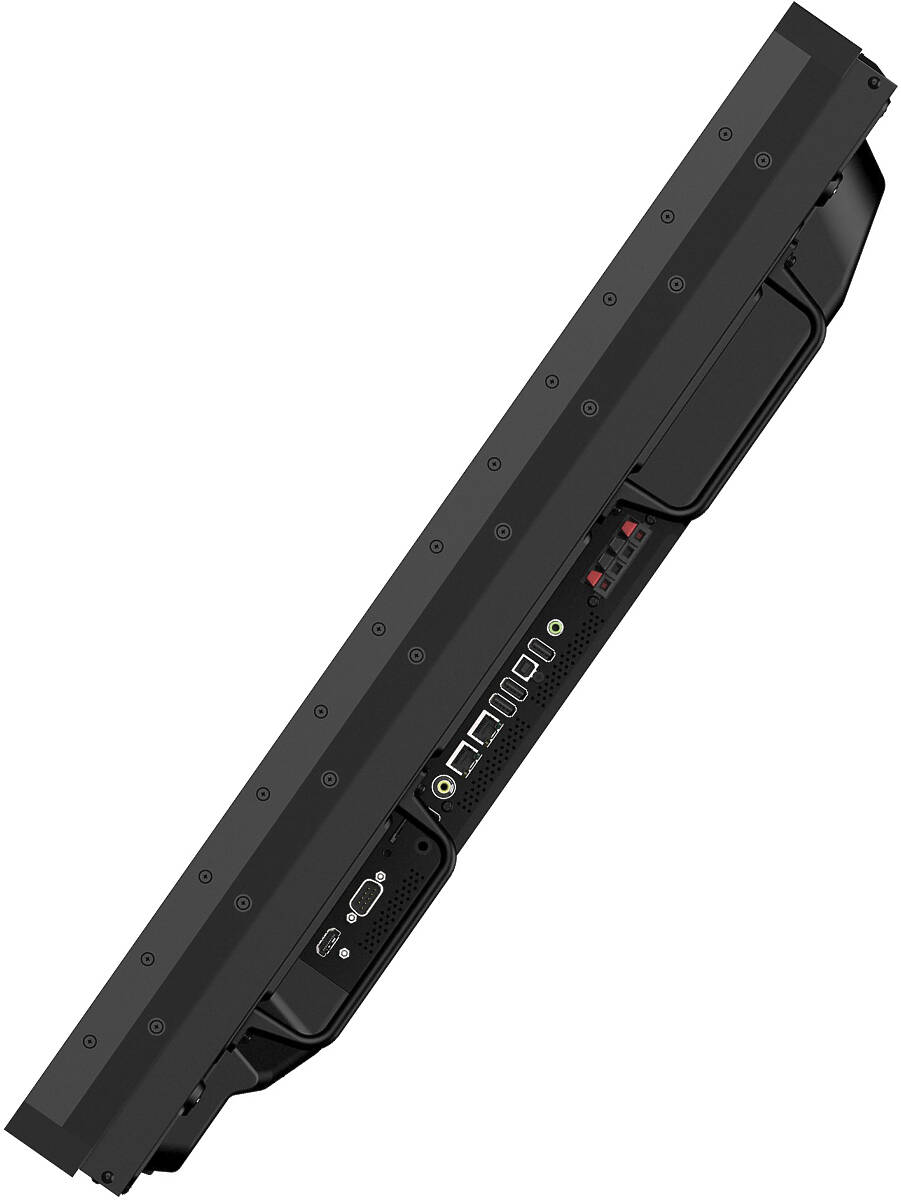

Sharp MultiSync UN553S LED Video Wall Monitor Monitor
£3754 (£4504.80 inc. VAT)
Availability: Please Call
Availability: Please Call
Sharp MultiSync UN553S Suggested Applications
Key Features
- 55" Diagonal S-IPS with Direct LED backlights Panel
- Easy installation - effortlessly set up you wall display with Auto TileMatrix and out-of-the-box calibrations. Save time by plugging in ready-to-use image presets for predefined application scenarios.
- Enhanced imaging performance - advanced settings of all relevant visual parameters allow full control of brightness, colour, gamma and uniformity via the SpectraView Engine for precise, natural images.
- Secure Reliability and Longevity of Video Walls - unique NEC heat management system enables the user to monitor and control the heat inside the display.
- Lifelike and consistent colour - expect colour reproduction that feels true to life with IPS panel technology, the top choice when it comes to colour consistency. The S-IPS panel ensures that perfect visibility is maintained in landscape and portrait mode and at extreme viewing angles as viewers pass by.
- Smart media integration - seamlessly integrate the media source of your choice into the video wall display. Use the wide range of NECs OPS Slot-in PCs, and Raspberry Pi compute modules, for content feed and computing.
- VESA 400×400; M6 mounting points
- Designed for 24/7 use - Warranty covers use all day, every day
- USB Media Player - Play JPeG images, MP3 audio or MPG video from a USB memory stick
- Display Daisy Chaining - Connect monitor output to next monitor input to duplicate display
- DICOM Support - For accurate medical imaging
- Landscape/Portrait Mode - The MultiSync UN553S can be installed in either standard landscape or portrait orientation
- OPS Slot - Allows expansion modules such as PC boards, HD-SDI interfaces to be added
- LAN Control/Monitoring - The monitor can be controlled through your local area network
- Integrated Media Player - Content can be transfered to the display via USB memory stick or network
- SD Card Slot - For media transfer
Seamless video walls to amplify your brand
Scale up your visual impact with the modular Sharp MultiSync UN Series, purpose-designed with ultra-narrow bezels to create high-resolution video walls with minimal image interruption.
Advanced intelligent features and imaging performance powered by SpectraViewTM ensure precise and consistent visualisation across the entire wall, creating the impression of a single, continuous surface for clear and engaging content presentation.
Engineered for 24/7 operation in public spaces, the series combines robust metal construction with advanced thermal management to deliver reliable, long-lasting performance.
The 55-inch Sharp MultiSync UN553V draws on its heritage of engineering excellence to deliver a premium experience yet at remarkable value. Positioned to fulfil the requirements of demanding signage applications, it is suited for retail environments, digital-out-of-home media, leisure and museum venues, as well as rental and staging scenarios.
Sharp MultiSync UN553S Summary |
|
| Manufacturers Part No. | 60006188 |
| Model | Sharp MultiSync UN553S |
| Display Type | S-IPS with Direct LED backlights |
| Features | Designed for 24/7 use USB Media Player Display Daisy Chaining DICOM Support Landscape/Portrait Mode OPS Slot LAN Control/Monitoring Integrated Media Player SD Card Slot |
| Diagonal | 55" |
| Viewable Area | 121 * 68cm |
| Native Resolution | 1920×1080 |
| Brightness | 700cd/m2 |
| Contrast | 3,500:1 |
| Pixel Pitch | 0.630mm |
| Colours | 16.77 |
| Horizontal Frequency | 26–134KHz |
| Vertical Frequency | 23–86Hz |

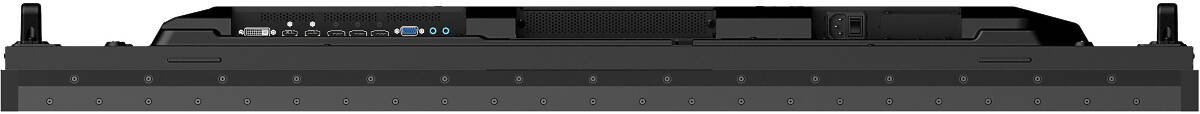

Connectivity |
|
| VGA / 15pin d-sub | 1 |
| DVI | 1 (HDCP Compliant) |
| HDMI | 2 |
| DisplayPort | 2 |
| Audio in | 2 |
| USB | 5 |
| RS-232 | 1 |
General Specifications |
|
| Speakers | Optional Speakers (15 W + 15 W) |
| Warranty | 3 years warranty incl. backlight; optional 4. + 5. year warranty extension |
| Monitor Dimensions | 121.1 × 68.1 × 9.9cm (w×h×d) |
| Weight | 25.8kg. |

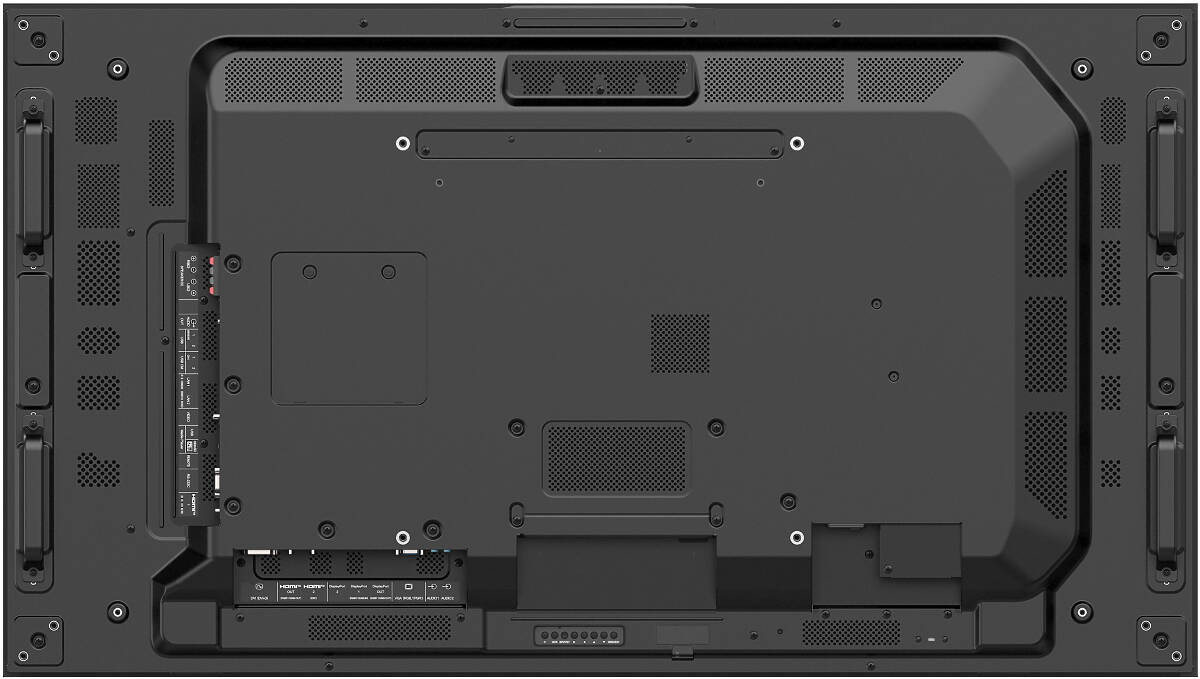

| VESA | 400×400; M6 |
| Power Supply | TBC |
| Consumption | 165420w |

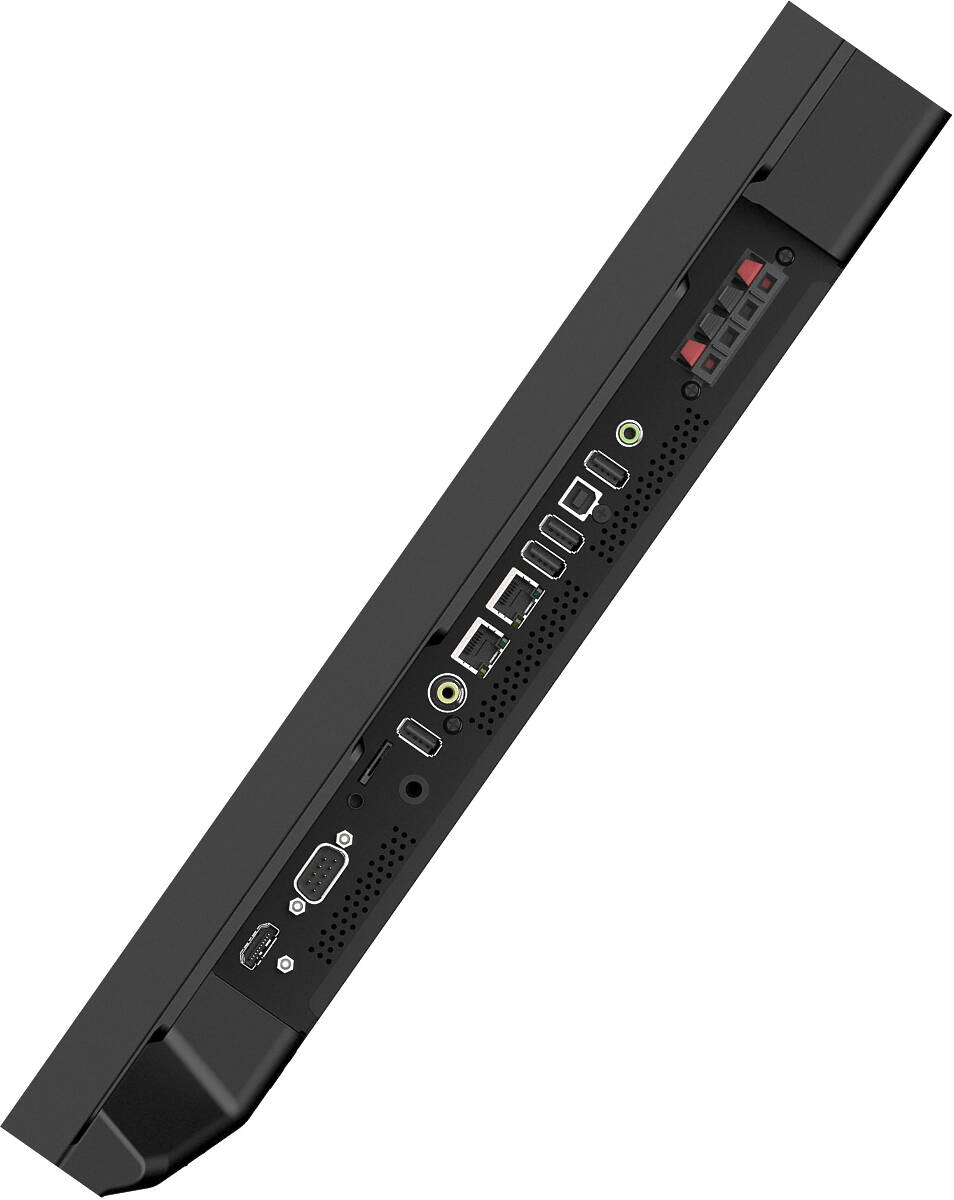

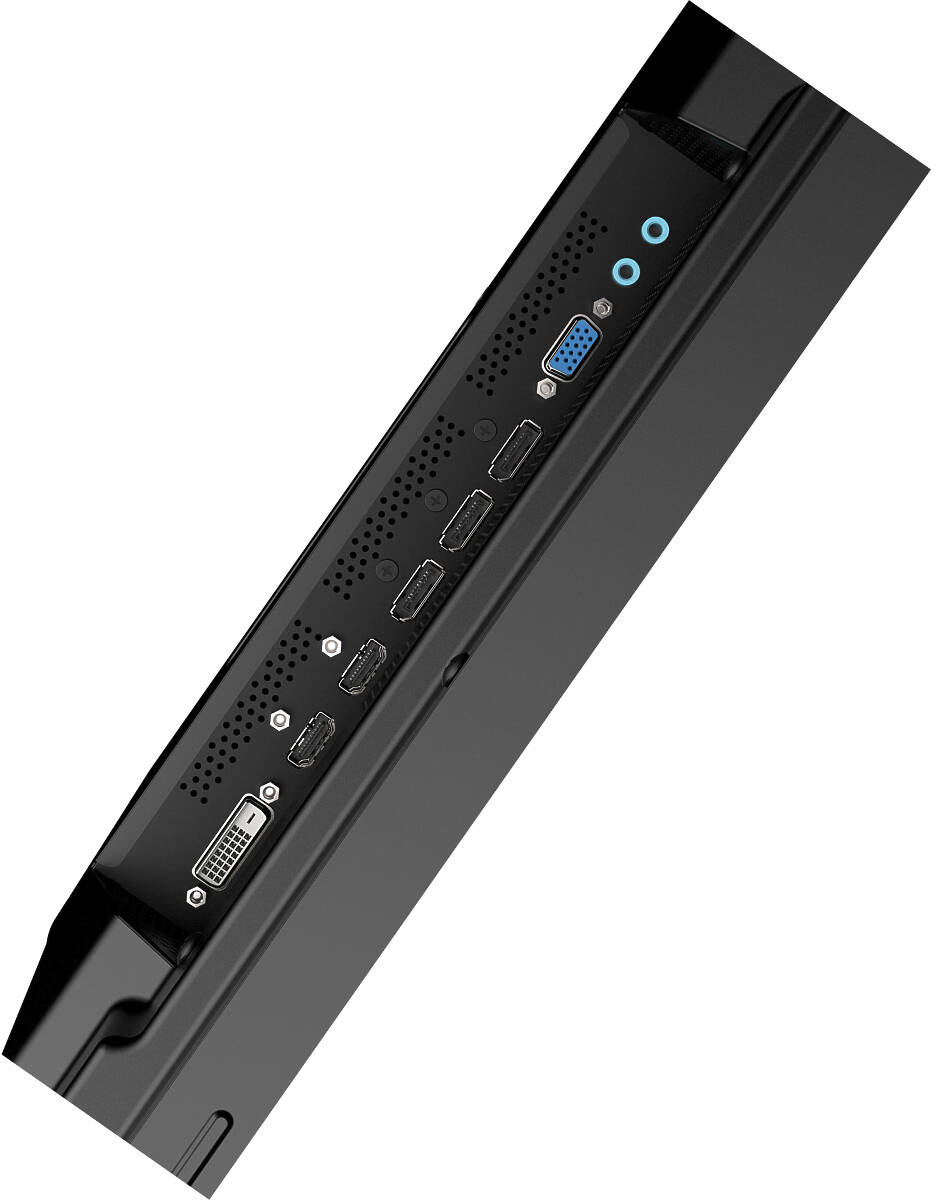

Connectivity Details |
|
| Digital Video Inputs | 1 x DVI-D (with HDCP); 1 x OPS Slot; 2 x DisplayPort (with HDCP); 2 x HDMI (with HDCP) |
| Analogue Video Inputs | 1 x VGA; Composite (RCA) |
| Digital Audio Inputs | 2 x DisplayPort; 2 x HDMI |
| Analogue Audio Inputs | 2 x 3,5 mm jack |
| Control Inputs | 1 x Remote Control (3.5 mm jack); 1 x RS232; 2 x LAN 100Mbit |
| Control Output | LAN 100Mbit |
| Data Inputs | 1 x microSD (MediaPlayer); 1 x USB 1.0 (Downstream); 1 x USB 1.0 (MediaPlayer); 1 x USB 2.0 (Upstream); 2 x USB 1.0 (Compute Module, 1 x 5V/2A powered) |
| Digital Video Output | 1 x DisplayPort (loop through: DisplayPort, OPS slot-in PC) |
| 1 x HDMI (loop through: HDMI, OPS slot-in PC, Mediaplayer) | |
| Analogue Audio Output | 1 x 3,5 mm jack |
| Computer Module Slot | Raspberry Pi Compute Module 1 and 3 |
Media Player / Embedded Computer |
|
| OPS Slot | Intel® Atom, Celeron and Core i3, i5, i7 Slot-in PCs |
| Image Formats | JPG (baseline, progressive, RGB, CMYK); max. resolution 5000 x 5000; PNG (interlace, alpha channel); max. resolution 4000 x 4000 |
| Video Formats | MP4 / MOV / FLV (video H.264, audio MP3, AAC); max. resolution 1080p at 30 Hz, 1080i at 60 Hz; MPG (video mpeg1/2, audio mpeg audio layer2/3, AAC-LC); MP @ ML, MP @ HL; WMV (video H.264, wmv advanced L3, wmv simple / main, audio mp3 wmv std); max. resolution 1080p at 30 Hz, 1080i at 60 Hz |
| Audio Formats | MP3 (MP3); max. bit-rate 320 kBit/s; WAV (LPCM); max. 48 kHz sampling |
Other Features |
|
| Special Features | Auto ID assignment; Auto tiling function; Automatic Alarm E-Mails; DICOM Simulation; Frame Comp; HTTP Server; Image flip; Intelligent Wireless Data (based on NFC); NaViSet Administrator 2; PJLink Support; TileMatrix; USB Media Player; User input priority definition; User readable log function |
| Temperature Sensor | Integrated, 3 sensors, triggered actions programmable |
| Bezel Width | 0.44 bottom/right; 0.44 top/left; 0.88mm |
| Orientation | Landscape; Portrait |
| Operating Temperature | +0 to +40°c |
| Operating Humidity | 20 to 80% |
| Storage Temperature | -20 to 60°c |
| Storage Humidity | 10 to 90% |
| Power Saving Mode | < 0.5; < 2 (Networked Standby) Watts |
| Energy Efficiency | Carbon savings meter; Energy consumption: 209 kWh/1000 h; Energy efficiency class: G; Human Sensor; LED backlight |
| Safety & Ergonomics | BSMI; CE; EAC; EMC Class B; FCC; PSB; RCM; REACH; RoHS; SASO; TÜV GS; TÜV S; UL/C-UL; VCCI |
| Operating Hours | 24/7 |
Included Accessories |
|
| Accessories | Display; DisplayPort Cable; HDMI Cable; LAN cable (RJ45); Power Cable |
