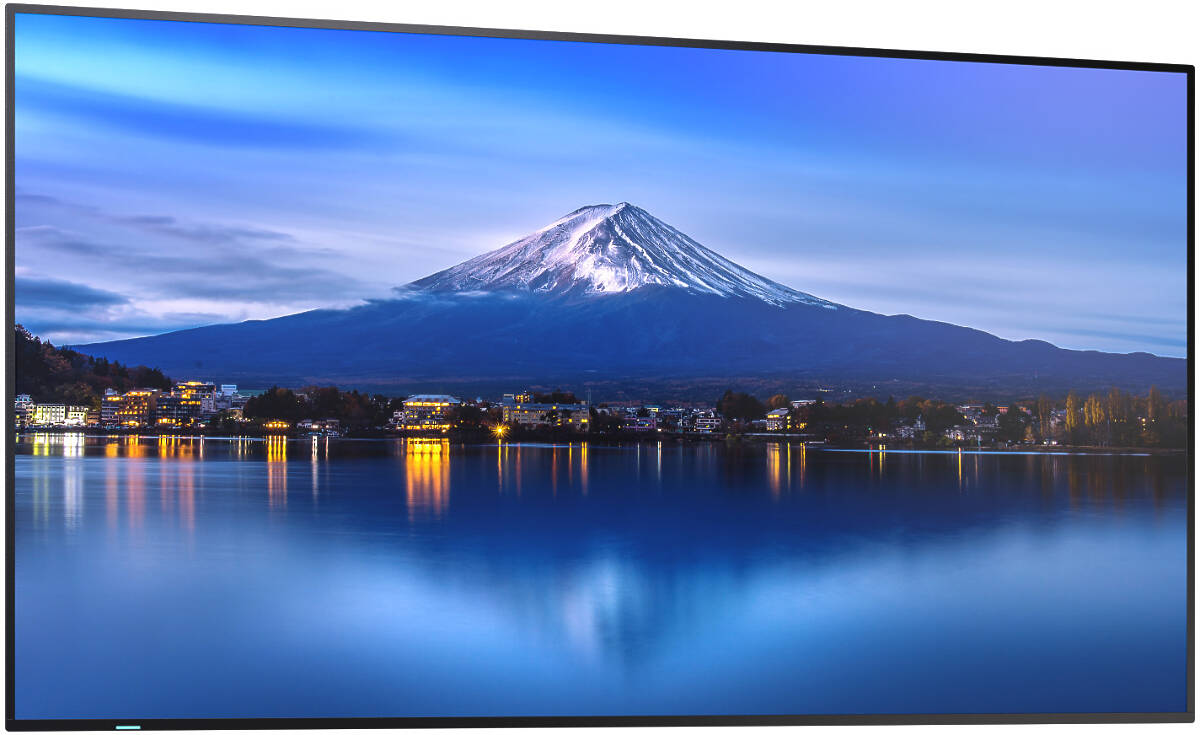

Sharp MultiSync P436 LED Large Format Display Monitor
Availability: Please Call
Sharp MultiSync P436 Suggested Applications
Key Features
- 43" Diagonal IPS with Direct LED backlights Panel
- Enhanced imaging precision - when brand consistency and corporate identity are important, NECs SpectraView Engine provides full control over colour, gamma, and uniformity for accurate and impactful content.
- Unhindered readability - a high-haze panel reduces glare from windows and ambient light, keeping signage content and presentations clear for uninterrupted viewing in any environment
- Security assured - 802.2x support over LAN enables high-level security for corporate networks, giving peace of mind for IT teams and enterprise environments.
- Mission-critical performance - with 700 cd/m brightness, long-life components and robust flame-resistant metal chassis, the P6 series is engineered to deliver lasting clarity and durability in challenging environments without the need for bulky housings.
- Trusted integration - full compatibility with major AV ecosystems, including Crestron XiO Cloud and NVX, Q-Sys, Cisco Webex, Matrox IPMX, and CMS solutions, ensures seamless setup and scalability.
- VESA 300×300; M6 mounting points
- Designed for 24/7 use - Warranty covers use all day, every day

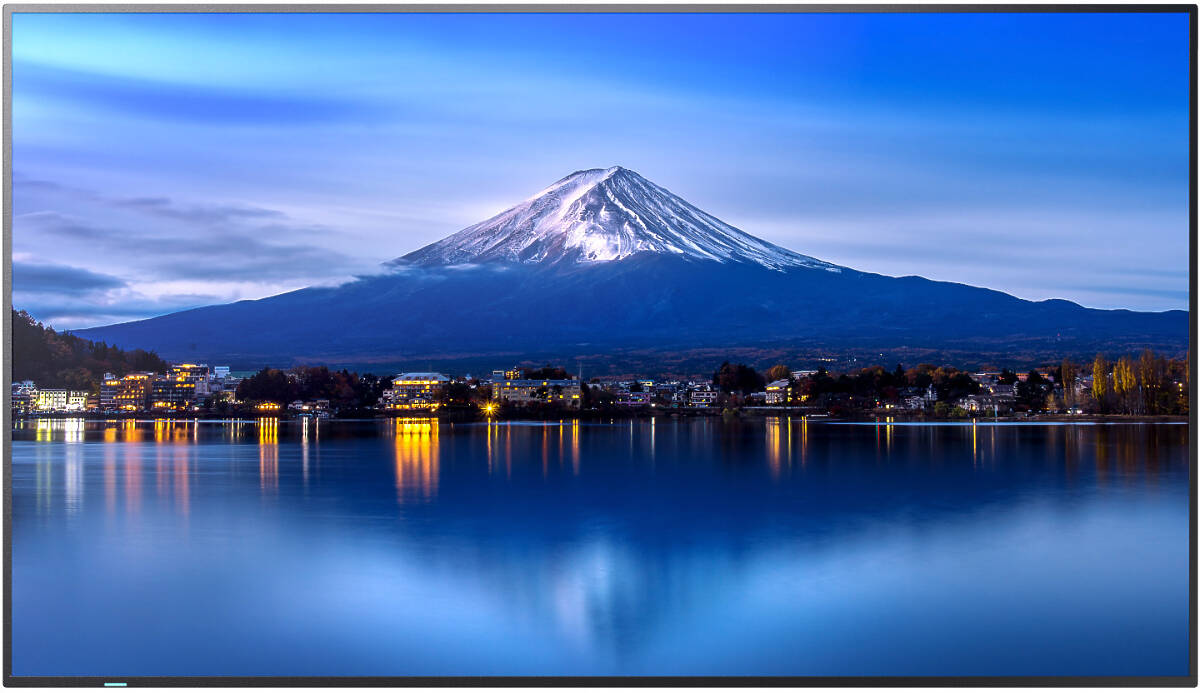

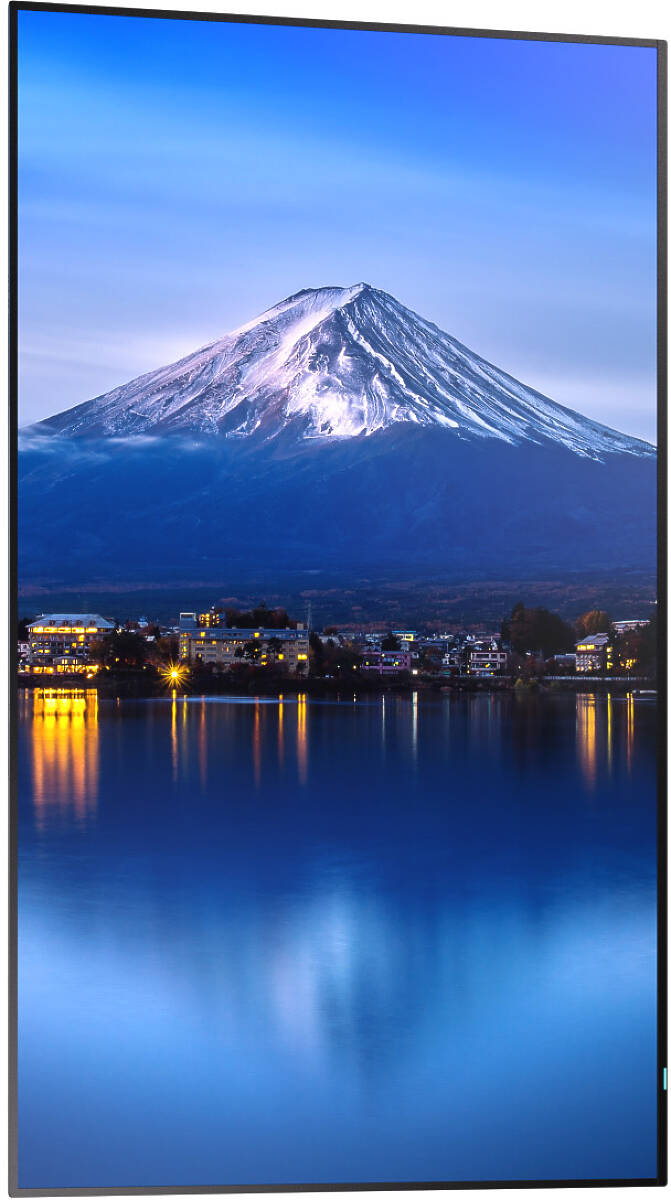

- Landscape/Portrait Mode - The MultiSync P436 can be installed in either standard landscape or portrait orientation
- OPS Slot - Allows expansion modules such as PC boards, HD-SDI interfaces to be added
- Picture-In-Picture
- Picture-And-Picture
- LAN Control/Monitoring - The monitor can be controlled through your local area network
- Face Up Install - This monitor can be installed facing upwards
- Face Down Install - This monitor can be installed facing downwards (dentists surgeries etc)
Precision performance for critical applications
When reliability, security, and exceptional visual performance are mandatory, the Sharp MultiSync P6 Series delivers with precision and resilience. Engineered for mission-critical applications and high-end signage, the P6 Series combines robust durability with advanced visual technologies to meet the most demanding commercial needs. With 700 cd/m brightness, a high-haze panel, and SpectraViewTM Engine, it delivers outstanding image clarity and colour accuracy even in challenging lighting conditions. Despite its slim profile, the P6 Series is endorsed for use in heavy traffic spaces with a durable all-metal chassis that complies to the strictest fire safety standards.
Building on NECs trusted heritage, the next generation Sharp P6 Series is designed for longevity and integration flexibility. Its modular architecture supports custom computing options by Intel SDM or Raspberry Pi, and flexible connectivity including AVoverIP for versatile deployments. Native video daisy chaining via HDMI and DisplayPort enables content to be easily cloned or expanded across multiple displays. Compatibility with leading platforms such as Crestron, Cisco Webex, and Q-Sys enhances its future-proof appeal, while 802.1x LAN support safeguards robust security against cyber threats. Purpose-designed for control rooms, passenger information, and prestige retail or corporate signage, the P6 Series delivers uncompromising performance, day after day.
Sharp MultiSync P436 Summary |
|
| Manufacturers Part No. | 60005911 |
| Model | Sharp MultiSync P436 |
| Display Type | IPS with Direct LED backlights |
| Features | Designed for 24/7 use Landscape/Portrait Mode OPS Slot Picture-In-Picture Picture-And-Picture LAN Control/Monitoring Face Up Install Face Down Install |
| Diagonal | 43" |
| Native Resolution | 3840×2160 |
| Brightness | 700cd/m2 |
| Contrast | 8,000:1 |
| Pixel Pitch | 0.245mm |
| Colours | 1.073 billion |
| Horizontal Frequency | 15–135KHz |
| Vertical Frequency | 23–76Hz |
Connectivity |
|
| HDMI | 2 |
| DisplayPort | 1 |
| USB-C Video | 1 |
| Audio in | 1 |
| USB | 3 |
| RS-232 | 1 |
General Specifications |
|
| Speakers | 10w + 10w |
| Warranty | 3 years warranty incl. backlight; optional 4. + 5. year warranty extension |
| Monitor Dimensions | 96.5 × 55.7 × 6.7cm (w×h×d) |
| Weight | 13.5kg. |
| VESA | 300×300; M6 |
| Power Supply | 100-240 V AC; 50/60 Hz; internal |
| Consumption | 80w |
| Colour Gamut | 86% of DCI |
| Supported Orientation | Face Down; Face Up; Landscape; Portrait |
| Remote In (3.5 mm) | Eco Sensor (IR-Extender, Ambient and Presence) |
| Input Detect | Custom; Last; First |
Calibration |
|
| Factory Calibration | Gamma; Intensity; RGB; Uniformity; White Point |
| Calibration with Software | Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; White Point |
| Calibration Software | Display Wall Calibrator |
Open Modular Intelligence |
|
| Intel® SDM | Accepts Intel® Smart Display Modules Large and Small up to 66 W |
| Compute Module Slot | MPi4 and MPi5 Kit (powered by Raspberry Pi) |
Sensors |
|
| Ambient Light Sensor | Integrated, triggered actions programmable |
| Human Sensor | Optional via Eco Sensor (KTES1) |
| Temperature Sensor | Integrated, 3 sensors, triggered actions programmable |
Environmental Conditions |
|
| Operating Temperature | +0 to +40° |
| Operating Humidity | 20 to 80° |
| Storage Humidity | 10 to 80° |
| Storage Temperature | -20 to 60° |
Mechanical |
|
| Bezel Width | 9.9mm (left, right and top); 13.9mm (bottom) |
| Ingress Protection | IP5x (front); IP2x (back) |
| Packaging Dimensions | 1070 x 675 x 161mm (W x H x D) |
| Packaging Weight | 18kg |
| Material | Metal |
Regulatory |
|
| Safety and Ergonomics | CE; EMC Class B; Energy Star 8; FCC Class B; REACH; RoHS; UKCA; UL/C-UL or CSA |
| Pixel Failure Class | ISO 9241-307, Class 1 |
| Resistance to Fire | Metal backcover, plastic material certified acc. to UL94-5VB |
Green Features |
|
| Energy Efficiency | Energy consumption: 139 kWh/1000 h; Energy efficiency class: G; LED backlight |
| Ecological Standards | EnergyStar 8.0 |
3rd Party Certifications |
|
| Crestron | Certified for Crestron CCV2 and XiO Cloud |
Additional Features |
|
| Special Characteristics | CEC Support; Clone Settings; DICOM Simulation; HDMI ARC; Scheduler |
| External Control | AMX NetLinx Support; Crestron V2; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP |
| Remote Management | NaViSet Administrator 2 |
| Security | Disable HW Buttons; Disable IR Functionality; Emergency Notification; IEEE802.1X (LAN) |
Included Accessories |
|
| Accessories | 2×AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual |
