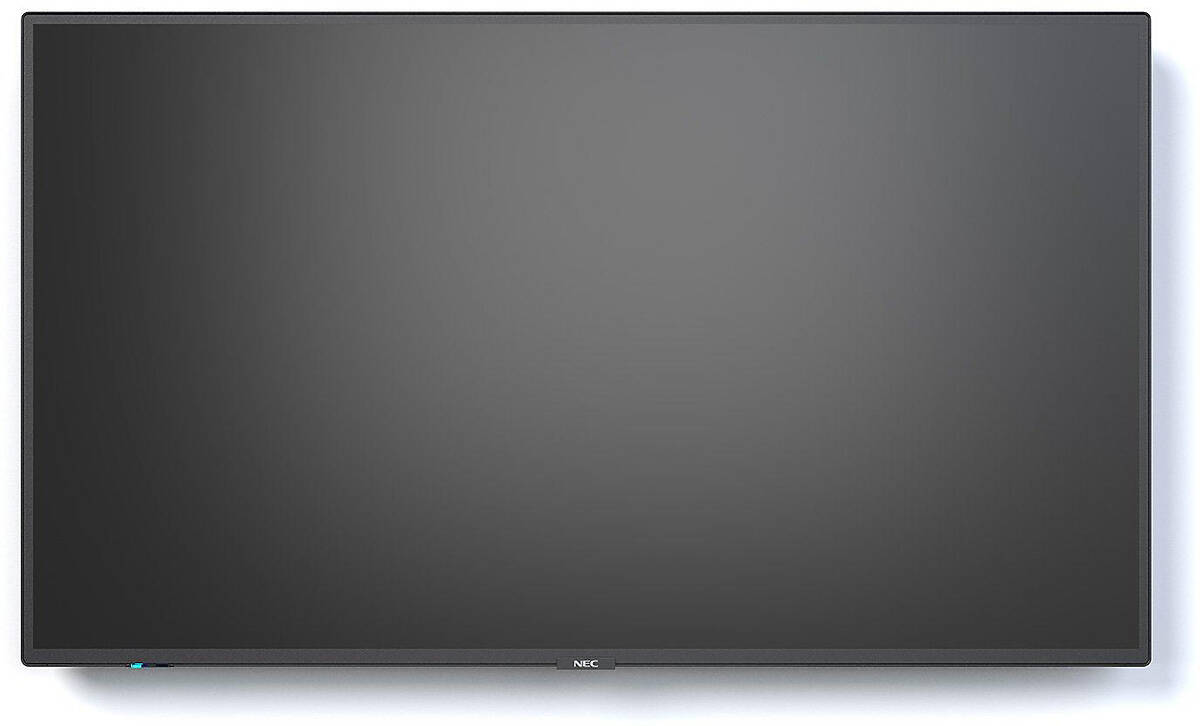

NEC MultiSync P495-MPi4 LED Large Format Display Monitor
£1639 (£1966.80 inc. VAT)
Availability: Please Call
Availability: Please Call
NEC MultiSync P495-MPi4 Suggested Applications
Key Features
- 49" Diagonal IPS with Edge LED backlights Panel
- Wide colour gamut - High-performance panel technology delivers a wider spectrum of colours for a superb visual experience
- Intuitive Plug & Play solution - Even when not familiar with using digital signage, users can facilitate stunning signage creation for immersive real-time visual experiences
- Install third party software - Expand the NEC MediaPlayer functionality via additional Apps or even switch to your preferred Content Management Systems (CMS) directly from of the NEC MediaPlayer
- Everything under control - One single interface is needed to manage both the NEC MediaPlayer and the display directly, via a web-interface or the NEC Display remote control.
- Unhindered readability - No reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation
- Landscape, Portrait, Face Up, Face Down installation
- VESA 300×300; M6mm mounting points
- Designed for 24/7 use - Warranty covers use all day, every day
- DICOM Support - For accurate medical imaging
- Ambient Light Sensor - The display brightness will alter according to ambient light levels
- Integrated Media Player - Content can be transfered to the display via USB memory stick or network
- Includes Plug-In Raspberry Pi - A Raspberry Pi SBC in included and pre-installed
When imaging precision cannot be compromised
When imaging precision and 24/7 operational reliability cannot be compromised, the 5th generation of NEC MultiSyncP series presents best-in-class performance with an advanced feature set for mission-critical applications.

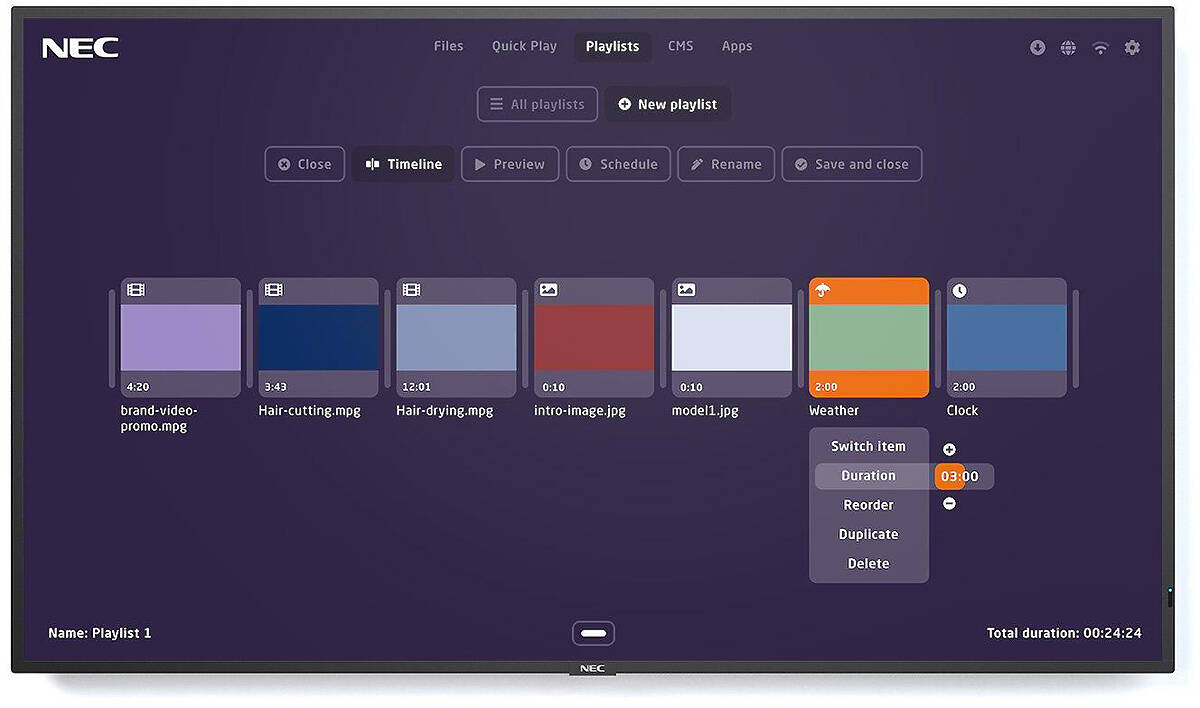

Even in bright ambient light conditions, high brightness levels of 700 cd/m combined with a high haze filter guarantees exceptional readability with no annoying reflections. Despite its slim, elegant profile, the quality build is robust for use in public spaces, with an all-metal chassis for fire-retardancy. Featuring the pre-installed NEC MediaPlayer you get an out of the box signage experience and can playback the content needed for your application: video, picture, html or use any of the supported Content Management Systems (CMS).
For best visualisation in control rooms and production lines, for passenger information and wayfinding signage; the NEC P-MPi4 series is trusted for safety and long-life, fit-for-purpose performance..
NEC MultiSync P495-MPi4 Downloads
Mounting Options & Accessories
NEC MultiSync P495-MPi4 Summary |
|
| Manufacturers Part No. | 60005377 |
| Model | NEC MultiSync P495-MPi4 |
| EAN / UPC | 5028695122598 |
| Display Type | IPS with Edge LED backlights |
| Features | Designed for 24/7 use DICOM Support Ambient Light Sensor Integrated Media Player Includes Plug-In Raspberry Pi |
| Diagonal | 49" |
| Viewable Area | 108.5 * 70cm |
| Native Resolution | 3840*2160 |
| Brightness | 700cd/m2 |
| Contrast | 8,000:1 |
| Colours | 1.073 billion (10bit) |
| Horizontal Frequency | 15-135kHzKHz |
| Vertical Frequency | 23-76HzHz |
Connectivity |
|
| HDMI | 2 |
| DisplayPort | 2 |
| RS-232 | 1 |
General Specifications |
|
| Speakers | No |
| Warranty | 3 years warranty incl. backlight |
| Monitor Dimensions | 110.3 × 63.6 × 6.1cm (w×h×d) |
| Weight | 22.9kg. |
| VESA | 300×300; M6mm |
| Power Supply | TBC |
| Consumption | 105w |
Connectivity Details |
|
| Data Input | 1 × USB 2.0 (Downstream) |
| 1 × USB 2.0 (Powered 5V/2A, Firmware Updates) | |
| 1 × USB 2.0 Type-B (Downstream) | |
| Digital Audio Input | 1 × DisplayPort |
| 2 × HDMI | |
| Digital Video Output | 1 × DisplayPort (loop through: DisplayPort, SDM slot-in PC) |
| 1 × HDMI (loop through: HDMI, SDM slot-in PC) | |
| Analogue Audio Output | 1 × 3.5mm jack |
| Control Output | 1 × LAN 100Mbit |
| Input Detection | Custom |
| First | |
| Last | |
Display Details |
|
| Viewing Angle | Hor. 178°/ Ver. 178° (typical at contrast ratio 10:1) |
| Colour Gamut | 86% of DCI |
| Refresh Rate | 60Hz |
| Haze Level | Pro (28)% |
| Supported Orientation | Landscape, Portrait, Face Up, Face Down 2 |
| P-in-P / P-and-P | Dual-Split; Quad-Split; scalable picture size |
| Special Characteristics | DICOM Simulation; HDMI ARC; Powered USB Port (10 W); Removable Logo |
| Factory Calibration | Gamma; Intensity; RGB; Uniformity; White Point |
| Sensor Calibration App | NEC Display Wall Calibrator |
| Sensor Calibration USB | PC-less Calibration with USB Sensor MDSVSensor3; White Copy (post self-calibration) |
| Software Calibration | Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; White Point |
OPS Slot |
|
| Intel® SDM | accepts Intel® Smart Display Modules Large and Small up to 66 W |
| Compute Module Slot | RPi Compute Module 4 |
Media Player |
|
| Supported File System / Storage | USB 2.0 / FAT16, FAT32 |
| Supported Image Formats | JPG / JPEG; PNG |
| Supported Video Formats | MP4 / MOV /AVI / MPEG/ WMV / MPG / M4V / VOB / MKV (H.265); MPEG-2; M4K; VP8 / VP9; HTML5 |
| Supported Audio Formats | MP3; AAC; AC-3 |
Sensors |
|
| Ambient Light Sensor | Integrated, triggered actions programmable |
| Temperature Sensor | Integrated, 3 sensors, triggered actions programmable |
Additional Control |
|
| External Control | AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP |
| Remote Management | Automated Email Alerts; NEC NaViSet Administrator 2 |
| Power DetailsPower Savings Mode | < 0.5; < 2 (Networked Standby)W |
VESA DPMS |
|
| Energy Efficiency | Energy consumption: 106 kWh/1000 h; Energy efficiency class: G; LED backlight |
| Ecological Standards | EnergyStar 8.0 |
| Operating Hours | 24/7 |
Environment |
|
| Operating Temperature | +0 to +40°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 10 to 90% |
| Storage Temperature | -20 to 60°C |
| Resistance to Fire | Metal backcover, plastic material certified acc. to UL94-5VB |
Mechanical |
|
| Bezel Width | 12 (top and bottom); 12.5 (left and right); 15.6 (bottom)mm |
| Bezel Colour | Pantone 426M (black) |
| Ingress Protection | IP5x (front); IP2x (back) |
| Packaging Dimensions | 1,298 × 860 × 224mm |
| (W × H × D) | |
| Packaging Weight | 29.8kg |
| Material | Metal |
| Safety and Ergonomics | BSMI; CE; EAC; EMC Class B; Energy Star 8; FCC Class B; KC/KCC; PSB; RCM; RoHS; VCCI |
| Pixel Failure Class | ISO 9241-307, Class 1 |
| Security | Disable HW Buttons; Disable IR Functionality; Emergency Notification |
| Optional Accessories | Feet (ST-401/ST-43M); Soundbar (passive: SP-PSCM-IQ / SP-PSCM); Speaker (SP-TF1, SP-RM3); Trolley (PDMHM-L); Wall mount (PDW C L and P, PD02W T M L, PD03W T M P) |
| Power Supply | 100-240 V AC; 50/60 Hz; internal |
| Internal Storage | 32GB eMMC (2GB occupied by OS, 28GB available for files) |
| Processor | Cortex-A72 (ARMv8) 64-bit SoC @ 1.5GHz |
Included Accessories |
|
| Accessories | 2x AAA batteries; Display; HDMI Cable; Power Cable; Pre-installed MPi4 MediaPlayer Kit; Remote Control; Setup Manual |
