NEC MultiSync MA551-MPi4 LED Large Format Display Monitor

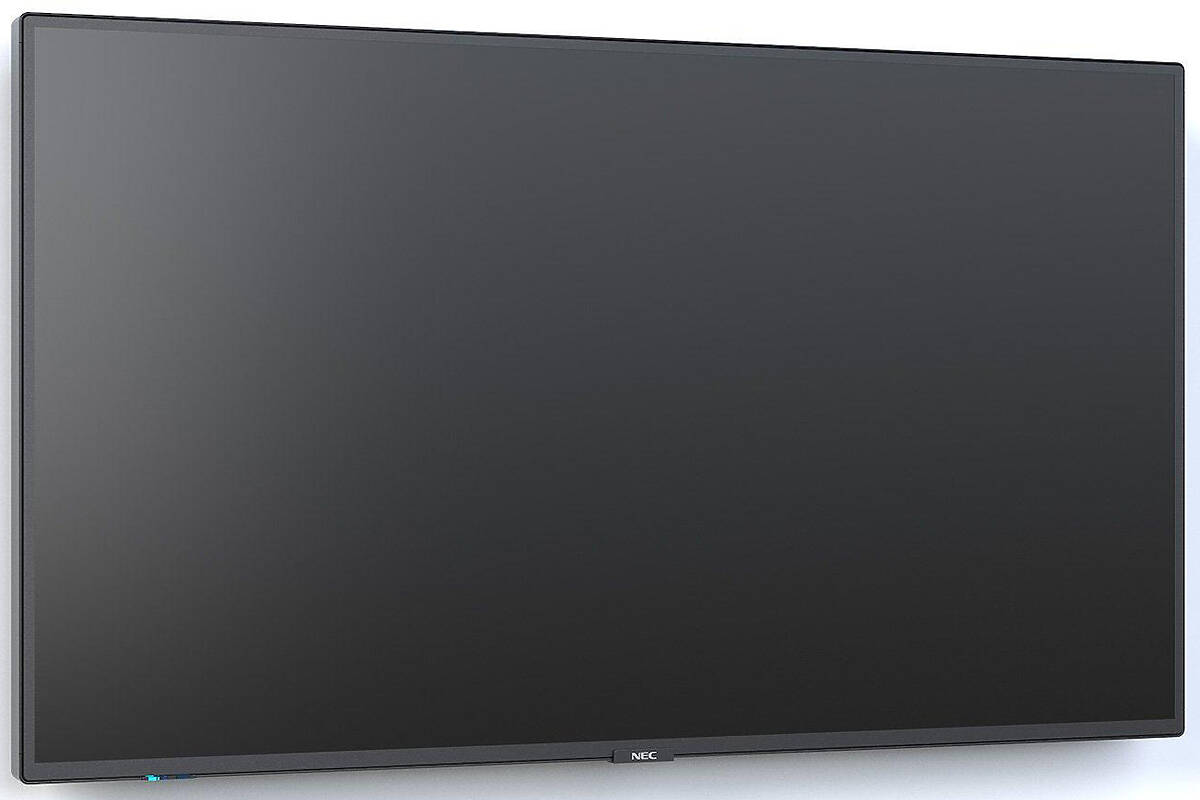

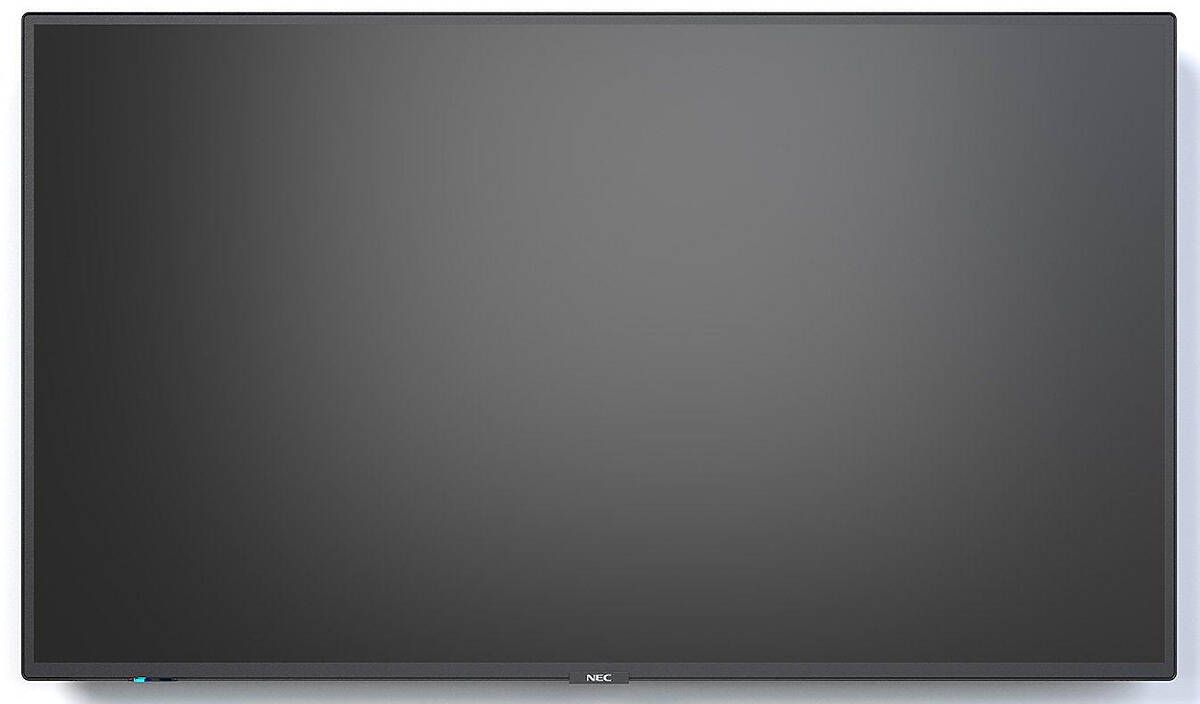

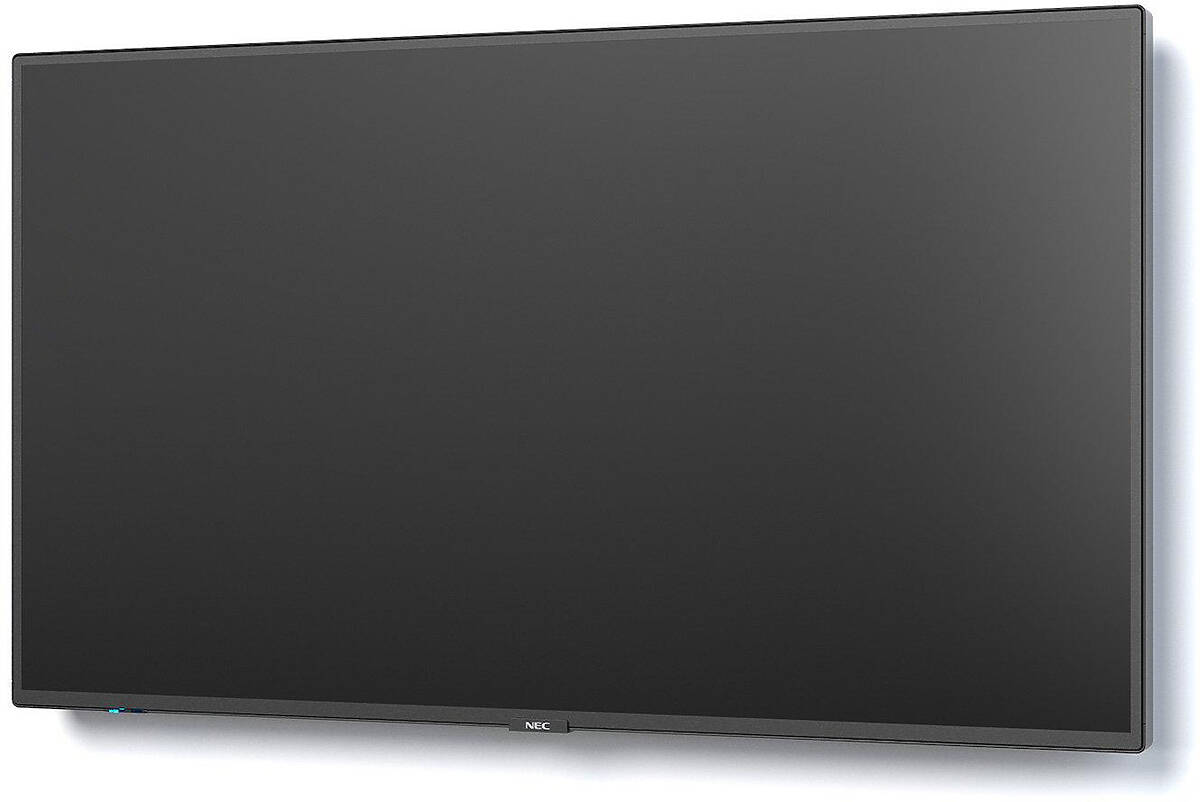

NEC MultiSync MA551-MPi4 55 inch Large Format Display product image. Click to enlarge.

NEC MultiSync MA551-MPi4 55 inch Large Format Display product image

£1764 (£2116.80 inc. VAT)
Availability: Please Call

NEC MultiSync MA551-MPi4 Suggested Applications

Public Display

Classrooms & Training Rooms

Exhibitions

Scheduling Display

Museums and Art Galleries

Health Care / Clinics

Digital Signage

Huddle Spaces

Key Features

55" Diagonal IPS with Edge LED backlights Panel
VESA 4 holes; M6 mounting points
Designed for 24/7 use - Warranty covers use all day, every day

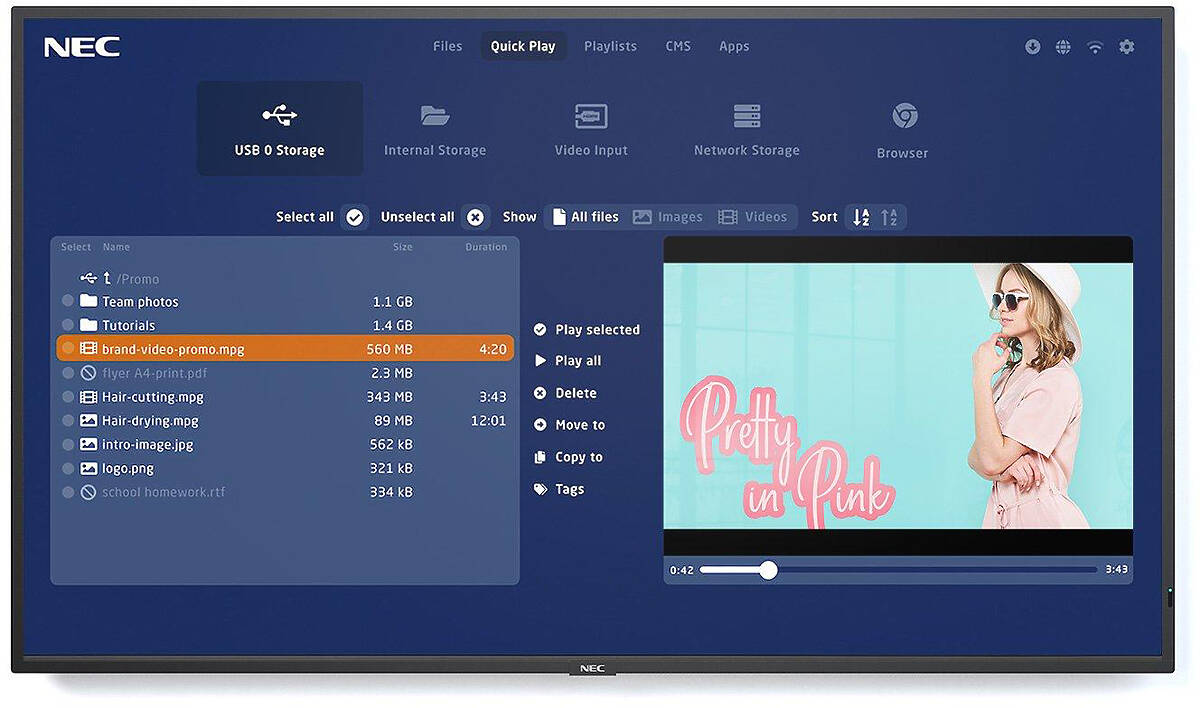

USB Media Player - Play JPeG images, MP3 audio or MPG video from a USB memory stick
DICOM Support - For accurate medical imaging
OPS Slot - Allows expansion modules such as PC boards, HD-SDI interfaces to be added
Picture-In-Picture
Picture-And-Picture
LAN Control/Monitoring - The monitor can be controlled through your local area network

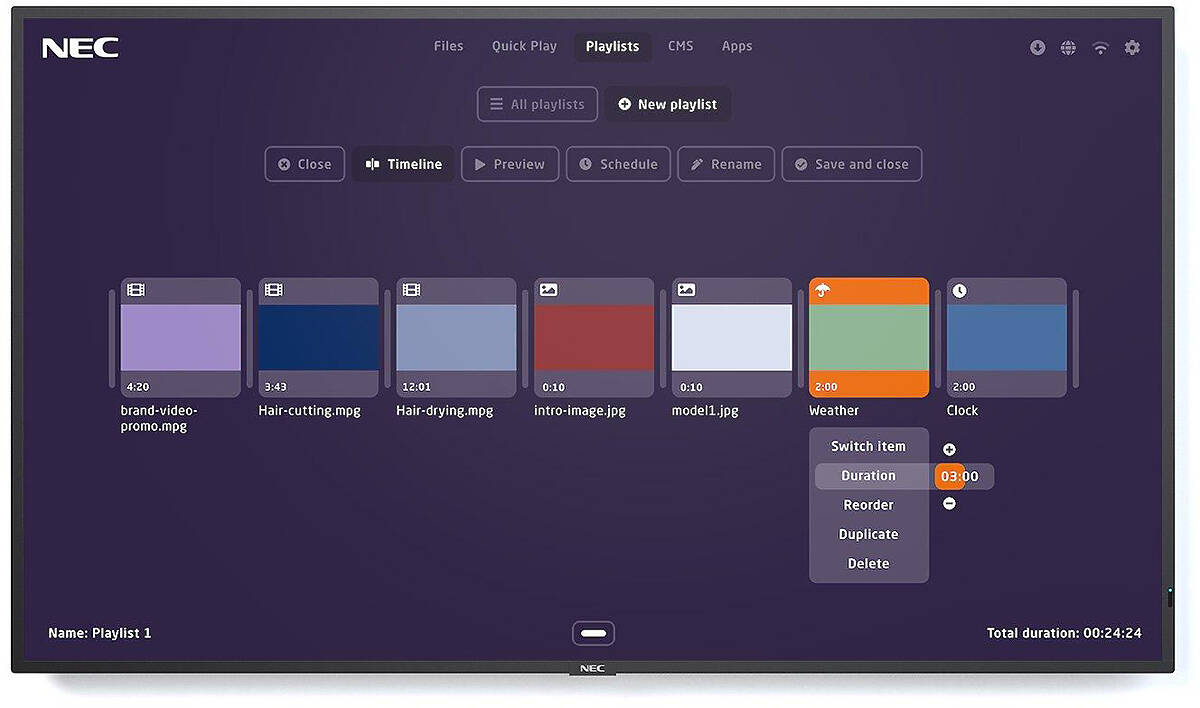

Integrated Media Player - Content can be transfered to the display via USB memory stick or network
Face Up Install - This monitor can be installed facing upwards

Mounting Options & Accessories

Blustream AMF41W

Unicol PA2 E

Unicol VS1000 E

Unicol AX15P

Unicol PLW1

Unicol PLX1

Unicol AVLP

Unicol AX16P

Unicol AX15T

NEC MultiSync MA551-MPi4 Summary
Manufacturers Part No.	60005371
Model	NEC MultiSync MA551-MPi4
EAN / UPC	5028695122536
Display Type	IPS with Edge LED backlights
Features	Designed for 24/7 use USB Media Player DICOM Support OPS Slot Picture-In-Picture Picture-And-Picture LAN Control/Monitoring Integrated Media Player Face Up Install
Diagonal	55"
Native Resolution	3840×2160
Brightness	500cd/m²
Contrast	8,000:1
Colours	1.073 Billion (10bit)
Horizontal Frequency	60KHz
Vertical Frequency	23 - 86Hz
Connectivity
HDMI	2
DisplayPort	2
USB	3
RS-232	1
General Specifications
Speakers	Optional
Warranty	3 years warranty incl. backlight; optional 4. + 5. year warranty extension
Monitor Dimensions	124 × 7.1 × 6.1cm (w×h×d)
Weight	27.6kg.
VESA	4 holes; M6
Power Supply	100-240 V AC; 50/60 Hz; internal
Consumption	90w
Connectivity Details
Digital Video Inputs	2 x DisplayPort (with HDCP); 2 x HDMI (with HDCP)
Digital Audio Inputs	1 x DisplayPort; 2 x HDMI
Control Inputs	LAN 100Mbit; remote control wire (3,5mm jack); RS232
Control Output	1 x LAN 100Mbit
Data Inputs	1 x USB 2.0 (Downstream); 1 x USB 2.0 (Powered 5V/2A, Firmware Updates); 1 x USB 2.0 Type-B (Downstream)
Digital Video Output	1 x DisplayPort (loop through: DisplayPort, SDM slot-in PC)
	1 x HDMI (loop through: HDMI, SDM slot-in PC)
Analogue Audio Output	1 x 3,5 mm jack
Input Detection Seq	Custom
	First
	Last
Intel SDM	accepts Intel® Smart Display Modules Large and Small up to 66 W
Computer Module Slot	RPi Compute Module 4
External Control	AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP
Remote Management	Automated Email Alerts; NEC NaViSet Administrator 2
Media Player / Embedded Computer
File Storage / System	USB 2.0 / FAT16, FAT32
Image Formats	JPG / JPEG; PNG
Video Formats	MP4 / MOV /AVI / MPEG/ WMV / MPG / M4V / VOB / MKV (H.265); MPEG-2; M4K; VP8 / VP9; HTML5
Audio Formats	MP3; AAC; AC-3
Internal Storage	32GB eMMC (2GB occupied by OS, 28GB available for files)
Other Features
Special Features	DICOM Simulation; HDMI ARC; Powered USB Port (10 W); Removable Logo
Temperature Sensor	Integrated, 3 sensors, triggered actions programmable
Bezel Width	12 (top); 12.5 (left and right); 15.6 (bottom)mm
Package Dimensions	1,430 × 920 × 250(mm)
Package Weight	37.7(kg)
Ingress Protection	IP5x (front); IP2x (back)
Orientation	Face Up 2; Landscape; Portrait
Operating Temperature	+0 to +40°c
Operating Humidity	20 to 80%
Storage Temperature	-20 to 60°c
Storage Humidity	10 to 90%
Power Saving Mode	< 0.5; < 2 (Networked Standby) Watts
Energy Efficiency	Energy consumption: 106 kWh/1000 h; Energy efficiency class: G; LED backlight
Ecological Standards	EnergyStar 8.0
Safety & Ergonomics	BSMI; CE; EAC; EMC Class B; Energy Star 8; FCC Class B; KC/KCC; PSB; RCM; RoHS; VCCI
Operating Hours	24/7
Security	Disable HW Buttons; Disable IR Functionality; Emergency Notification
Fire Resistance	Metal backcover, plastic material certified acc. to UL94-5VB
Included Accessories
Accessories	2 × AAA batteries; Display; HDMI Cable; Power Cable; Pre-installed MPi4 MediaPlayer Kit; Remote Control; Setup Manual
