Kramer K-CAM4K
4K PTZ Professional HD camera for versatile video capture
12× Optical Zoom and 71° wide angle lens
£976 (£1171.20 inc. VAT)
Availability: In stock
Availability: In stock
Kramer K-CAM4K (87-80011290)
Ultra−HD camera for premium−clarity video in large spaces. Put every meeting in sharp focus with crystal−clear, ultra−high−definition video capture and advanced, yet easy, control.4K resolution, high−power optical and digital zooms, smooth PTZ operation and multiple outputs, the K−Cam4K takes video conferencing to a new level.
Kramer K-CAM4K Key Features
- Superior video at any distance
- Wide–angle image capture with advanced PTZ control enables dynamic coverage of medium and large spaces, such as boardrooms, classrooms, and auditoriums
- Best–in–class image clarity and highly accurate close–ups, with 4K60 resolution and 12x optical zoom plus 16x digital zoom
- Enhanced video quality, even in low–light conditions, with industry–leading CMOS image sensing with 2D and 3D digital noise reduction (DNR)
- Easy configuration and control
- All operation, including pan, tile and zoom, are easily controlled from any Kramer control interface and/or the compact remote control
- Multiple ports including RS–232, RJ–45, HDMI 1.4, and USB 3.0 deliver 4K video at up to 60 fps
- Works seamlessly with virtually all meeting applications
- Fast and simple setting of camera angle, with a choice of 255 pre–set camera positions
- Up to 7 year warranty (Click Here for details)
- Order Code: 87-80011290
Kramer K-CAM4K Downloads
Kramer K-CAM4K Specifications

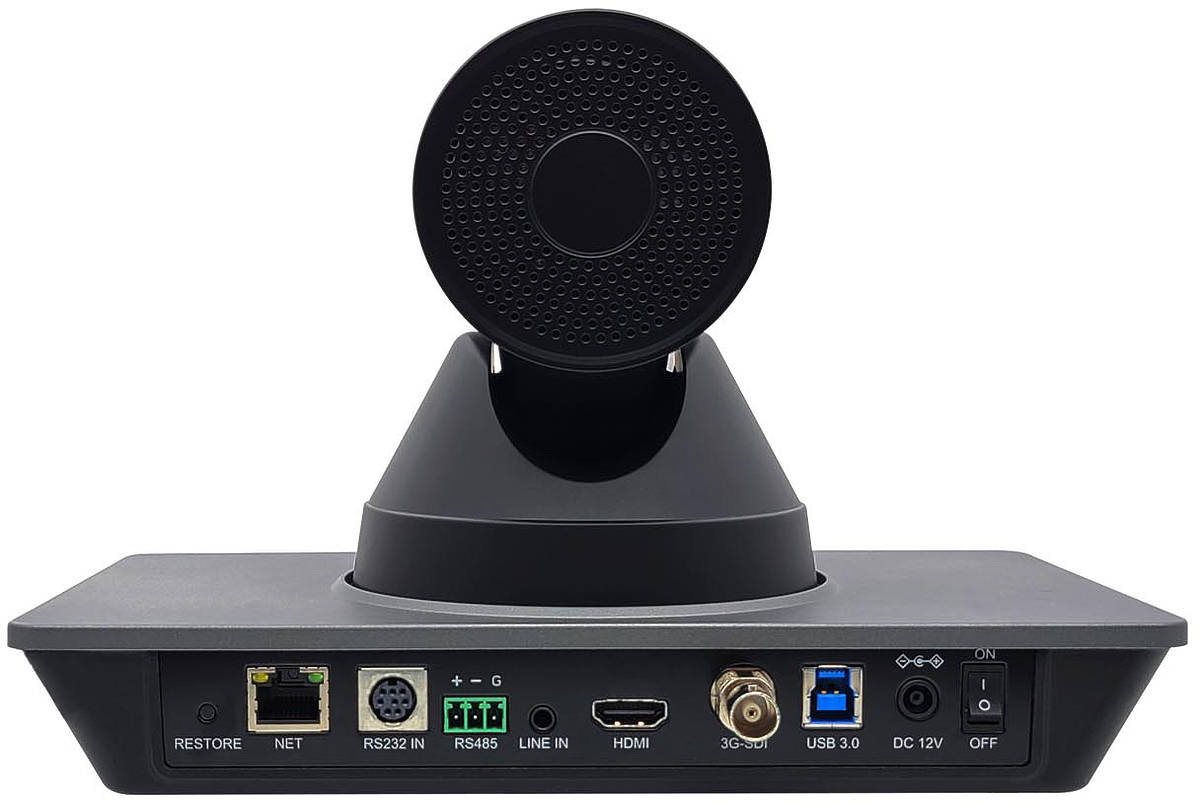

Connectivity |
|
| USB 3.0 | On a USB type B connector Up to 4K@30fps compressed video and 1080P original video can be output |
| RS-232 In | On an 8-pin Min DIN, Max Distance: 30m, Protocol: VISCA / Pelco-D / Pelco-P |
| RS-232 Out | On an 8-pin Min DIN, Max Distance: 30m, Protocol: VISCA / Pelco-D / Pelco-P |
| RJ45 | 10/100/1000M Adaptive Ethernet Port |
| Rs-485 | On a 2-pin phoenix connector, Max Distance: 1200m, Protocol: VISCA / Pelco-D / Pelco-P |
| Audio Line In | On a 3.5mm mini jack |
| HDMI | On an HDMI connector |
| 3g-SDI | On a BNC connector, 800mVp-p, 75Ω. Along to SMPTE 424M standard |
Camera |
|
| Video System | HDMI: 1080P60, 1080P50, 1080I60, 1080I50, 1080P30, 1080P25, 720P60, 720P50, 1080P29.97, 1080I59.94, 1080P59.94, 720P59.94, 4KP29.97, 4KP25, 4KP30 |
| Video System | 3G-SDI: 1080P60, 1080P50, 1080I60, 1080P59.94, 1080I59.94, 1080I50, 1080P30, 1080P29.97, 1080P29.97, 1080P25, 720P60, 720P59.94, 720P50 |
| Sensor | 1/2.5 inch, CMOS, Max Effective Pixel: 8.51M |
| Scanning Mode | Progressive |
| Lens | 12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6 |
| Digital Zoom | 16x |
| Minimal Illumination | 0.5 Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s ~ 1/10000s |
| White Balance | Auto, Indoor, Outdoor, One Push, Manual |
| Backlight Compensation | Support |
| Digital Noise Reduction | 3D Digital Noise Reduction |
| Video S/n | ≥55dB |
| Horizontal Angle Of View | 71° ~ 8.2° |
| Vertical Angle Of View | 42.7° ~ 4.5° |
| Horizontal Rotation Range | ±170° |
| Vertical Rotation Range | ±30° |
| Pan Speed Range | 1.6°/s ~ 76°/s |
| Tilt Speed Range | 0.5°/s ~ 15°/s |
| H & V Flip | Support |
| Image Freeze | Support |
| Number Of Presets | 255 |
| Preset Accuracy | 0.1° |
USB Features |
|
| Video Format | YUY2: max to 1080P@30fps |
| Video Format | H.264 AVC/SVC: max to 2160P@30fps |
| Video Format | MJPEG: max to 4K@30fps |
| Operating System | Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android |
| Colour System / Compression | YUY2 / MJPEG / H.264 / H.265 |
| USB Audio | Support |
| USB Video Communication Protocol | UVC 1.1~1.5 |
| UVC PTZ | Support |
Network |
|
| Video Compression | H.264/H.265/MJPEG |
| Video Stream | First Stream, Second Stream |
| First Stream Resolution | 3840×2160, 1920×1080, 1280×720, 1024×576, 720×480, 720×408, 640×480, 640×360 |
| Second Stream Resolution | 720×480, 720×408, 640×480, 640×360, 480×320, 320×240 |
| Video Bit Rate | H264: ~60Mbps MJPEG: ~200Mbps |
| Bit Rate Type | Variable Rate, Fixed Rate |
| Frame Rate | 50hz: 4K max to 30fps, 1080P max to 50fps |
| Frame Rate | 60hz: 4K max to 30fps, 1080P max to 60fps |
| Audio Compression | G711A, AAC |
| Audio Bit Rate | 96K, 128K |
| Protocols | TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multicast |
Controls |
|
| IR Remote Control Transmitter | OSD |
| Web Interface | Embedded webpages |
Mechanical |
|
| Power Source | 12V DC, 2A max |
| Consumption | 12W max |
| Enclosure Type | Aluminium and plastic |
| Net Dimensions (W×D×H) | 14.5cm × 9.8cm × 15cm (5.7" × 3.9" × 5.9") |
| Shipping Dimensions (W×D×H) | 23cm × 23cm × 25cm (9" × 9" × 9.8") |
| Net Weight | 0.94kg (2.1lbs) approx |
| Shipping Weight | 2.6kg (5.7lbs) approx |
| In The Box | Power adapter and cord, IR remote control transmitter, 1 USB 3.0 cable, wall bracket kit, and lens cover |
| Product Dimensions | 23.50cm × 14.50cm × 17.00cm (9.25" × 5.71" × 6.69" ) W×D×H |
| Product Weight | 1.4kg (3.1lbs) approx. |
| Shipping Dimensions | 30.00cm × 24.50cm × 24.50cm (11.81" × 9.65" × 9.65" ) W×D×H |
| Shipping Weight | 3.4kg (7.4lbs) approx. |
Environmental Conditions |
|
| Operating Temperature | -10° to +40°C (14° to 104°F) |
| Storage Temperature | -40° to +60°C (-40° to 140°F) |
| Humidity | 10% to 90%, RHL non-condensing |
| Altitude | Below 5000 meters |
Regulatory Compliance |
|
| Safety | CE, FCC |
| Environmental | RoHs, Reach |
