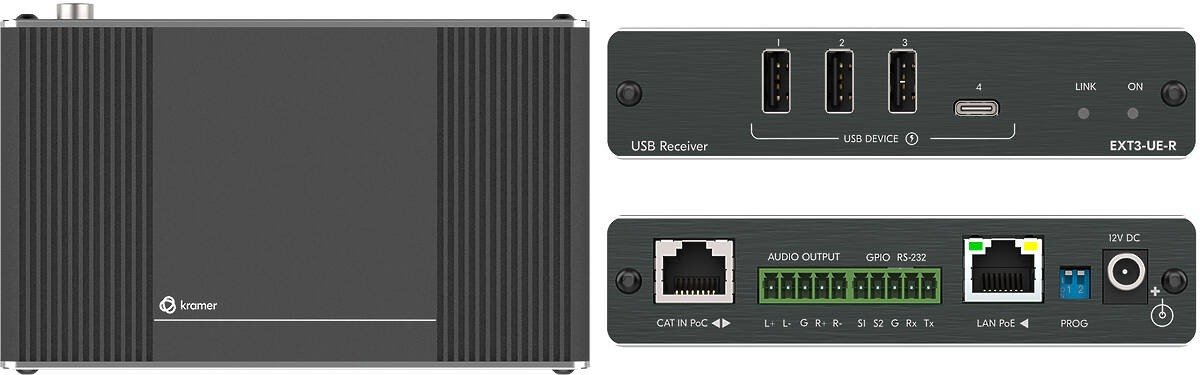

Kramer EXT3-UE-R
1:1 USB 3.2 Gen 1 Extender Over Twisted Pair Receiver Only
Extend USB 3.2 up to 100m with 3 port hub
£302 (£362.40 inc. VAT)
Availability: In stock
Availability: In stock
Kramer EXT3-UE-R (50-80592090)
The Kramer EXT3-UE-R is a comprehensive 2-way powering USB 2.0 receiver over extended-reach twisted pair CAT cable. The receiver converts the transmitted CAT signal into USB 2.0, Ethernet, RS-232 and audio signals.
Kramer EXT3-UE-R Key Features
- Comprehensive USB Extension — Plug & play USB over CAT receiver for connecting a remote USB host is to the locally connected USB peripherals, employing either interrupt, bulk or isochronous USB 2.0 standard data transfer communication.
- Simple USB Peripheral Control — Remote IP-driven or serial control, via the CAT-extended control signals of the connected USB peripherals, such as PTZ cameras and soundbars by a remote LAN-connected control system (for example, Kramer Control).
- Flexible USB Connectivity — Wide Variety of USB peripheral and dual-role devices can be extended including cameras, touch screens, smart boards, hard drives, game controllers, audio devices, printers, scanners, or HID (Human Interface Devices) devices such as a mouse or keyboard.
- USB Peripherals Charging — Fast USB charging of connected USB peripherals when the receiver is powered by a power supply, and standard USB charging when the receiver is powered by the transmitter via CAT.
- Bidirectional Ethernet Extension — LAN interface data flows in both directions, allowing network data transmission and connected-devices control.
- Bidirectional RS-232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
- Audio Extension — The transmitted Analogue audio line signal from the remote audio source is connected to the locally connected audio playing device.
- Comprehensive and Cost-effective Management — Local panel indication LEDs facilitate easy local maintenance and troubleshooting. Remote management of connected trigger-able I/O devices (such as sensors), via user-friendly embedded web pages and optional whole site management system, ensure lasting and field proven deployment.
- Easy Installation — Single twisted-pair cable for carrying signal and power wiring. Compact TOOLS® fan-less enclosure for device-back mounting, or side-by-side mounting of 3 units in a 1U rack space with the recommended rack adapter.
- 7 year warranty (Click Here for details)
- Order Code: 50-80592090
Kramer EXT3-UE-R Downloads
Kramer EXT3-UE-R Specifications
Connectivity |
|
| Inputs | 1 × Cat On an RJ45 female connector for extension line |
| Outputs | 1 × Stereo Analogue Balanced Audio On a 5-pin terminal block for audio extension |
| Ports | 3 × USB 2.0 Devices On USB-A female connectors |
| 1 × USB 2.0 Devices On a USB-C female connector | |
| 1 × POE-accepting Ethernet On an RJ45 female connector for LAN connection and extension over CAT link | |
| 1 × RS-232 On a 3-pin terminal block | |
| 2 × GPIO On a 2-pin terminal block | |
Power |
|
| USB Device Charging | Max. Total Current [Device powered via HDBaseT PoC]: 0.5A |
| Power Adapter | 12V DC/2A (not included) |
| Consumption | 1.1A |
| Max. Power | 12W |
| POE | Consumption 0.15A |
| Max. Power 3W | |
| USB Device Charging | Max. Total Current [Device powered via power supply unit or LAN PoE]: 2A |
| Max. Total Current [Device powered via HDBaseT PoC]: 0.5A | |
Extension Line |
|
| Reach | Up to 100m (330ft) |
| Reach | Note: When using Kramer cables |
Extended USB |
|
| Data Rate | Up to 480Mbps |
| Integrated USB Hubs | 1 |
| Transmitted Data Bandwidth | Up to 300Mbps |
| Standards Compliance | USB 2.0 and 1.1 |
Extended Ethernet |
|
| Data Rate | Up to 100Mbps |
Extended RS-232 |
|
| Baud Rate | 9600 |
Enclosure |
|
| Size | Tools |
| Material | Aluminium |
| Cooling | Convection ventilation |
| Product Dimensions | 12.00cm × 7.15cm × 2.44cm |
| (4.72" × 2.81" × 0.96" ) W×D×H | |
| Product Weight | 0.2kg (0.5lbs) approx. |
| Shipping Dimensions | 49.00cm × 18.60cm × 58.80cm |
| (19.29" × 7.32" × 23.15" ) W×D×H | |
| Shipping Weight | 1.0kg (2.1lbs) approx. |

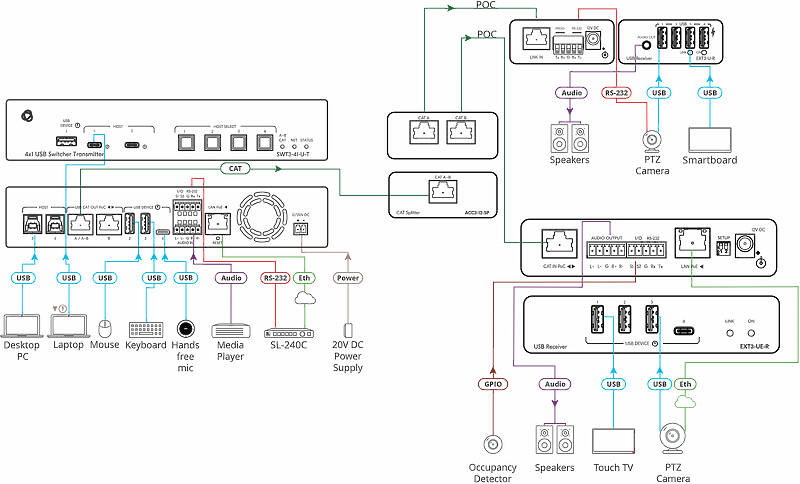

Kramer EXT3-UE-R Usage Diagram
