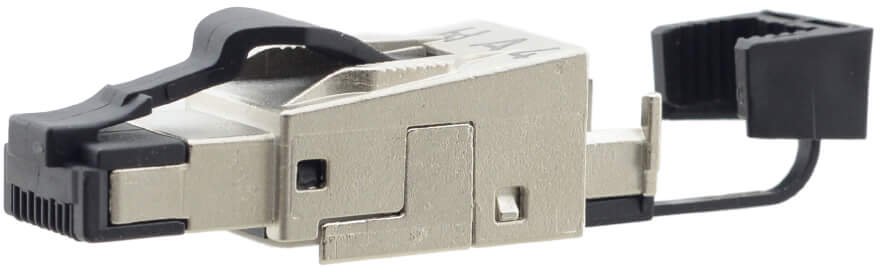

Robust Zinc Die-cast Housing |
For industrial use and a protected latch. |
Compact Design |
Makes the connector multiport-capable while being fully shielded. |
Easy Assembly |
Strain relief snapped on directly to stuffer cap and protected catch, no crimping tool needed. |
Reconnectable For Reuse. |
|
Transmission Characteristics |
CAT 6A per ISO/IEC 11801 Ed.2.2:2011-06. |
Wide Uses |
Suitable for 10Gb Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus and UPoE) and HDBaseT. |
Con-field-360 |
With variable cable entry, 8 positions possible. |
Availability |
Both connectors sold in packages of 10. |
Design |
Plug. |
Shielding |
Shielded. |
Transmision Technology |
Copper. |
Colour |
Black. |
Multi-port Capability |
Yes. |
Cable Access/outlet |
CON-FIELD-360: Variable, 8 positions, CON-FIELD: 180°. |
Category (iso) |
6A. |
Category (tia) |
6A. |
Class (iso/iec) |
EA. |
Remote Powering |
Yes. |
Poe/poe Plus |
IEEE 802.3af/IEEE 802.3at. |
Upoe |
Yes. |
HDBaseT |
Yes. |
Transmission Rate Up To 10gbit |
IEEE 802.3an. |
Termination, Solid Wire |
Conductor Cross Section AWG: AWG 26/1-22/1. |
|
Conductor Cross Section: 0.128-0.324mm2 |
|
Conductor Diameter: 0.409-0.643mm (0.016-0.025"). |
Termination, Stranded Wire |
Conductor Cross Section AWG: AWG 27/7-22/7. |
|
Conductor Cross Section: 0.111-0.355mm2 |
|
Conductor Diameter: 0.457-0.762mm (0.018-0.030"). |
Cable Sheath Diameter |
5.5-10.5mm (0.217-0.413"). |
Current |
1A (max). |
Rated Voltage |
50V (max). |
Contact Resistance |
20mΩ (max). |
Insulation Resistance |
500MΩ (min). |
Dielectric Strength |
Conductor-SHIELD: 1500V DC. |
Insertion And Withdrawal Force |
20N max. |
Life-number Of Mating Cycles |
750 min. |
Strain Relief |
Latching clip. |
Storage Temp. |
-40 - 70°C (-40 - 158°F). |
Operating Temp. |
-40 - 70°C (-40 - 158°F). |
Housing |
GD-Zn (Zinc die-cast). |
Contacts |
CuSn (tinned bronze). |
Contact Finish |
Ni + Au (nickel-gold). |
Latch |
Plastic. |
General Requirments |
ISO/IEC 11801 Ed. 2.2:2011-06; DIN EN 50173-1:2011-09; TIA/EIA 568-C. |
Office Buidings |
ISO/IEC 11801 Ed. 2.2:2011-06; DIN EN 50173-2:2011-09; TIA/EIA 568-C. |
Industrial Areas |
ISO/IEC 24702; DIN EN 50173-3:2011-09; TIA/EIA 1005. |
Residential Areas |
ISO/IEC 15018; DIN EN 50173-4: 2011-09; TIA/EIA 570-B. |
Ce |
Compliant. |
Rohs |
Compliant. |
Con-field |
Fixed connector |
