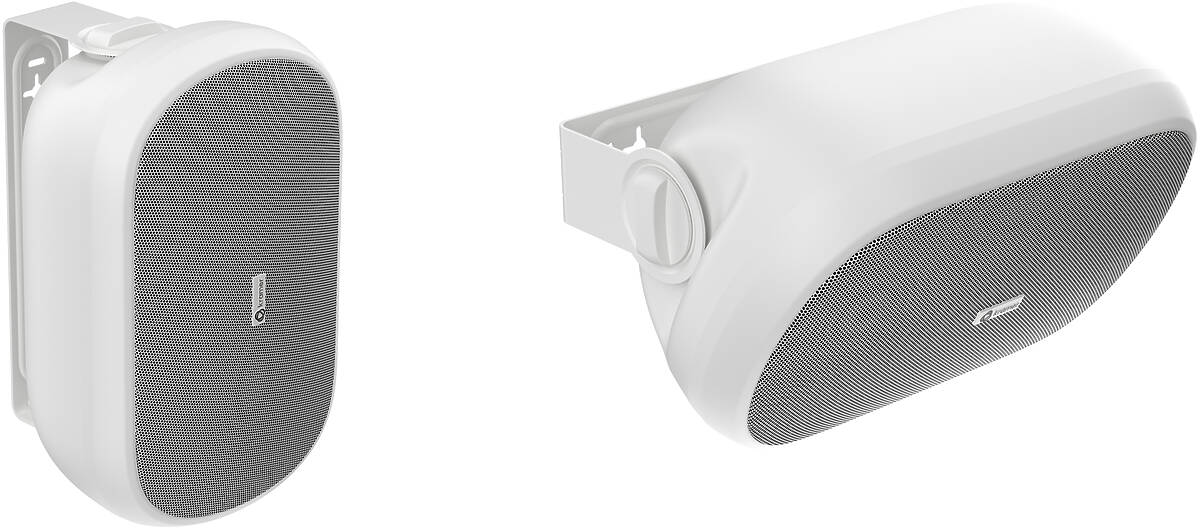

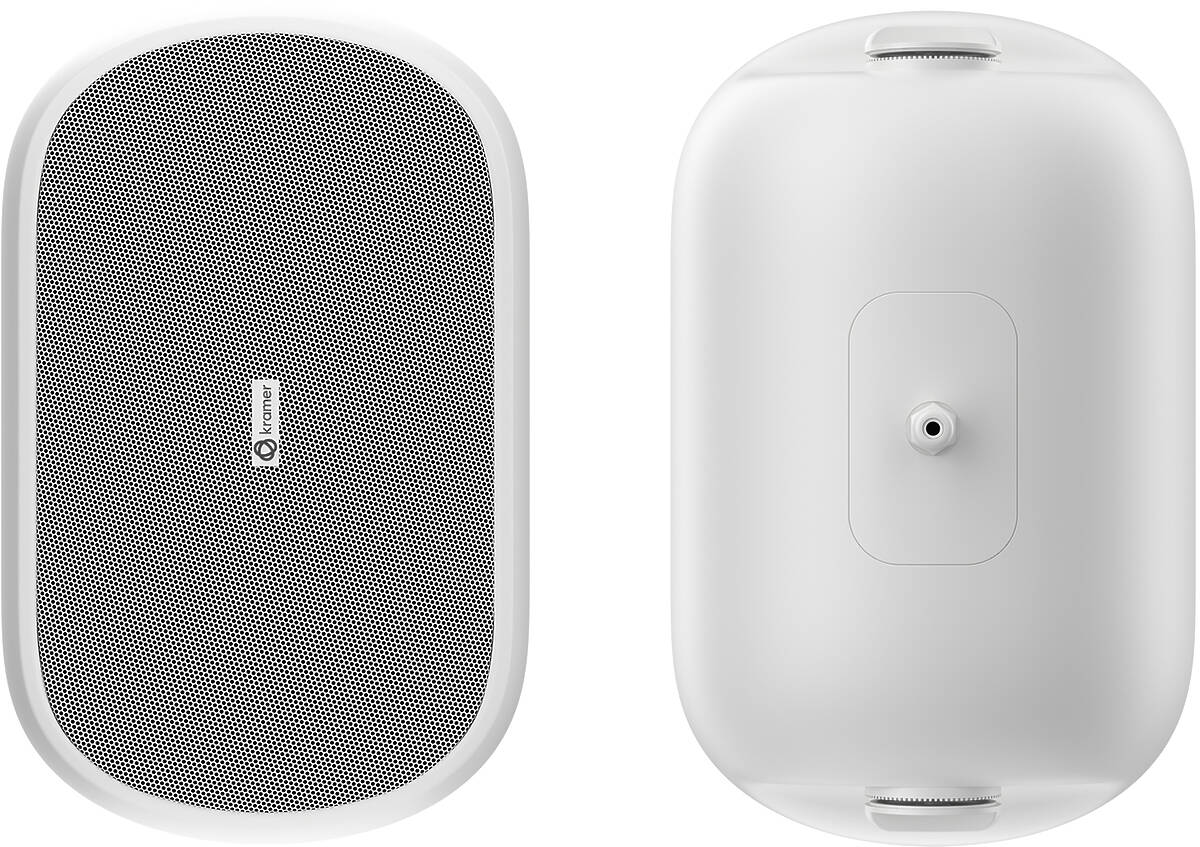

Kramer AW-8P (W)
1×All-weather, IP66/UL rated, 8" two-way wall mounted passive speaker finished in White
8 Ohm or 70V/100V; 60W continuous / 90W Peak
£138 (£165.60 inc. VAT)
Availability: In stock
Availability: In stock
Kramer AW-8P (W) (60-000109)
Kramer's AW Series are engineered to deliver exceptional sound performance in both indoor and outdoor environments. The AW-8P is an 8” high-performance all-weather passive speaker. This UL compliant/IP66-rated all-weather speaker is designed to withstand the elements while providing clear, high-quality audio, making it the perfect solution for mixed installations, in which some of the speakers are outdoor and other are indoor. The speaker supports both 8Ω low impedance as well as several 70V/100V high impedance modes. The speaker is available in both black & white colours.
Kramer AW-8P (W) Key Features
- All weather, 8”, 2–way wall mounted passive speaker
- Superb sound, high performance, esthetic design
- Low–impedance (8Ω) / high–impedance (70V/100V)
- Power ratings: 60W continuous / 90W peak
- Nominal sensitivity: 90dB SPL
- Maximum SPL: Continuous 108dB SPL / Peak 110dB SPL
- IP66 certified for outdoor installations
- UL1480A compliant for indoor installations
- Industrial design: wall–mounted, tool–less installation, available in black & white colours, removable logo
- 7 year warranty (Click Here for details)
- Order Code: 60-000109
Kramer AW-8P (W) Specifications
Audio |
|
| LF Driver | 200 mm (8”) with polypropylene cone and rubber |
| HF Driver | 25 mm (1”) liquid cooled soft–dome tweeter |
| Frequency Range(-10db) | 70Hz-20kHz |
| Frequency Response (±3db) | 87Hz-20kHz |
| Dispersion Angle | 116 ° conical dispersion (1 kHz to 4 kHz) |
Power ratings |
|
| @ 8W Low Impedance | 60W continuous / 90W peak |
| @ 100 V High Impedance | 60W/30W/15W |
| @ 70 V High Impedance | 60W/30W/15W/7.5W |
Sound Pressure Level (SPL) |
|
| Sensitivity (1w@1m, Free Field) | 90dB SPL |
| Maximum Spl | Continuous: 108dB SPL / Peak: 110dB SPL |
Mechanical |
|
| Type | Surface mounted vertical or horizontal |
| Mounting | Mounting bracket with toolless bracket screws |
| Connectors | 4-pin pluggable Euroblock connector, 28-12AWG |
| Weight Per Single Speaker | 4.5kg (9.92lbs) |
| Dimensions | 251mm x 200mm x 400mm / 9.88” x 7.88” / 15.75” |
| Without Bracket | |
| Dimensions | 251mm x 240mm x 400mm / 9.88” x 9.45” / 15.75” |
| With Bracket | |
| Shipping Dimensions | 322mm x 312mm x 467mm / 12.7" x 12.3" / 18.4" |
| Single Unit | |
| Shipping Dimensions | 630mm x 330mm x 485mm / 24.8" x 13.0" x 19.1" |
| 2 Units In A Master Box | |
| Shipping Weight | 5.4Kg / 11.9lbs (Single Unit) |
| Shipping Weight | 8Kg / 17.6lbs (Master Box) |
Material |
|
| Grill | Aluminium, removable logo |
| Baffle | V-0 Flame Retardant |
| Baffle & Back Enclosure | V-0 Flame Retardant |
| Bracket | Aluminium |
Environmental |
|
| Operating Temperature | -5° to +50°C (23° to 122°F) |
| Storage Temperature | -10° to +55°C (14° to 131°F) |
| Humidity | 30% to 85%, RHL non-condensing |
REGULATORY |
|
| Ul1480a Certified | UL 1480A compliant - Safety standards for fire-protective signaling in commercial spaces |
| Environmental | RoHS, REACH, WEEE |
| IP Rating | IP66 |
| In The Box | 1 speaker (single unit), 2 speakers are packed in a single master box |
| 1 mounting bracket + 2 toolless bracket screws | |
| 4-pin pluggable Euroblock connector, 28-12AWG | |
| Quick Start Guide | |
