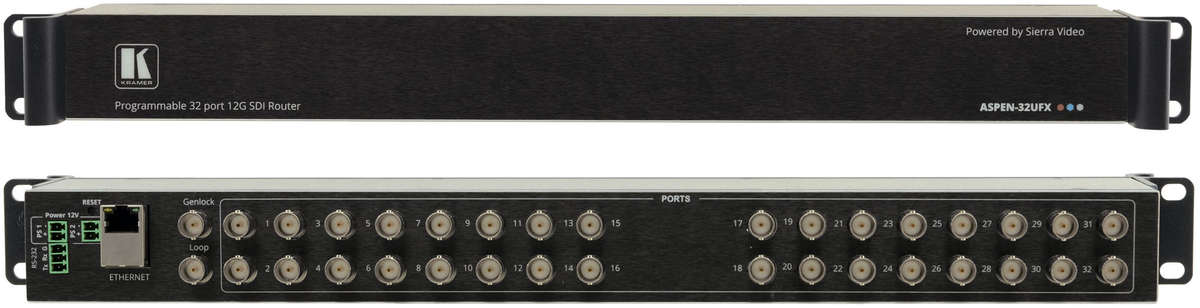

Kramer ASPEN-32UFX
32-Port 4K 12G SDI Matrix Switcher with interchangeable inputs/outputs
32 BNC terminals that can be configured for input or output; Max. 12Gbps
£2602 (£3122.40 inc. VAT)
Availability: In stock
Availability: In stock
Kramer ASPEN-32UFX (20-80474090)

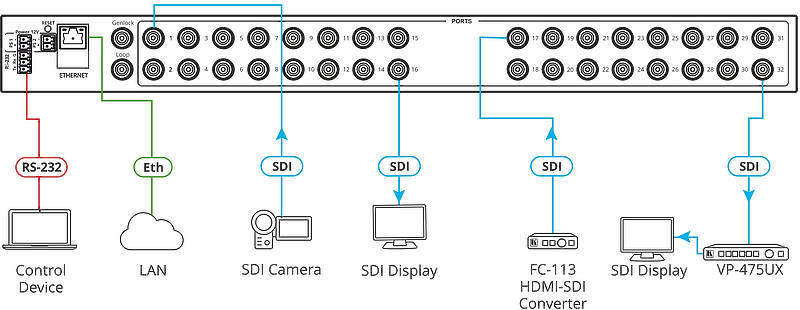

The Kramer ASPEN-32UFX is a 32-port matrix switcher for SDI signals of up to 12G SDI. Each SDI port can be defined as either an input or output, enabling flexible configurations such as a 1x31 distribution amplifier, 31x1 switcher, 16x16 matrix switcher or any other possible input-output combination. ASPEN-32UFX is easy to operate and control through the network using the intuitive web pages and through RS-232 using a serial controller.
Kramer ASPEN-32UFX Key Features
- Max. Data Rate — 12Gbps.
- HDTV Compatible.
- Multi-Standard Operation — 12G-SDI | SMPTE ST-2082-1, 3G-SDI | SMPTE 424M, HD-SDI | SMPTE 292M, SDI | SMPTE 259M/344M
- Kramer Equalization & re-Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
- Supports ANC Data — Embedded audio, teletext, time code, etc.
- Cable Equalization — Up to 300m for SD signals, 200m for 1.5G HD signals, 100m for 3G and 6G signals, and 80m for 12G signals.
- Clean Switching — When the sources are genlocked to the selected genlock input with a difference of no more than two lines of video.
- Versatile Genlocking — Using an Analogue signal.
- Memory Locations — Stores 8 multiple switches as presets to be recalled and executed when needed.
- 7 year warranty (Click Here for details)
- Order Code: 20-80474090
Kramer ASPEN-32UFX Downloads
Kramer ASPEN-32UFX Specifications
Connectivity |
|
Ports | 32 × 12G-SDI/3G-SDI/HD-SDI/SDI Video 75Ω on BNC connectors (by default, 1 to 16 are set as inputs and 17 to 32 are set as outputs) |
1 × Genlock 75Ω on a BNC connector | |
Video Specifications |
|
Standards | 12G-SDI - SMPTE ST-2082-1, 3G-SDI - SMPTE 424M, HD-SDI - SMPTE 292M, SDI - SMPTE 259M/344M |
Max Resolution | 4K@60Hz (4 2 2) |
Max Bandwidth | 12Gbps |
Extension Line | SD Signals Up to 300m |
1.5G HD Signals Up to 200m | |
3G Signals Up to 100m | |
6G Signals Up to 100m | |
12G Signals Up to 80m | |
Coupling | DC |
User Interface |
|
Controls | Remote |
Mechanical |
|
Power Source | 12V DC, 5A |
Consumption | 12V DC, 2A |
Standards Compliance | Safety CE |
Environmental RoHs, WEEE | |
Enclosure | Size 19", 1U |
Type Aluminium | |
Cooling Fan Ventilation | |
Accessories | Included Power adapter |
Product Dimension | 43.64×10.00×4.36cm (17.18×3.94×1.72") W×D×H |
Product Weight | 1.0kg (2.2lbs) approx. |
Shipping Dimension | 55.00×27.60×10.70cm (21.65×10.87×4.21") W×D×H |
Shipping Weight | 1.9kg (4.2lbs) approx. |
Environmental |
|
Operating Temp. | 0° to +40°C (32° to 104°F) |
Storage Temp. | -40° to +70°C (-40° to 158°F) |
Humidity | 10% to 90%, RHL non-condensing |
Replacement Power Supplies
Product | Description | Price | Inc. VAT |
Kramer PS-1202 | 12V DC/2A Desktop Power Supply with power cord | £42 | £50.40 |
Kramer PS-1202-O | 12V DC/2A Open Head Power Supply | £33 | £39.60 |
Kramer PS-1205 | 12V DC/5A Desktop Power Supply with power cord | £65 | £78.00 |
Kramer VA-102P12 | 10-Output 12v DC/10A Power Supply (Max 1 Amp per channel) | POA |
Kramer ASPEN-32UFX Possible Alternatives
Product Code | Description | Price | Inc. VAT |
Kramer Aspen 3232HD-3G | 32x32 3G HD-SDI Router with IP and RS-232 Control Max 200m at 1.5G, 155m at 3G; Max. Bandwidth 3Gbps | POA |
