Kramer 6420N
Balanced stereo audio to digital audio format converter
£668 (£801.60 inc. VAT)
Availability: In stock
Availability: In stock
Kramer 6420N (90-70520090)
The Kramer 6420N is a high performance format converter for balanced audio signals. The unit converts two channels of balanced audio signals to AES/EBU, AES-3id, S/PDIF and TOSLINK® optical digital outputs simultaneously.
Kramer 6420N Key Features
- Standards — AES/EBU, AES-3id, S/PDIF, TOSLINK® optical.
- Sampling — 32, 44.1, 48, & 96kHz (selectable).
- Professional or Consumer Bit Rate Selection.
- Left & Right Gain Conversion Control — 0dB, | 12dB, | 16dB, | 20dB or | 24dB.
- Compact DigiTOOLS® — 3 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter.
- Up to 7 year warranty (Click Here for details)
- Order Code: 90-70520090
Kramer 6420N Downloads
Kramer 6420N Specifications
Connectivity |
|
| Inputs | 1 × balanced stereo audio line in (10k) on detachable terminal blocks |
| Outputs | 4 × digital audio outputs: AES 75Ω |
| AES/EBU | |
| S/PDIF | |
| TosLink Optical | |
Audio Specifications |
|
| Sample Rate Conversion | 32kHz, 44.1kHz, 48kHz, 96kHz |
| Max. Input Gain | -12dB: 3.1Vrms |
| - 24dB: 11.5Vrms | |
| Conversion Gain | -12dB, - 16dB, - 20dB, -24dB |
| THD+n | Better than - 92dB |
| Idle Channel Noise | Better than 99dBFS CCIR-RMS |
| Signal-to Noise Ratio | Better than 98dBFS CCIR-RMS |
User Interface |
|
| Controls | 4 × sample rate selector switches, system bit selector switch, 8 gain switches, ON LED |
Mechanical |
|
| Coupling | AC |
| Power | 12V DC/1.25A, 150mA |
| In The Box | 6420N, Power supply, mounting bracket |
| Optional | 19" rack adapters |
| Product Dimension | 12.00×7.15×2.44cm (4.72×2.81×0.96") W×D×H |
| Product Weight | 0.1kg (0.3lbs) approx. |
| Shipping Dimension | 23.20×12.00×8.90cm (9.13×4.72×3.50") W×D×H |
| Shipping Weight | 0.5kg (1.1lbs) approx. |
Environmental |
|
| Operating Temp. | 0° to +40°C (32° to 104°F) |
| Storage Temp. | -40° to +70°C (-40° to 158°F) |
| Humidity | 10% to 90%, RHL non-condensing |

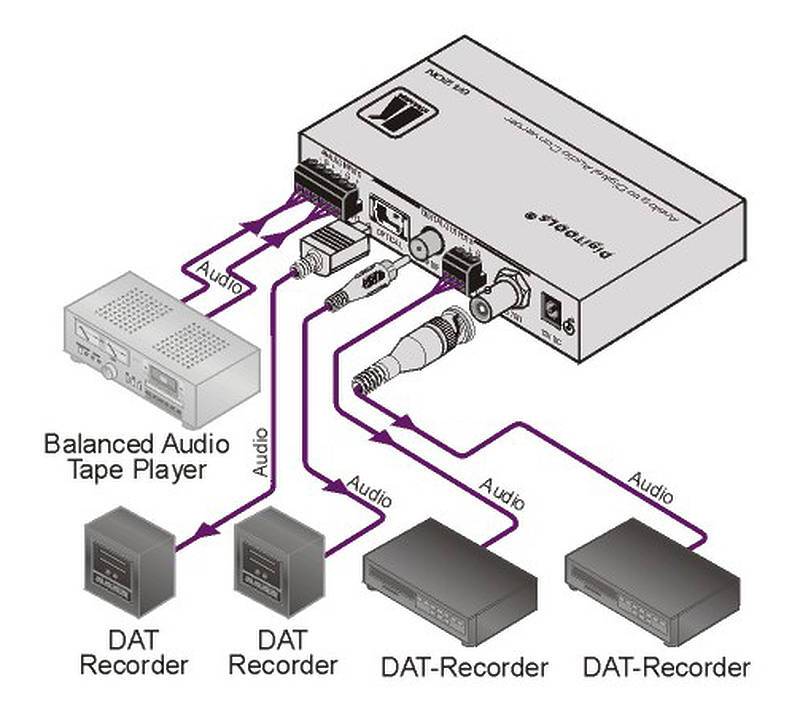

Kramer 6420N Usage Diagram
Replacement Power Supplies
| Product | Description | Price | Inc. VAT |
| Kramer PS-1202 | 12V DC/2A Desktop Power Supply with power cord | £36 | £43.20 |
| Kramer PS-1202-O | 12V DC/2A Open Head Power Supply | £36 | £43.20 |
| Kramer PS-1205 | 12V DC/5A Desktop Power Supply with power cord | £55 | £66.00 |
| Kramer VA-102P12 | 10-Output 12v DC/10A Power Supply (Max 1 Amp per channel) | £371 | £445.20 |
Kramer 6420N Possible Alternatives
| Product Code | Description | Price | Inc. VAT |
| Kramer 482xl | Balanced/Unbalanced Stereo Audio Transcoder | £138 | £165.60 |
