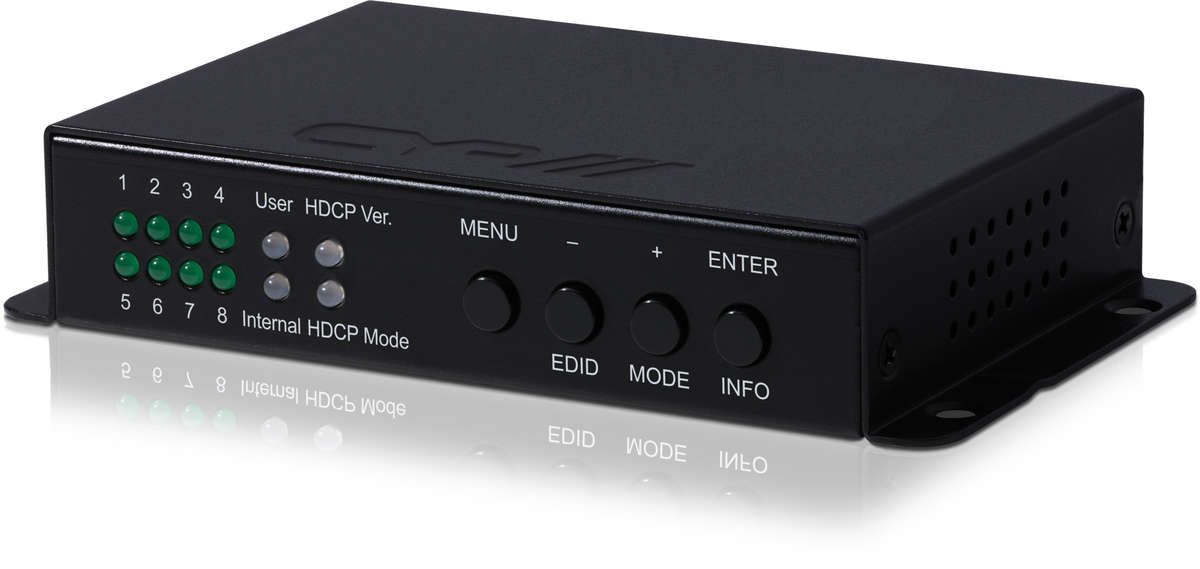

CYP RE-EDID-4K22

4K HDMI EDID Manager

1 × HDMI Input; 1 × HDMI output; UHD and 4K support; Max bandwidth 18Gbps

£169 (£202.80 inc. VAT)
Availability: In stock

CYP RE-EDID-4K22

The CYP RE-EDID-4K22 is designed to manage and manipulate the HDMI/DVI EDID information provided to a HDMI source device by a connected display. EDID contains critical information about the capabilities of the connected display, including audio and video format support, HDMI feature support, etc. This product aims to simplify the technical complications that often arise when performing video system integration, home cinema installation, integrating commercial displays or audio/video equipment testing. It also supports EDID Emulation and Bypass modes. This device is perfect to overcome source and screen compatibility issues, particularly when integrating PC's into an AV system.

CYP RE-EDID-4K22 Key Features

  • HDMI input and output with 18Gbps (6G) 4K UHD support
  • HDCP 1.4 and 2.2 compliant
  • Supports HD resolutions up to 3840x2160@60Hz (4:4:4, 8-bit) & 4096x2160@60Hz (4:4:4, 8-bit)
  • Supports 48-bit Deep Color up to 1080p@60Hz
  • Supports Four different EDID modes : Read / Write / Emulate / Bypass modes
  • Read Mode : Reads the TV/display's EDID information
  • Write Mode : Overwrites the TV/display's EDID information (TV/display needs to be able to support overwrite function)
  • 8 unique sets of EDID settings may be stored via the learning procedure.
  • Emulator Mode : Allows the source device to read the selected EDID information from the unit's default or learnt EDID memory
  • Bypass Mode : Allows the source device to read the EDID information from the TV/display directly
  • Supports DVI sources when used with a DVI to HDMI adaptor (not supplied)
  • Supports CEC functionality

CYP RE-EDID-4K22 Downloads

4K 4096*2160 and 3840*2160 Resolution
4:4:4 Chroma sampling

CYP RE-EDID-4K22 Specifications

Inputs 1x HDMI [1x HDMI Uncompressed AV and Data]

1 x USB 3 Type B [1x Service and PC port Power & Data]

Outputs 1x HDMI [1x HDMI Uncompressed AV and Data]
PSU: 5V/2.6A
Dimensions 83mm [W] x 128mm [D] x 25mm [H]
Net Weight 260g
Gross Weight 715g

CYP RE-EDID-4K22 Usage Diagram



CYP RE-EDID-4K22 Usage Diagram
