CYP DS-MSC14-4K22

Use a single HDMI source of up to 4K resolution to create a 4 panel video wall

Can be cascaded to create a 9 display video wall; Max 4k @ 60Hz

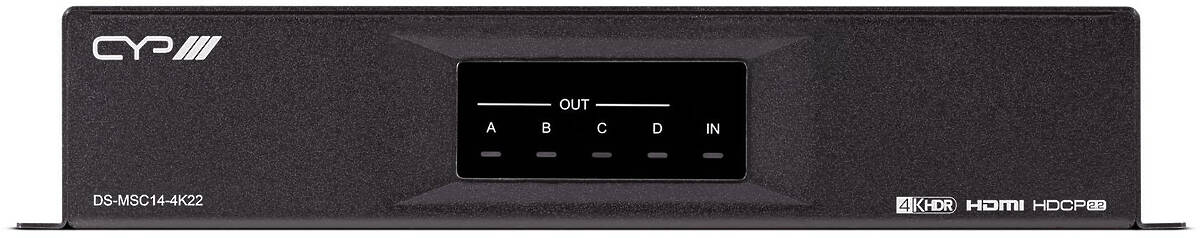

CYP DS-MSC14-4K22 Use a single HDMI source of up to 4K resolution to create a 4 panel video wall product image. Click to enlarge.
CYP DS-MSC14-4K22 Use a single HDMI source of up to 4K resolution to create a 4 panel video wall connectivity (terminals) product image CYP DS-MSC14-4K22 Use a single HDMI source of up to 4K resolution to create a 4 panel video wall product image
£891 (£1069.20 inc. VAT)
Availability: In stock

CYP DS-MSC14-4K22

The CYP DS-MSC14-4K22 has been designed to provide an easier and more convenient way to create and deploy video wall installations.

Delivering complete scalability, and capable of driving up to four 1080p displays, all from a single 4K UHD source. For larger installations multiple DS-MSC14-4K22 units can be combined to create up an 8×8 configuration.

Each of the 4 outputs support 1080p@60Hz to generate a true 4K video wall. Built-in advanced EDID management, user configurations and advanced HDCP processing allows the DS-MSC14-4K22 to suit almost any installation scenario. Control is via RS-232, Telnet IP and PC application which allow full control of the DS-MSC14-4K22 from adjusting the bezel correction to pre-set video wall layouts.

CYP DS-MSC14-4K22 Key Features

  • Input supports UHD resolutions up to 4096×2160@60Hz (4:4:4, 8-bit)
  • Audio supported LPCM 2CH, 6CH, 8CH/AC3/DTS/Dolby Digital Plus/ Dolby TruHD & DTS-HD
  • Dedicated PC application for easy control of the unit
  • The DS-MSC14-4K22 can be combined together using a HDMI splitter allowing the creation of larger video walls.
  • The DS-MSC14-4K22 can be controlled via RS-232, Telnet IP control or our PC control software which can be found on the downloads tab of the website.
  • Video wall configurations can be pre-loaded into the our control application allowing simple switching between the video wall layouts.
  • HDMI 2.0, HDCP 2.2 and DVI compliant

CYP DS-MSC14-4K22 Downloads

4K 4096*2160 and 3840*2160 Resolution
4:4:4 Chroma sampling

CYP DS-MSC14-4K22 Specifications

Inputs 1 × HDMI HDMI Uncompressed AV and Data
1 × RJ45 IP Control
1 × 9pin D-sub RS-232 Data
1 × USB Type A Service Port Propriety Data
Outputs 4x HDMI HDMI Uncompressed AV and Data
PSU 24V/1.25A
Dimensions 231mm [W × 174mm [D × 44mm [H
Net Weight 0.98kg
Gross Weight 1.50kg

CYP DS-MSC14-4K22 Usage Diagram



CYP DS-MSC14-4K22 Usage Diagram
