CYP AU-A300
2 Channel 30W Mini Stereo amplifier with Telnet/Web UI control
2 × 30W @ 8 Ohms, 2 × 45W @ 4 Ohms
£423 (£507.60 inc. VAT)
Availability: In stock
Availability: In stock

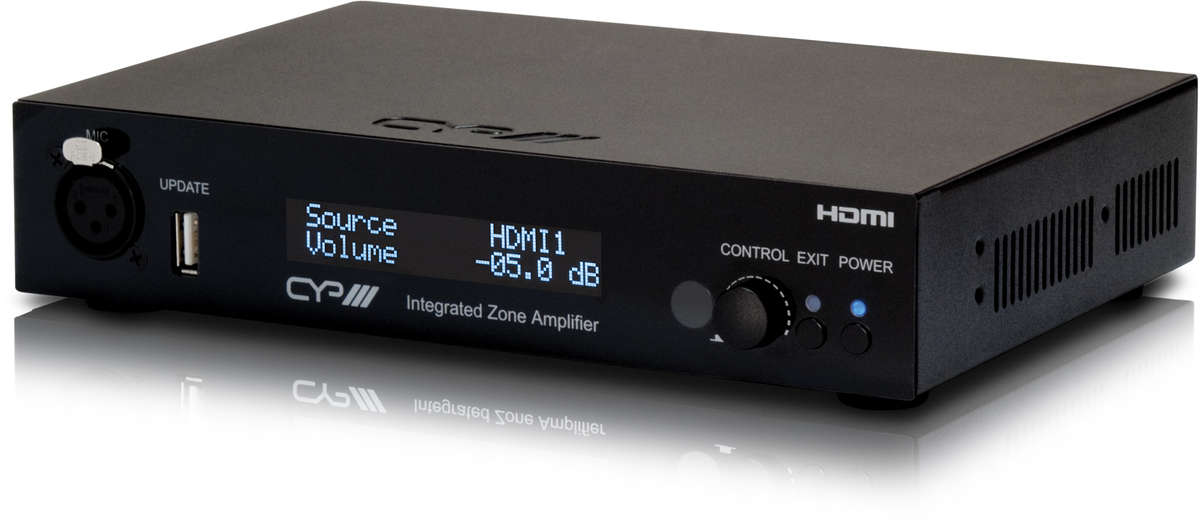

CYP AU-A300
The AU-A300 is a compact 2 channel digital amplifier that is perfect for providing high quality audio distribution into remote AV zones within any multi-room installation. This advanced solution can integrate HDMI audio outputs from a CYP matrix, local inputs (iPod and MP3 etc) via the stereo and digital inputs and even utilise the audio output from a TV, which is growing in popularity as a dedicated source within an AV system.
CYP AU-A300 Key Features
- 30W per channel digital stereo Amplifier
- Inputs: 2 x HDMI, 1 x L/R Stereo audio, 1 x Optical, 1 x Digital Co-Ax, 1 x 3.5mm Stereo
- Outputs: 1 x HDMI, 1 x Optical, 1 x Digital Co-Ax, 1 x L/R Stereo (Line Level output), Speaker Terminals
- Control via remote control, RS-232 or IP (Web GUI or Telnet)
- Simultaneous audio outputs
- Dedicated Microphone input for commercial applications
- Supports Digital to Analogue (DAC) and Analogue to Digital (ADC) conversion
- Compact design for remote application
CYP AU-A300 Specifications
Connectivity |
|
| Inputs | 2 × HDMI for HDMI Uncompressed AV and Data |
| 1 × XLR for Microphone | |
| 1 × Toslink for Optical - 2 Channel LPCM | |
| 1 × RCA for Coaxial - 2 Channel LPCM | |
| 2 × RCA for Analogue - Stereo (L/R) | |
| 1 × 3.5mm Stereo mini-jack for Analogue - Stereo(L/R) | |
| 1 × RJ45 for IP Control | |
| 1 × 3.5mm Stereo mini-jack for Infra Red Receiver | |
| 1 × 9pin D-sub for RS-232 Data | |
| Outputs | 1 × HDMI for HDMI Uncompressed AV and Data |
| 1 × Toslink for Optical - 2 Channel LPCM | |
| 1 × RCA for Coaxial - 2 Channel LPCM | |
| 2 × RCA for Analogue - Stereo (L/R) | |
| 4 × Speaker Binding Posts for Speaker Level Stereo Output | |
Mechanical |
|
| PSU | 24V/4.16A |
| Dimensions | 255mm W × 170mm D × 48mm H |
| Net Weight | 1060g |
| Gross Weight | 2260g |
CYP AU-A300 Usage Diagram
