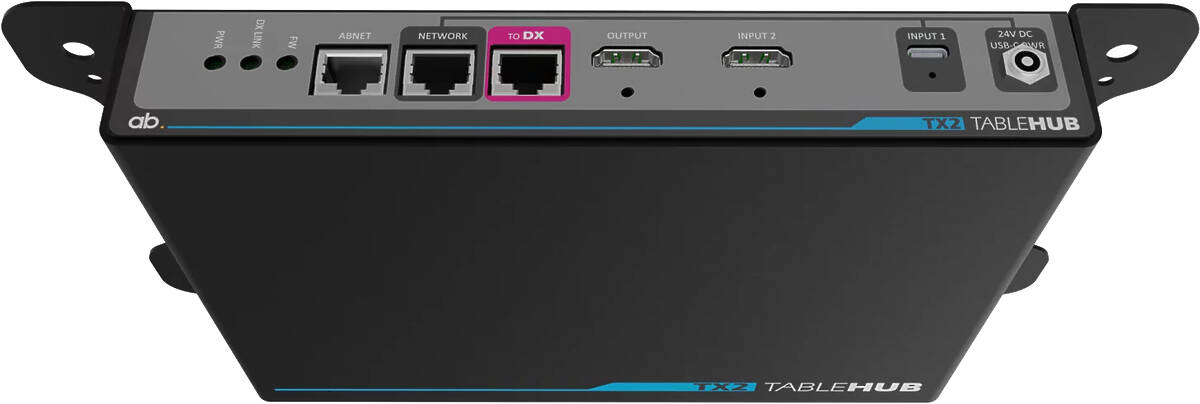

Ashton Bentley TX2 Table Hub
2:1 HDMI 2.0 / USB-C over Twisted Pair Transmitter
1 × HDMI, 1 × USB-C, 1 × ABNet, 1 × RJ45 Network Inputs; 1 × RJ45 TP, 1 × HDMI Output
£944 (£1132.80 inc. VAT)
Availability: In stock
Availability: In stock
Ashton Bentley TX2 Table Hub (900-00550)
A simple low cost two-box solution providing the complete audio-visual infrastructure for meeting rooms.
Designed to partner with the latest Video Conferencing solutions, the boxes replace the traditional rack of AV equipment.
Providing USB-C and HDMI connectivity, signal routing and control. A complete meeting room solution in two boxes, the TX2 Table Hub Transmitter and DX2 Room Hub.
System Basics
The TX2 Table Hub should be installed under a table, in a lectern or wherever connection to laptops is required.
The DX2 Room Hub should located near the display or where the Video Bar or VC equipment is located.
The two boxes are linked with a single Cat6a/Cat7 cable, which can be up to 35m. Simple to install, with minimal cabling.
See also: Ashton Bentley DX2 Room Hub
Ashton Bentley TX2 Table Hub Key Features
- Designed to connect USB-C and HDMI inputs over distance to the DX2 Room Hub
- Fully featured USB-C and HDMI connectivity with input signal sensing
- Uncompressed 4K60 4:4:4 resolution video routing / transmission
- Independent EDID control of each input
- HDCP support or blocking
- Independently scalable HDMI output port for local monitor or content ingest
- Network port through to USB-C device
- USB 2.0 with up to 350 Mbit/s data rate
- ABNET control connection for AB Tablebox touch panel
- Cat6a/Cat7 link to DX2 (powered from DX2 via this link)
- Input for optional USB-C laptop charging (100W)
- Powered over Cat7 link from DX2
- Order Code: 900-00550
Ashton Bentley TX2 Table Hub Downloads
Ashton Bentley TX2 Table Hub Specifications
Connectivity |
|
| Video Inputs | 1 × HDMI |
| 1 × USB-C | |
| Outputs | 1 × HDMI |
| 1 × RJ45 for DX2 Receiver | |
Processing |
|
| HDMI | Up To 4k @ 60 Hz 4 |
| Supports HDCP 2.2 (Can be disabled if needed) | |
| 16 Gb/s video data output to DX2 | |
| USB-C | Up To 4k @ 60 Hz 4 |
| USB Power delivery 2.0 (device charging up to 20v @5 A (100W)), requires optional | |
| USB-C Charging Power Supply (Part No. 900-00585) | |
| USB 2.0 with up to 350 Mbit/s data rate | |
| Integral USB-C to 10/100/1000BaseT Ethernet port | |
| Video Inputs | Inputs have integrated equaliser for improved signal integrity |
| Signal auto sensing on all inputs | |
| HDCP can be disabled, to remove HDCP issues with VC codecs | |
| EDID can be selected from presets or copied from connected display via the built-in System Configurator setting page. | |
| Output routing is configurable in System Configurator to be either HDMI or USB-C video. | |
| Output switching can be automatic (on connecting a source) or manual via the Tablebox touch panel | |
| Audio | HDMI embedded audio |
| ABNET (Control) | ABNET ™ expansion bus for Tablebox Touch Panel |
Mechanical |
|
| Power | Powered by POC from DX2 unit |
| USB-C power provided by local 24v 120W PSU ) | |
| Requires optional USB-C Charging Power Supply (Part No. 900-00585) | |
| Environmental | Operating Temperature Range 0 - 45 degrees C |
| Operating Humidity 10% to 90% non condensing | |
| Warranty 3 Year | |
| Dimensions | 250 × 155 × 40mm |
| In Th Box | 1 × TX2 Table Hub Assembly 810-00302 |
| 1 × 10m CAT7 Cable 115-00087 | |
| 1 × TX2 Quick Start and Safety Guide | |
