AJA 3G-AM-BNC
3G-SDI 8-Channel AES Embedder/Disembedder
£856 (£1027.20 inc. VAT)
Availability: Please Call
Availability: Please Call
AJA 3G-AM-BNC

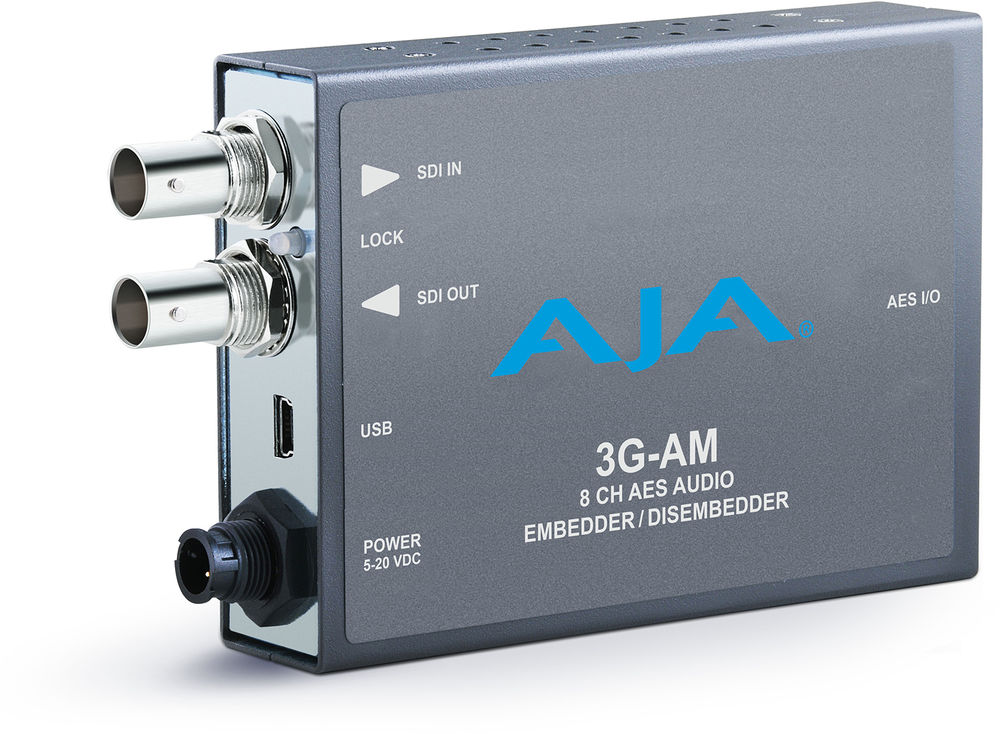

The 3G-AM is an 8-Channel AES audio Embedder/Disembedder with support for 3G-SDI input and output up to 1080p 60. Audio disembedding is always functional, providing 4 AES outputs. Audio embedding is user selectable, on a channel pair basis, to either pass 3G-SDI input audio or to embed input AES audio from the breakout cable. AES inputs are sample rate converted to a 48 KHz rate synchronous to the video input. The 3G-AM automatically detects and configures to the input video standard.
AJA 3G-AM-BNC Key Features
- 3G-SDI Embedder/Disembedder
- 8-Channel AES I/O
- Supplied breakout cables for balanced AES - XLR connectors
- USB connectivity via AJA MiniConfig software
- Dipswitch configuration
- 5-20VDC Power
AJA 3G-AM-BNC Specifications
Connectivity |
|
| Video Input | SDI, 1 x BNC |
| 3G SMPTE 424/425M | |
| HD SMPTE 292/296M | |
| SD SMPTE 259M | |
| Video Output | SDI, 1 x BNC |
| Audio | AES PCM audio, 1 x 25 pin D female connector on converter, 8-Channels in, 8-Channels out, selectable in pairs |
| Breakout cable provided with 1 x 25 pin D male connector: | |
| 4 x XLR female input breakout connectors (AES3 110 ohm) | |
| 4 x XLR male output breakout connectors (AES3 110 ohm) | |
Video Input Formats |
|
| 1 x 3 Gb SDI (level A or B) | (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 |
| (2K) 2048 x 1080psf 23.98, 24, 25, 29.97, 30 | |
| (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 | |
| (HD) 1920 x 1080psf 23.98, 24, 25, 29.97, 30 | |
| (HD) 1920 x 1080i 25, 29.97, 30 | |
| (HD) 1280 x 720p 50, 59.94, 60 | |
| 1 x 1.5 Gb SDI | (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30 |
| (2K) 2048 x 1080psf 23.98, 24, 25, 29.97, 30 | |
| (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30 | |
| (HD) 1920 x 1080psf 23.98, 24, 25, 29.97, 30 | |
| (HD) 1920 x 1080i 25, 29.97, 30 | |
| (HD) 1280 x 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 | |
| 1 x 270 Mb SDI | (SD) 625i |
| (SD) 525i | |
Video Output Formats |
|
| Video Out is a delayed, reclocked version of Video In, at same frame rate, etc. | |
| Video Latency | (time measured between video input and video output connector): |
| 3G level A = 3.2 usec | |
| 3G level B = 6.1 usec | |
| HD (1.5 Gb) = 6.3 usec | |
| SD (270 Mb) = 17.2 usec | |
Audio Data Formats |
|
| AES3-2003 | |
| SMPTE 337M | |
Digital Audio Converters |
|
| 24-bit | |
Embedded Audio |
|
| SMPTE 272M (SD): 20-bit, 48 KHz synchronous | |
| SMPTE 299M (3G/HD): 24-bit, 48 KHz synchronous | |
| Incoming embedded audio can be passed, removed, or overridden | |
| Up to 16 channels supported | |
| NOTE: 2048x1080p/psf 29.97 and 30 formats support a maximum of 8-Channels embedded audio | |
Embed Path Audio Latency |
|
| (time measured between audio input and video output connector): | |
| 1500 usec (SRC ON) | |
| 400 usec (SRC OFF) | |
Disembed Path Audio Latency |
|
| (time measured between video input and audio output connector): | |
| 210 usec | |
General |
|
| User Controls | External DIP switch |
| USB port used with Mini-Config software application to configure device via PC/Mac | |
| Size (w x d x h) | 5.8" x 3.1" x 1" (147 x 79 x 25 mm) |
| Power | +5-20VDC, 5 watts. power supply required, included with purchase |
| Environment | Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F) |
| Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F) | |
| Operating Relative Humidity: 10-90% noncondensing | |
| Operating Altitude: <3,000 meters (<10,000 feet) | |
