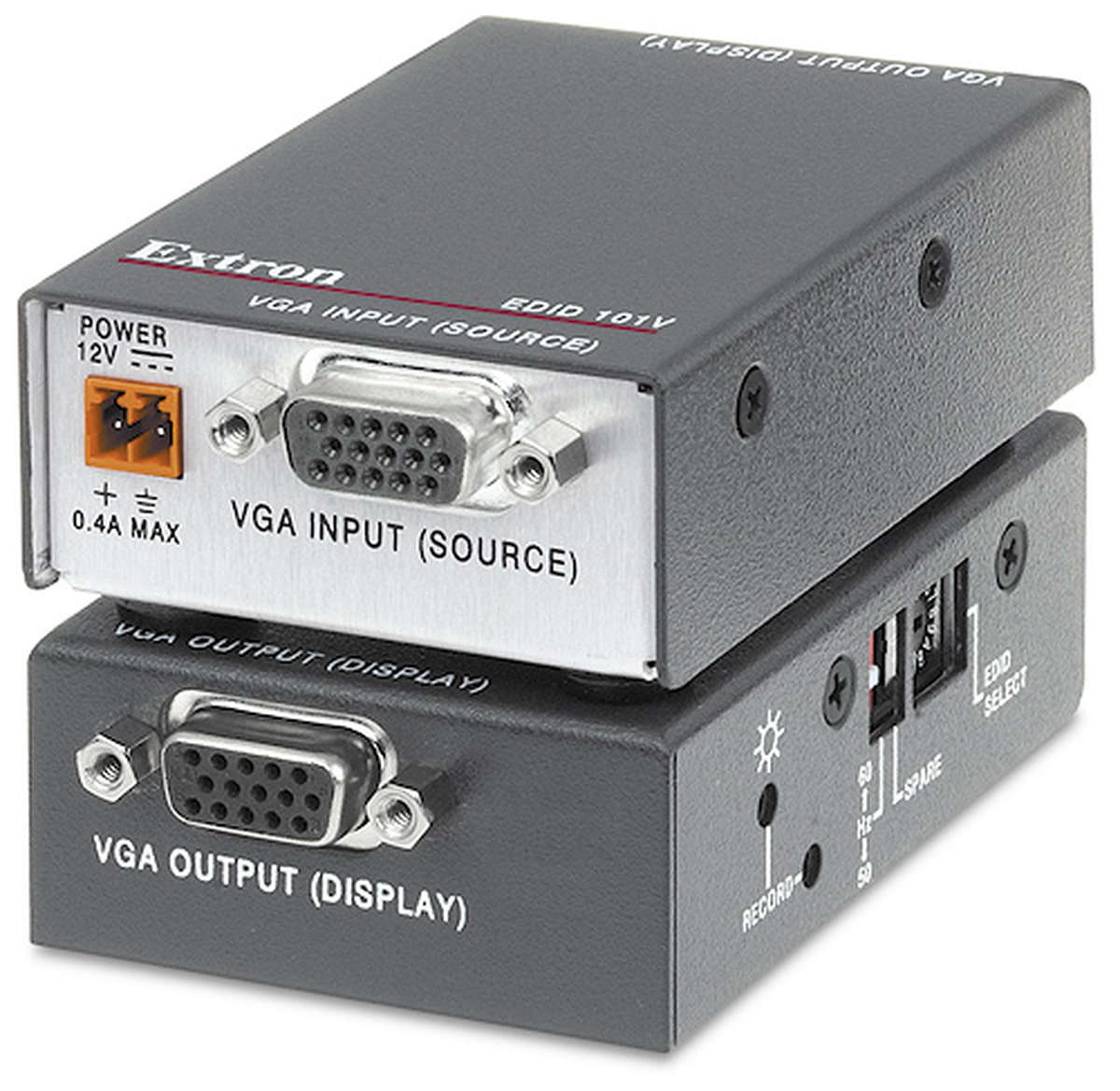

Extron EDID 101V (60-991-01)
EDID Emulator for VGA with EDID Minder
£232 (£278.40 inc. VAT)
Availability: In stock
Availability: In stock
The Extron EDID 101V is an EDID Emulator featuring EDID Minder, an Extron exclusive technology designed to provide constant and continuous EDID - Extended Display Identification Data management for VGA source devices. EDID Minder ensures that the source powers up properly and reliably outputs content. Pre-stored EDID is communicated to the source based on a user-selected resolution and refresh rate. Alternatively, this EDID emulator can be set to capture and store EDID information when connected to a display. The EDID 101V is housed in a compact 1-high, one-eighth rack width enclosure for convenient, discreet installation.
Extron EDID 101V Key Features
- Input: 15-pin HD connector
- Output: 15-pin HD connector
- EDID Minder automatically manages EDID communication between connected devices - EDID Minder ensures that all sources power up properly and reliably output content for display.
- Selectable resolutions and refresh rates - Pre-stored EDID is communicated to the source based on a user-selected resolution and refresh rate.
- EDID capture mode - When connected to a display, the EDID 101V offers the option of capturing and then storing EDID information from the display device.
- Can be powered directly from the VGA source - The EDID 101V can be powered through the incoming VGA source signal, eliminating the need for power supply installation.
- 1" (2.5 cm) high, one-eighth rack width metal enclosure - Housed in a compact, durable metal enclosure, the EDID 101V is small enough to fit anywhere and can be mounted in a rack.
- Optional energy-efficient external universal power supply, part # 70-775-01 - Provides worldwide compatibility, low power consumption, and reduced operating costs.
