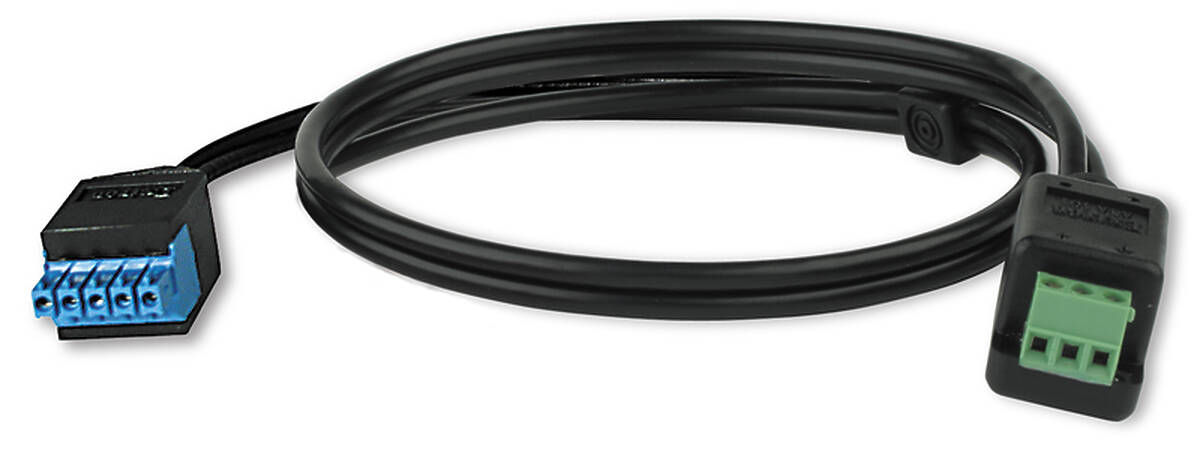

Extron ASA 131 (60-740-01)

Passive Audio Summing Adapter with Captive Screw Plug Input and Balanced Output

For pricing and configuration options please call or email us.

The Extron ASA 131 Audio Summing Adapter is a convenient, single-cable solution for combining two-channel stereo audio into a mono audio signal. It is ideal for summing stereo signals for use in mono PA systems in churches, halls, arenas, stadiums, and other environments where stereo signals would result in cancellation. Because it is a small and passive device, the ASA 131 is especially useful in systems where power and space are limited.

The ASA 131 includes a captive screw plug for balanced stereo input signals and a captive screw connector for balanced mono audio output. It is designed as a 2 foot long adapter with a resistor network to properly sum stereo signals without signal loss or damage to source equipment.

Extron ASA 131 Key Features

Converts balanced stereo audio to balanced mono audio
Input: Captive screw plug
Output: Captive screw terminal
Designed for use with Extron products featuring balanced audio outputs on captive screw connectors
Resistor network provides passive audio summing
Compact design for easy installation into small spaces or behind equipment in a rack
2 foot (60 cm) length
