Extron MIX 301 (60-737-01)

Three Channel Balanced and Unbalanced Line Level Mixer

£270 (£324.00 inc. VAT)
Availability: In stock

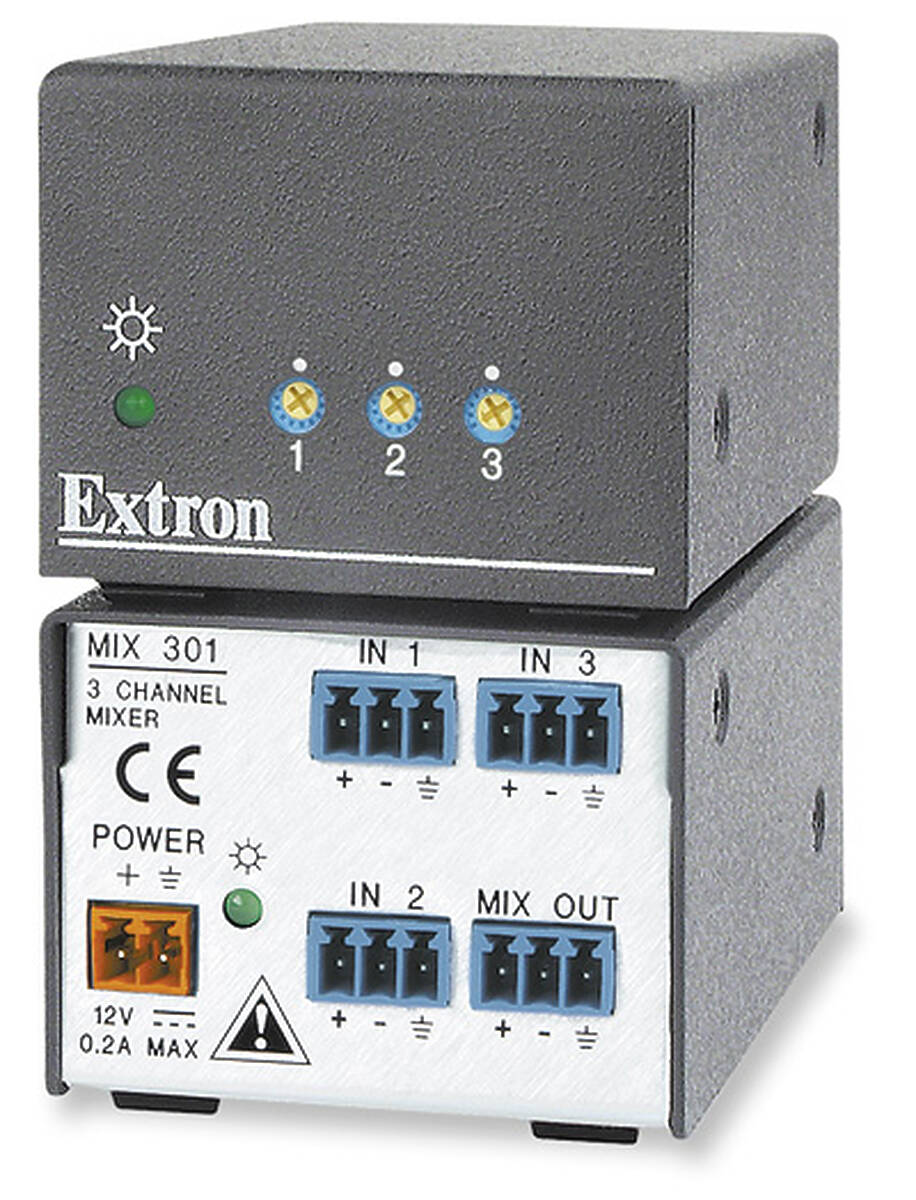

The Extron MIX 301 Three Channel Audio Mixer combines three line level mono audio sources into a single line level mono output. It accepts balanced or unbalanced input signals, and provides a balanced or unbalanced output. The MIX 301 accommodates input sources with various impedances. Three recessed input gain controls on the front panel enable adjustment of mix levels from -80 dB to +20 dB.

The MIX 301 is ideal for a wide variety of applications such as retail environments, presentations, and classrooms. It is an economical problem-solver for incorporating additional audio sources into a switcher or projector. The MIX 301 is housed in a compact 1U, one-eighth rack width metal enclosure.

Extron MIX 301 Key Features

Inputs: Captive screw connectors
Output: Captive screw connector
Balanced and unbalanced signal compatibility - The MIX 301 accepts balanced and unbalanced input sources, and outputs balanced or unbalanced audio, so that professional and semi-professional equipment can be accommodated.
Gain control for each channel with a wide adjustment range from -80 dB to +20 dB - Three front panel rotary trim pots provide level adjustment for each input.
Compact size for easy installation in a rack or in limited space - The MIX 301 can be installed behind equipment in a rack, or anywhere that space is at a premium.
Rack-mountable 1U, one-eighth rack width metal enclosure
External Extron Everlast™ power supply included, replacement part #70-1175-01 - Provides worldwide power compatibility with high‑demonstrated reliability and low power consumption. This power supply is compatible with the ZipClip 50 Mounting Kit.
Extron Everlast Power Supply is covered by a 7‑year parts and Labour warranty
