Extron NetPA U 2004 FX (60-2028-01)

4 Channel Configurable Output Amplifier with Dante and DSP

200 Watts Per Channel at 4Ω or 8Ω; 70V or 100V

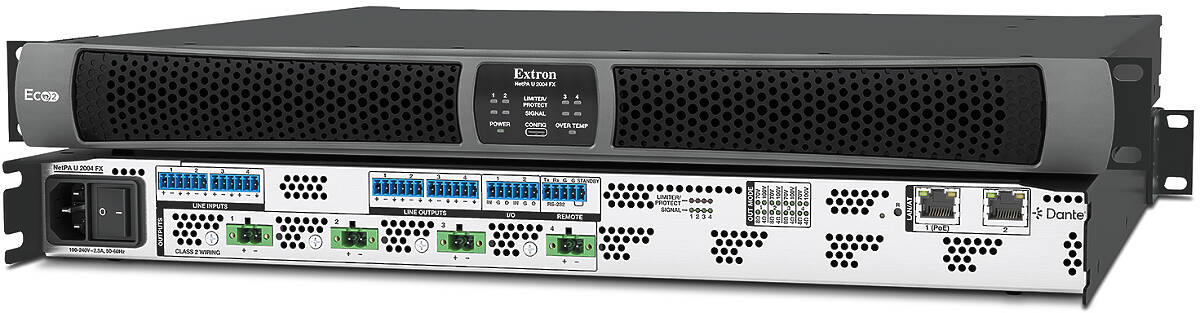

Extron NetPA U 2004 FX 60-2028-01 product image

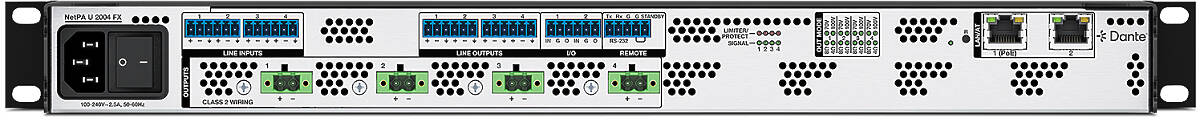

Extron NetPA U 2004 FX 60-2028-01 connectivity (terminals)

£3050 (£3660.00 inc. VAT)
Availability: In stock

The Extron NetPA U 2004 FX is a four channel, high performance Dante-enabled power amplifier with software configurable outputs that can simultaneously drive 8Ω, 4Ω, 70V, or 100V loads in multi-zone systems. For maximum flexibility, the total power of two adjacent 200 watt channels is shared, delivering up to 400 watts per single channel, according to system requirements. With its integrated DSP, the NetPA U 2004 FX includes essential signal processing for complex, decentralized systems while AES67 support ensures compatibility with other network audio devices. This Ecofficient Level 2 design features InstaWake, the ability to go from standby to full power in under 50 milliseconds. The fan cooled 1U enclosure does not require empty rack spaces for ventilation and includes front and rear rack mount hardware for stability.

Dante Audio Networking

Dante provides scalable audio transport, with Dante Domain Manager support, over a local area network using standard Internet protocols. The family of Dante-enabled products from Extron work together as part of a complete networked audio system solution and integrate with other Dante-enabled products to create efficient system designs. With AES67 support, NetPA Ultra FX amplifiers accommodate a range of audio routing needs in a variety of applications.

Setting up a network of Extron Dante-enabled products requires Dante Controller software. Dante Controller is used to easily assign outputs from a Dante-enabled device, such as an Extron DMP Plus Series processor, to inputs on a NetPA Ultra FX amplifier.

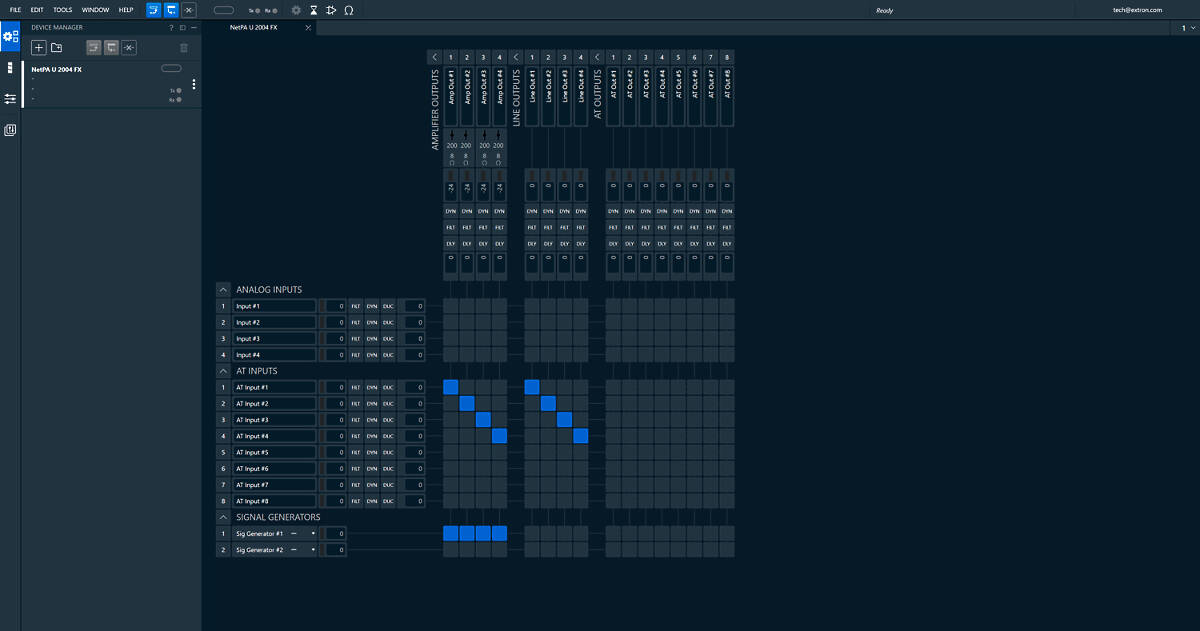

Mix Matrix with Audio DSP

A built in mix matrix allows any analog or Dante input to be routed to any amplifier output, Dante output, or analog line output. The Dante and analog line outputs are separate from the amplifier outputs for added flexibility. The mix matrix provides essential audio DSP functions such as gain adjustments, filters, dynamics, and delay.

Software Configurable Output Modes and Power Allocation

Each channel of the NetPA 2004 FX can be independently configured to drive an 8Ω, 4Ω, 70V, or 100V load, enabling this single power amplifier to support the requirements of an audio system with multiple types of speaker configurations.

The NetPA U 2004 FX expands its multizone functionality by allowing a single amplifier to be configured for multiple wattage outputs. A total of 400 watts per channel pair can be balanced between adjacent channels according to the power needs of each channel. Combined with its configurable output modes, a single NetPA U 2004 FX could accommodate a dual zone, high impedance system of ceiling speakers in addition to a single low impedance subwoofer.

InstaWake

The NetPA U 2004 FX includes an auto power-down feature that places the amplifier into standby after 25 minutes of inactivity. When in standby, the NetPA U 2004 FX draws minimal power. It quickly comes out of standby upon detection of signal in under 50 milliseconds, fast enough to ensure that audio is not cut off. When coming out of standby, the NetPA U 2004 FX draws minimal inrush current, creating no sudden demand on power systems. For applications where the amplifier is required to remain active at all times, a NetPA Ultra FX amplifier provides the ability to defeat auto-standby.

Control and Remote Monitoring

The NetPA U 2004 FX integrates with control systems via an IP network or RS-232 for control of amplifier parameters as well as monitoring of the amplifier's status. Two digital input ports and two digital output ports are provided, so that the NetPA U 2004 FX can be programmed to sense and then respond to external triggers such as preset recall.

Dual LAN ports can be configured to separate control and Dante traffic by port or merged onto one port for single cable operation on a converged network.

Internal Web Interface

The internal web interface is accessed over the network connection by a standard web browser. It is used to define and export event logs and configure hardware parameters, including time/date and RS-232 settings.

Analogue Line Inputs and Outputs

Line inputs allow for connection of legacy analogue equipment that is not equipped with Dante. The post DSP analogue line outputs allow for connection of additional amplifiers, simplifying connection to the source while maintaining consistent processing. These line outputs have processing separate from the amp outputs to account for unique delay and level requirements.

Enables Space-Saving Installations

The fan-cooled NetPA U 2004 FX doesn't require empty rack spaces for cooling, allowing it to be installed in less rack space compared to competitive amplifiers. The cumulative effect of hundreds of precise design choices allows many NetPA U 2004 FX units to be placed in an equipment rack without the need to waste rack space for ventilation above the amplifiers.

Designed by Extron

Every circuit in a NetPA Ultra FX power amplifier is designed by our team of dedicated power amplifier engineers, ensuring that every Extron amplifier meets our high standards of excellence. By designing everything in-house, Extron engineers can meticulously optimize every detail for maximum performance, reliability, power efficiency, and reduced heat.

High Efficiency

A NetPA Ultra FX amplifier uses less electricity to generate the same amount of power. This has the direct benefit of lower electricity costs and less power infrastructure required.

Rock-Solid Reliability

Product reliability is a high priority at Extron and we go to great lengths to engineer products with industry-leading low failure rates, driven by rigorous testing of everything we ship. From the elimination of short-lived electrolytic capacitors in the signal path, to PCB designs that exclude the use of failure-prone wire harnesses, to accelerated burn-in testing, the NetPA U 2004 FX is engineered by Extron for many years of service.

Extron NetPA U 2004 FX Key Features

Four 200 watt channels into 8Ω, 4Ω, 70V, or 100V - The NetPA U 2004 FX is designed for large, high-powered, multizone integration projects.
Software configurable power allocation to match system requirements - 400 total watts per channel pair can be balanced between adjacent channels to provide the right amount of power where it's needed
Selectable output mode per channel - Allows this single amplifier model to be used in multizone installations with unique configurations per channel
Receives audio from the Dante audio network or from Analogue line level inputs - Select a channel from any remote Dante-enabled device on the network, or an Analogue source, to be brought into the NetPA U 2004 FX for amplification.
Auto-standby with InstaWake that comes out of standby in under 50 ms - The NetPA U 2004 FX includes an auto-standby feature that automatically places the amplifier into standby after 25 minutes of inactivity, dramatically reducing power consumption. The NetPA U 2004 FX quickly returns to full power status in less than 50 ms upon signal detection, with minimal inrush current. Auto-standby can be disabled if required.
Onboard DSP with 12x16 mix matrix - Route any input to any output, with or without processing
Integrated test signal generator - Provided for troubleshooting and equalisation
Meets Ecofficient Level 2 - Includes an automatic standby mode that conserves the most energy possible while maintaining the function of key features, including DSP and external control.
Analogue line outputs add flexibility - The post DSP Analogue line outputs allow for connection of additional amplifiers, simplifying connection to the source while maintaining consistent processing.
8x8 Dante routing with Dante Domain Manager and AES67 support - Ensures wide compatibility with enterprise configurations and other network audio devices.
Configurable LAN ports - Dante and control traffic can be merged on one LAN port or assigned to separate LAN ports.
PoE enabled DSP, routing, and configuration - When PoE is applied to the LAN/AT 1 port, internal DSP, Dante routing, and Analogue line input & output signals continue to operate if the mains power is lost. Additionally, the NetPA U 2004 FX can be configured with just PoE, without mains power, prior to installation.
Software configurable HPF for 70V and 100V channel modes - The frequency and slope are configurable for the integrated high pass filter that prevents saturation of speaker transformer cores.
Accessible device logs via internal web page - Operating data is logged to a plain language CSV file, accessible by a web browser.
Rack-mountable 1U, full rack width enclosure - With the capability to deliver high performance in one rack space, the NetPA U 2004 FX reduces rack space requirements for many installations.

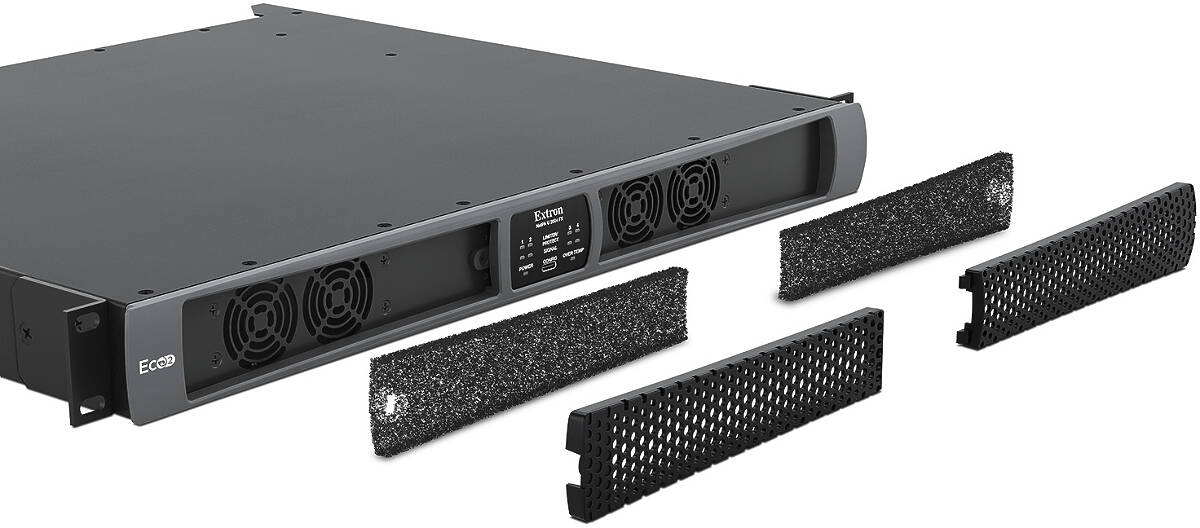

Front to back fan-cooled - Includes washable & replaceable foam air filters
Rear rack mounts included - The included rear rack mounts are easy to install and provide additional stability
Ultra low inrush current at power up - no need for power sequencing - Allows multiple NetPA Ultra FX series amplifiers to be powered on simultaneously without overloading power circuits. This eliminates the need for power sequencing.
Power factor correction - removes harmonic content on AC line - The NetPA U 2004 FX features power factor correction technology that smooths out the high peak currents of the amplifier's current draw, minimizing the presence of high frequency harmonics on the AC power line, preventing audible artefacts from being transmitted to other audio equipment in the system.
Remote standby port - Enables the NetPA U 2004 FX to be remotely powered down when not in use, reducing operating cost.
Automatic clip limiter - Detects actual onset of clipping. Gain is automatically reduced without audible artefacts to protect speakers from clipping distortion.
Multiple protection circuits - Activate during output shorts, thermal overload, or DC faults to prevent damage to the amplifier and speakers.
5 mm screw-lock captive screw speaker connectors - Enable simple, secure connections with 22 to 12 AWG speaker cables.
Front and rear-mounted signal and protection indication LEDs - Provide convenient indication of input signal presence and protection circuit activation from both sides of an equipment rack.
Front panel over-temperature LED - Provides visual indication that the amplifier's temperature has exceeded the optimal value, well in advance of the onset of thermal protection circuitry.
Internal Extron Everlast™ power supply - Provides worldwide power compatibility, with high-demonstrated reliability and low power consumption for reduced operating cost.
Extron Everlast Power Supply is covered by a 7-year parts and Labour warranty
