Extron IPL EXP PDU4H (60-1956-01)

Control System 4 way Power Expansion Interface

Provides remote power management for AV devices

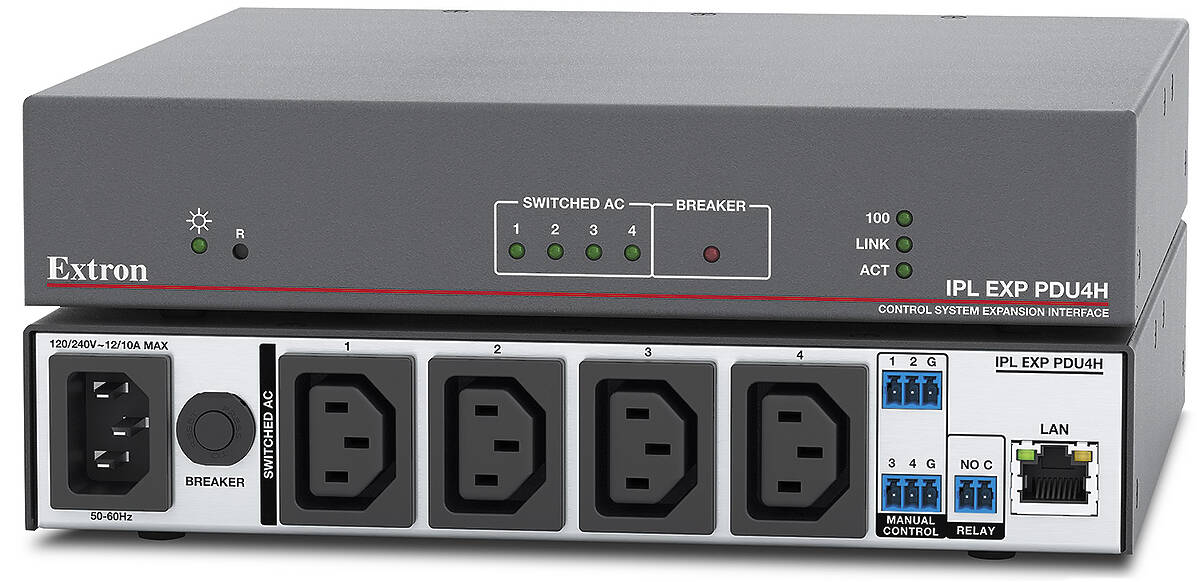

Extron IPL EXP PDU4H 60-1956-01 product image

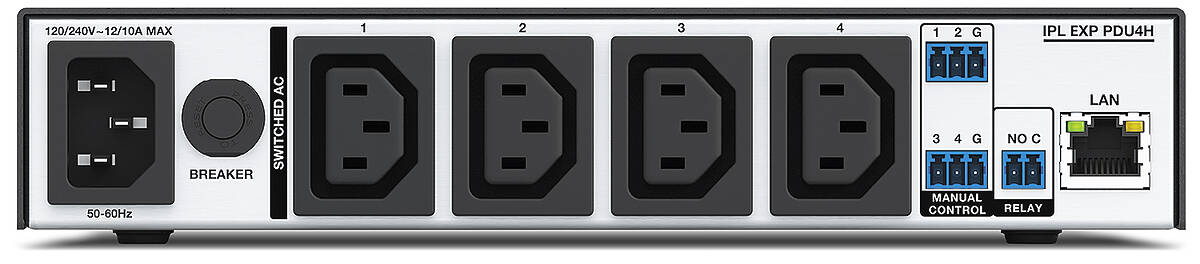

Extron IPL EXP PDU4H 60-1956-01 connectivity (terminals) product image

For pricing and configuration options please call or email us.

The Extron IPL EXP PDU4H is a control system power expansion interface that provides centralised power management for small to medium sized AV systems. It delivers the ability to control individual AC outputs remotely, and allows for aggregate current sensing. The IPL EXP PDU4H is Ethernet enabled and features four AC outputs, four override input ports, and a relay for additional system support. It is designed to be used with an IPCP Pro xi Series control processor for secure, encrypted power control of attached devices. It can also operate independently using a secure Extron API, enabling seamless integration for specialised applications. The IPL EXP PDU4H is housed in a compact 1U half rack enclosure that offers a broad variety of mounting options.

Extron IPL EXP PDU4H Key Features

Provides remote power management for AV devices - Allows for remote control of connected AV devices.
Four independent 100/240 VAC, 12/10A max, IEC female outlets - Provides Worldwide power compatibility.
Remote on/off control of individual AC power outlets
Aggregate current sensing - Allows for monitoring power consumption for reporting and troubleshooting purposes.
Four manual control ports - Provides compatibility with control systems via simple contact closure inputs.
Single 24V relay - Allows for current threshold alarmswhen tied to a control system.
Secure Platform Device - Secure, encrypted AV control interface for management from all Extron IPCP Pro xi Series control processors.
Independent operation using a secure Extron API - Allows for compatibility with control systems within a secure Ethernet environment.
Single 12A circuit breaker button - Provides over-current protection.
Multiple, Single Stage MOVs for surge protection - Provide up to 1,750 Joules of protection for attached devices.
Embedded default webpage - Allows for simple stand-alone control.
Power up sequencing prevents an in-rush power overload - In the event of power loss and restart, power outlet receptacles can be powered on sequentially with a user-configurable delay between each one preventing a power overload spike and a blown fuse or tripped circuit breaker from occurring.
Supports 802.1X Authentication - Provides support for IEEE 802.1X authentication standard for port-based Network Access Control allowing only authorised devices to connect securely to the enterprise network.
Supports secure industry standard communications protocols - All IP Link Pro expansion processors use industry standard communication protocols, including DHCP, DNS, HTTP, HTTPS, ICMP (ping), IEEE 802.1X, NTP, SFTP, SNMP, SSH, TCP/IP, UDP/IP.
Supports control system synchronisation - Synchronisation will allow users to retain and recover the state of their configured endpoints in case of network or power failure.

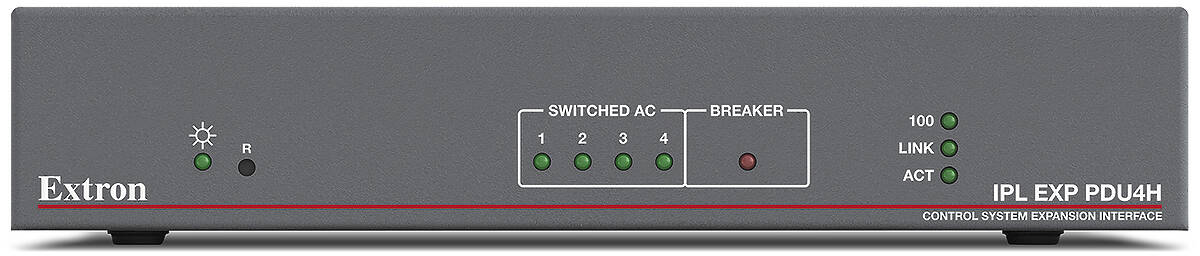

Front panel LED status indicators - Provides visual status for power, AC port status, circuit breaker status and LAN connection.
Internal Everlast power supply - Provides worldwide power compatibility, with high-demonstrated reliability while providing low power consumption for reduced operating cost.
1U, half rack width metal enclosure - Allows for the PDU to mount directly to Extron basic, universal rack shelf products, or behind a display.
Optional 1 ft. IEC male to Edison female Cable Adapter Kit
