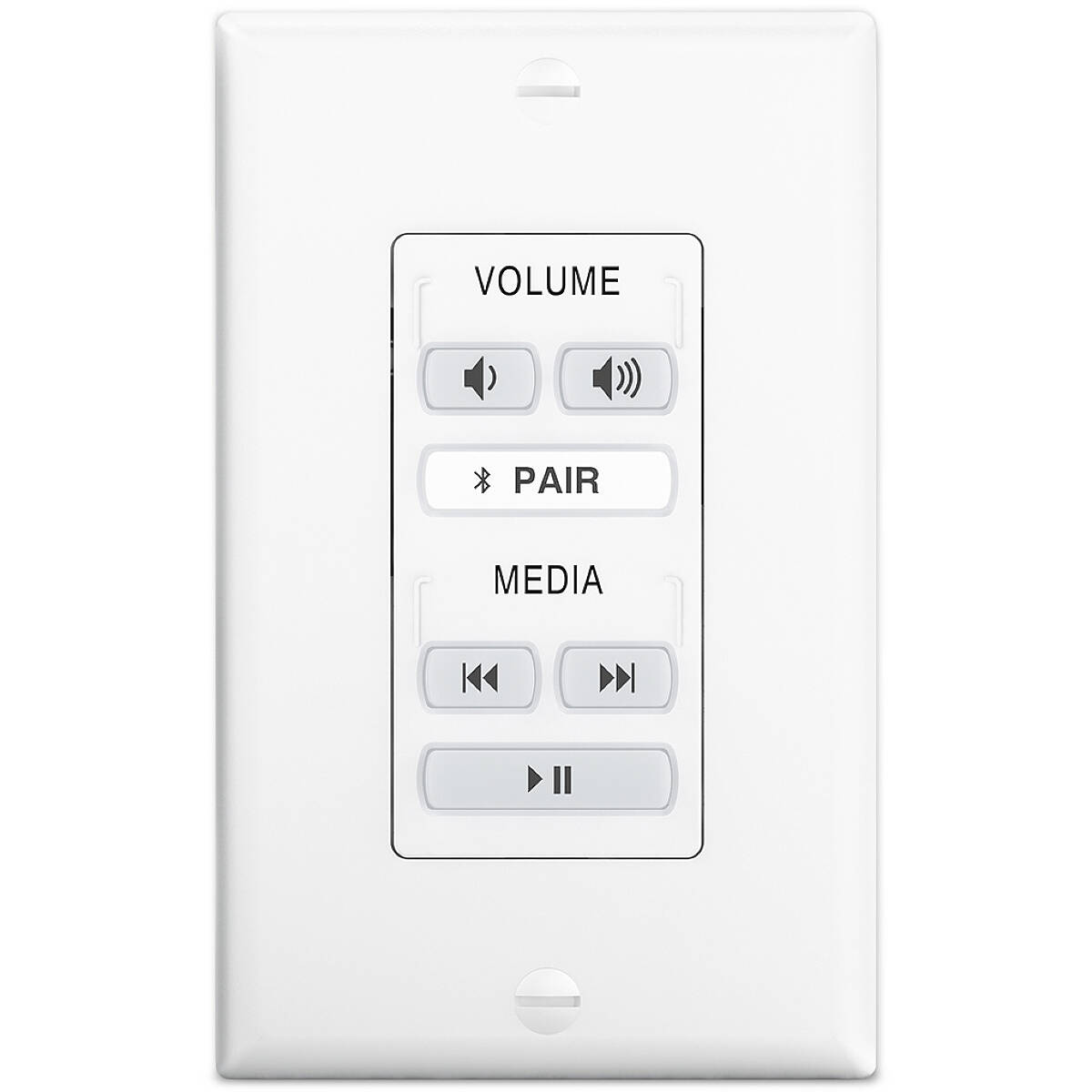

Extron BT 100 AT D (60-1691-01)
Bluetooth Dante Audio Interface - Decorator Style White and Black
Availability: In stock

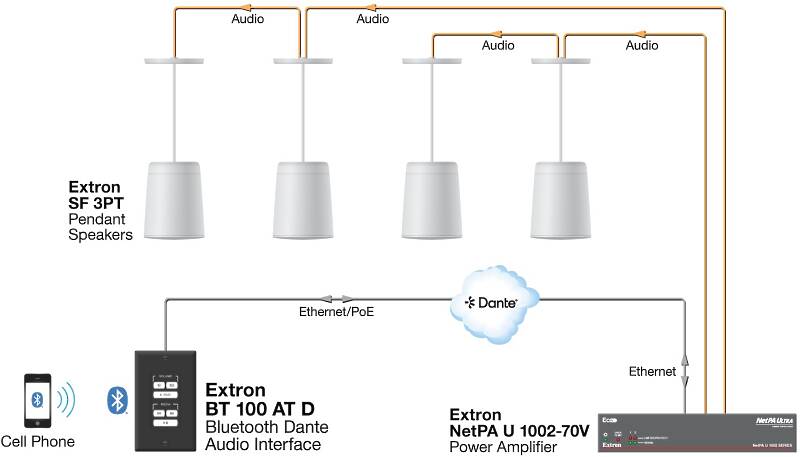

The Extron BT 100 AT D is a single-gang decorator-style Bluetooth Dante Audio Interface for integrating Bluetooth devices onto a Dante-enabled audio system. This easy-to-use wall panel allows a Bluetooth-enabled mobile device to serve as the communication interface in a conferencing system while also supporting stereo audio playback from a range of compatible Bluetooth sources. Control of pairing, volume, and playback media is possible from the front panel, RS-232, or the Dante network connection. The BT 100 AT D interfaces with any Dante‑enabled audio processor over a standard local area network, such as an Extron DMP Plus Series AT Model. It can be powered through PoE, allowing a single network connection from a central equipment rack for bidirectional audio, control, and power.
Bluetooth
With the BT 100 AT D, any Bluetooth equipped mobile device can be used for audio conferencing in the system. This can be useful when transferring from an existing cell phone call to the conference room or when it's more convenient to initiate the conference from a cell phone's contact list. The Bluetooth connection can also be used to play back program material from a cell phone or tablet in the room's speaker system.
Dante
With Dante audio networking from Audinate, AV system designers now have an audio network that excels in five important objectives: fidelity, stability, flexibility, ease of implementation, and ease of use. Dante audio networking provides digital audio distribution over local and wide area networking, using standard network hardware or by connecting into a standard network infrastructure. This provides many advantages, including audio system scalability, easier installation, and simplified wiring.
Local or Remote Control
Full control of BT 100 AT D functions is possible via LAN or RS-232 from a connected control system, including device pairing, track skip, and device volume. All functions are additionally controllable from the backlit buttons on the front panel.
Extron BT 100 AT D Key Features
- Full duplex Bluetooth to Dante connectivity for call bridging - Inserts Bluetooth audio onto a Dante network and extracts audio from a Dante network to a Bluetooth device.
- Stereo program audio playback from a Bluetooth device - Supports BYOD applications for audio playback from a Bluetooth device into Dante-enabled systems.

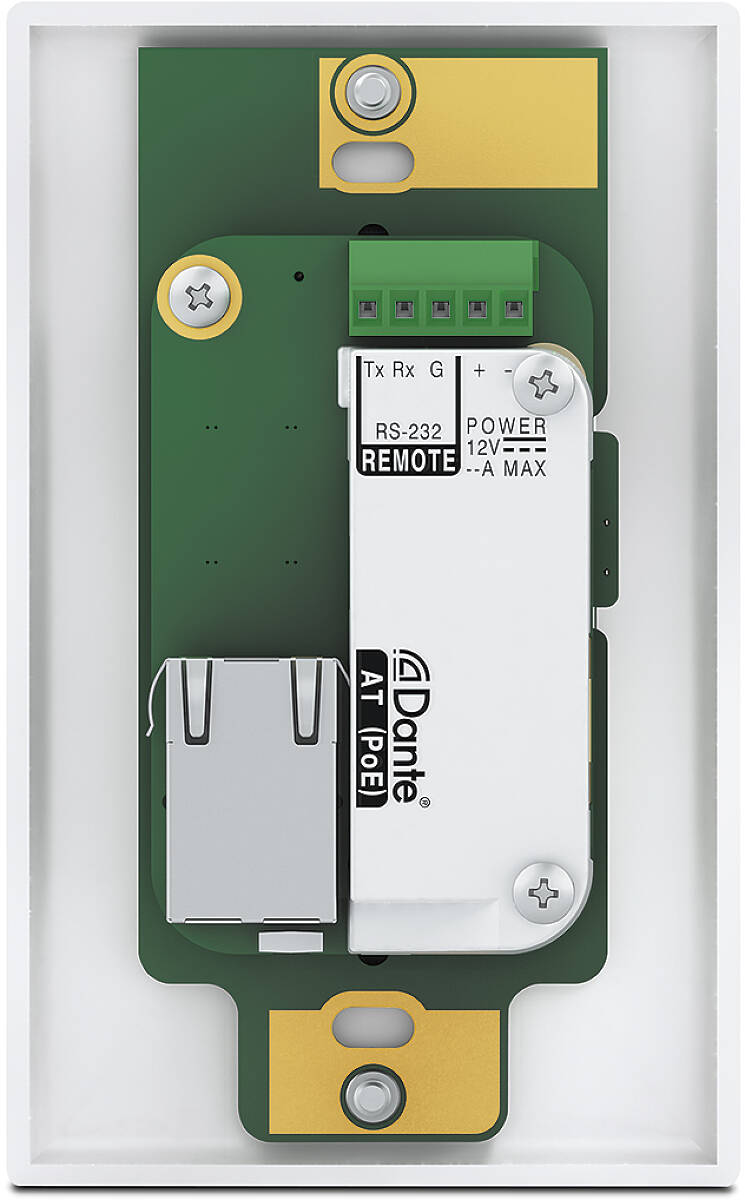

- PoE powered - Power, Dante network audio, and control over a single cable for streamlined integrations. An optional external power supply is available.
- Remotely controllable via RS-232 or the Dante network - Controlled with DSP Configurator Software or via SIS from a DMP Plus Series processor on the Dante network or a control processor
- Network monitoring and control - Via an IPCP Pro xi Series control processors connected to a Dante network.
- Controllable and configurable via USB-C and RS-232 - Controlled and configured via SIS commands using DataViewer software.
- Backlit buttons for visual status indication - For systems without a control interface, all functions can be operated from the front panel.
- Customisable Bluetooth device name - Facilitates pairing discovery and device connection in multi-device installations.
- Playback control buttons for local operation - Repeat/Previous Track, Next Track, and Play/Pause control from the front panel without the need to access the Bluetooth device directly.
- Front panel volume adjustment buttons - Remotely increase or decrease the output volume of the connected Bluetooth device.
- Front panel security lockout - The BT 100 AT D offers various levels of front panel security lockout to prevent unauthorised use in permanent installations.
- Decorator-style wall plate blends well in any architectural environment
- Supports Caller ID - Allows the display of caller ID information on a touch panel.
- Supports manual and automatic reconnection of paired Bluetooth devices - Flexible operating modes support common workflow requirements.
- Front Panel Security Lockout - Prevents program interruptions while connected to a device.
- Disconnect via the Front Panel or Remote Control

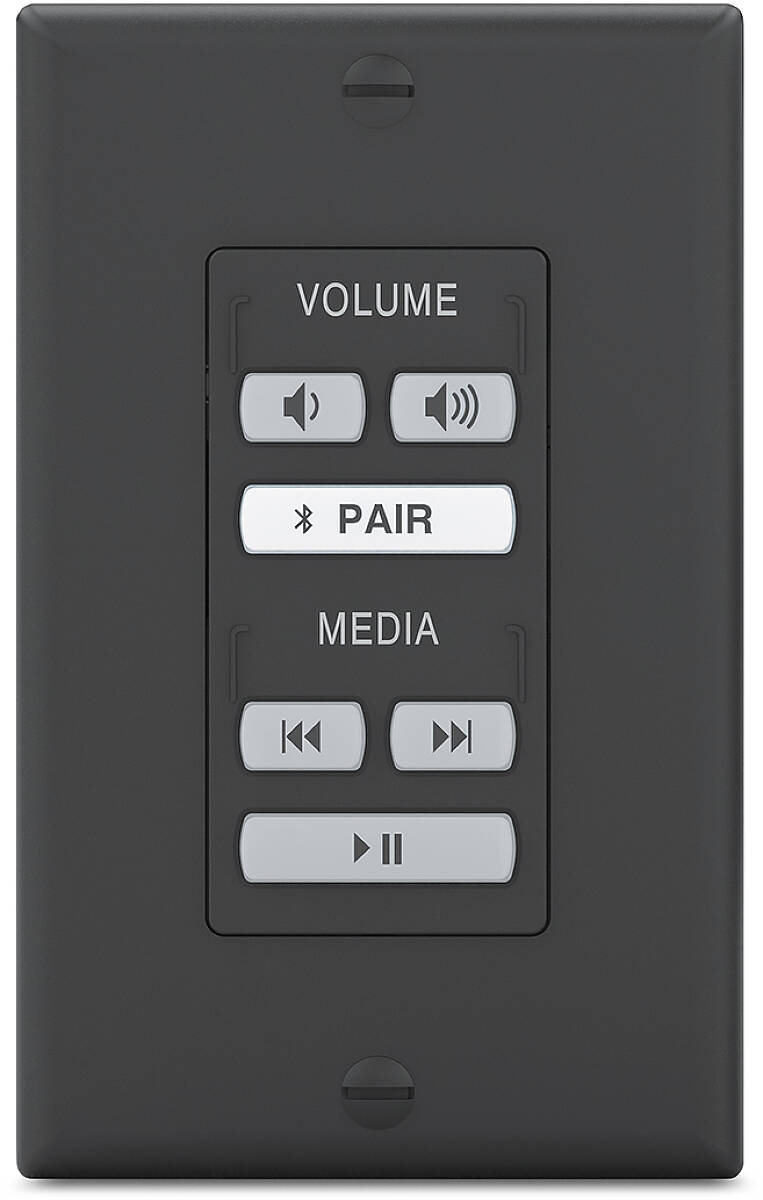

- Includes black and white decorator-style wall plates and mud ring
