Extron HAI 100 4K Plus (60-1682-01)

4K/60 HDMI Sterero or S/PDIF Audio Embedder

Embeds two-channel Analogue or S/PDIF digital audio onto an HDMI signal

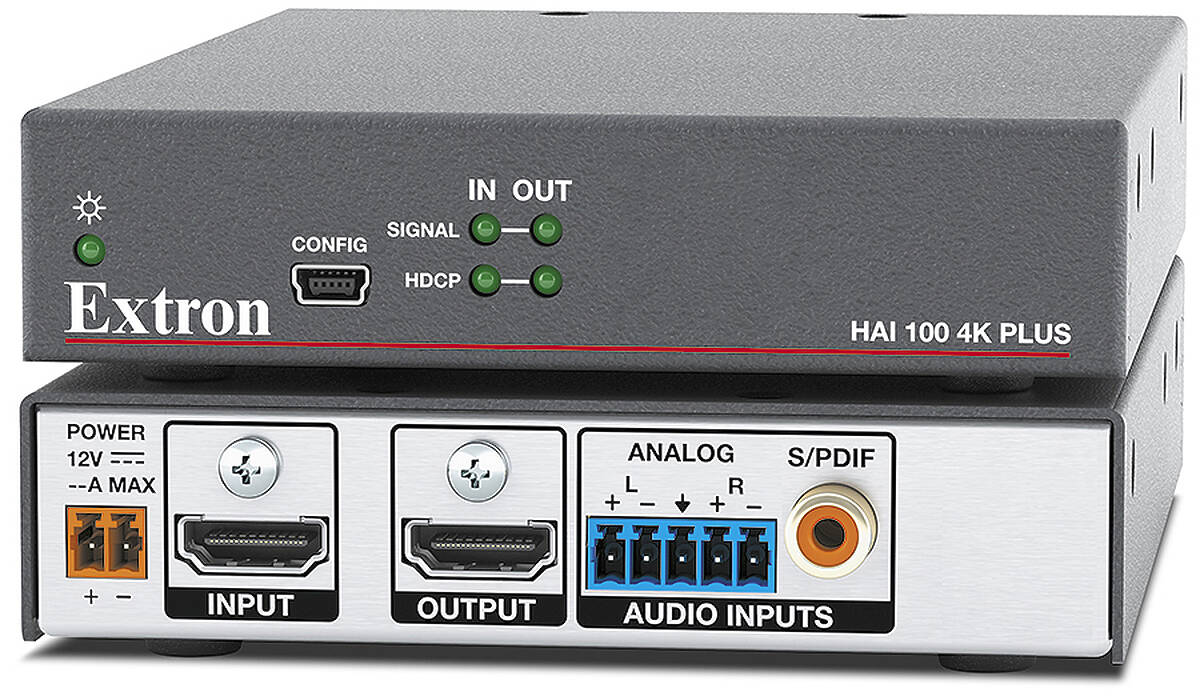

Extron HAI 100 4K Plus 60-1682-01 product image

£674 (£808.80 inc. VAT)
Availability: In stock

The Extron HAI 100 4K Plus is a high performance 4K/60 audio embedder that embeds either two-channel analogue audio, or S/PDIF digital audio in two-channel or multi-channel formats onto the HDMI output signal. The HAI 100 4K Plus includes an HDMI input, analogue stereo audio, and S/PDIF audio inputs that support two-channel or Dolby® and DTS® multi-channel formats, as well as an HDMI output. It is HDCP 2.3 compliant, supporting data rates up to 18 Gbps, HDR, 12-bit Deep Color, 3D, lossless audio formats, and CEC pass-through. The HAI 100 4K Plus includes integrator-friendly features such as adjustable gain control for the analogue audio input, EDID Minder®, HDMI input cable equalisation, and comprehensive LED status display.

Extron HAI 100 4K Plus Key Features

Embeds two-channel Analogue or S/PDIF digital audio onto an HDMI signal - The HAI 100 4K Plus offers the flexibility to embed separate Analogue or digital audio signals onto an HDMI signal.
Supports two-channel stereo Analogue audio, or two-channel or multi-channel S/PDIF digital audio - The HAI 100 4K Plus supports incoming Analogue stereo audio, two-channel LPCM, or Dolby® or DTS® multi-channel audio.
Supports 4K/60 @ 4:4:4 - 4K (4096x2160) @ 60 Hz or UHD (3840 × 2160) @ 60 Hz with 4:4:4 chroma sampling
Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Colour up to 12‑bit, 3D, HD lossless audio formats, and CEC pass-through.
HDCP 2.3 compliant with user-selectable authorisation - Ensures display of content-protected media and interoperability with other HDCP-compliant devices. Allows individual inputs to appear HDCP compliant or non-HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP-compliant device. Protected material is not passed in non-HDCP mode.
EDID Minder® automatically manages EDID communication between connected devices - EDID Minder ensures that the source powers up properly and reliably outputs content for display.
Selectable output format - Allows the output video format and Colour space to be manually configured.
HDMI audio pass-through - The HAI 100 4K Plus provides audio signal pass-through for all embedded audio formats on the HDMI output. The embedded audio output can also be muted.
Automatic HDMI input cable equalisation - Actively conditions incoming HDMI signals to compensate for signal loss when using long cables, low quality cables, or source devices with poor signal output.
Comprehensive, real-time status LED indicators for troubleshooting and monitoring - Front panel LEDs verify the presence of HDMI input and output signals, and HDCP authentication.
Front panel USB configuration port
Easy setup and commissioning with Extron's PCS - Product Configuration Software - Conveniently configure multiple products using a single software application.
Rack-mountable 1" (2.5 cm) high, quarter rack width metal enclosure
Includes LockIt® HDMI cable lacing brackets
External Extron Everlast™ power supply included, replacement part #70-1175-01 - Provides worldwide power compatibility with high‑demonstrated reliability and low power consumption. This power supply is compatible with the ZipClip 50 Mounting Kit.
Extron Everlast Power Supply is covered by a 7‑year parts and Labour warranty
TAA Compliant version available - Please inform your local Extron representative if your order requires compliance with TAA regulations.
