Extron AXI 44 AT (60-1628-11)

4:4 Dante Audio Interface

4 × Mic/Line inputs; 4 × Line Level, 1 × RJ-45 Dante outputs

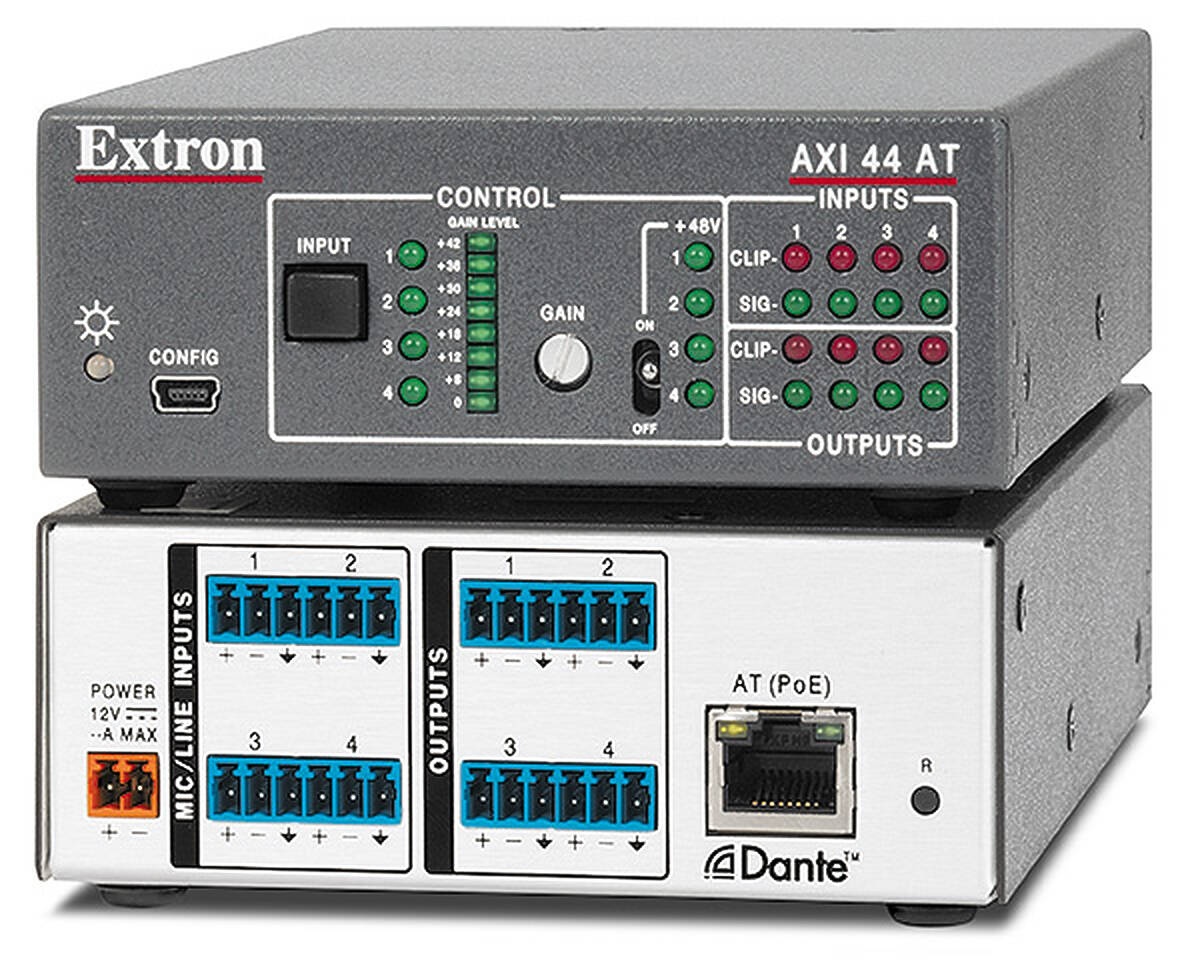

Extron AXI 44 AT 60-1628-11 product image

For pricing and configuration options please call or email us.

The Extron AXI 44 AT is a quarter rack width audio interface for integrating four mic/line sources onto a Dante®-enabled audio system. It features four mic or line inputs on 3.5 mm captive screw connectors, with switchable 48 volt phantom power. Input select, gain, and phantom power settings are controllable from the front panel, via DSP Configurator Software, or by SIS commands via USB. The AXI 44 AT also features four line level outputs for routing four Dante channels from the network to the audio system. The AXI 44 AT interfaces with any Dante-equipped audio processor, such as an Extron DMP 128 Plus AT, over a standard local area network, and can be powered via PoE. This allows a single network cable connection for bidirectional audio and power from a central equipment rack.

Easily Provide Local or Remote Connectivity into Audio Systems

The AXI 44 AT accepts four Analogue mic/line sources, and digitizes them at 24-bit for output via Dante. It is connected into a Dante network over Ethernet using standard IP networking protocols. This avoids the effort and expense of pulling long Analogue cables back to the rack. With its small, quarter rack form factor, the AXI 44 AT can be easily mounted under a desk, in a lectern, or in millwork, as well as in a rack.

For additional integration convenience, AXI 44 AT interfaces can be remotely powered via Power over Ethernet - PoE, using Extron XTP PI 100 or XTP PI 400 power injectors, network switches equipped with PoE, or midspan PoE injectors.

The AXI 44 AT can accept any four audio channels from the Dante network and deliver them through its four line outputs. Four channels of high quality digital audio can be routed from local or remote systems via Dante, and converted to line level Analogue audio.

Dante Audio Networking

Dante enables audio system scalability over a local area network using standard Internet protocols. The family of Dante-enabled products from Extron work together as part of a complete networked audio system solution and integrate with other Dante-enabled products to create efficient, scalable system designs. They accommodate a wide range of audio routing needs in a variety of applications.

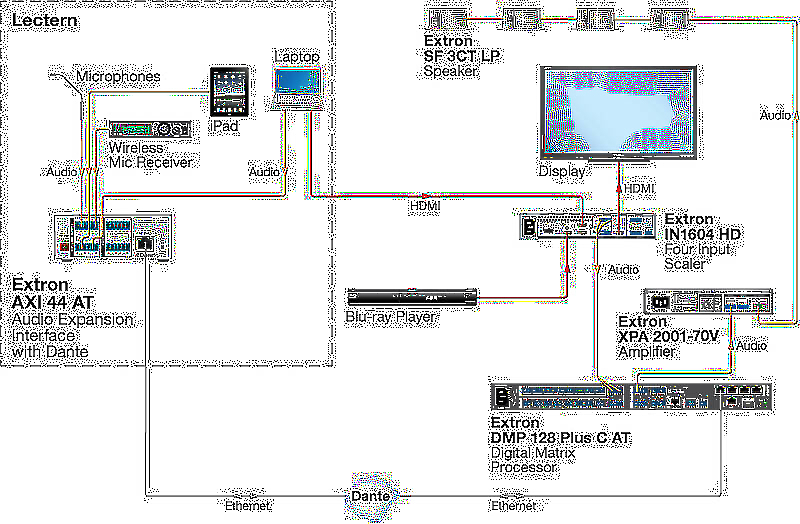

Setting up a network of Extron Dante-enabled products, including the AXI 44 AT, requires Dante Controller software. Dante Controller is used to easily assign an output from an AXI 44 AT to an input on a Dante-equipped device, such as the Extron DMP 128 Plus AT. Similarly, an output from a Dante-equipped device can be assigned to appear at one of the line level outputs on an AXI 44 AT.

Features

Extron AXI 44 AT Key Features

Four mic/line inputs insert audio onto a Dante® network - Each input accepts a balanced or unbalanced mic/line level signal on a captive screw connector and includes selectable 48 volt phantom power.
Four line level outputs extract audio from a Dante network - Four channels of high quality digital audio can be routed from up to two local or remote devices via Dante and converted to line level Analogue audio, provided as balanced or unbalanced signals on a captive screw connector.
Dante audio networking provides a wide range of expansion options - Dante-equipped audio products, including the AXI 44 AT, provide scalability for creating larger audio systems over a local area network using standard Internet protocols.
Dante Domain Manager and AES67 Support
Studio grade 24-bit analog-to-digital and digital-to-Analogue converters with selectable sampling rates up to 96 kHz - Professional converters fully preserve the integrity of the original audio signal, with selectable sampling rates via Dante Controller.
Input select, gain, and phantom power controls located on front panel and configurable via a Dante network - Settings can be modified from the front panel, SIS commands via USB, or through a DMP Plus Series DSP or IPCP Pro xi Series control processor over a Dante network
Power over Ethernet allows the AXI 44 AT to receive power over a single Ethernet cable, eliminating the need for a local power supply
1U, quarter rack width metal enclosure - Compact, durable enclosure can be discreetly installed under a desk, in a lectern, in millwork, or in an AV equipment rack.
Highly reliable, energy-efficient external universal power supply optional, part #70-1174-01 - Provides worldwide power compatibility with high reliability and low power consumption for reduced operating costs. Includes a ZipClip 100 Mounting Kit to securely mount an Extron power supply onto most surfaces, including tables and lecterns.
TAA Compliant version available - Please inform your local Extron representative if your order requires compliance with TAA regulations.
