Extron UCS TR 910 Kit (42-375-01)

1:1 Twisted Pair USB-C 5Gbps Extender Kit

1 × USB-C Input; 1 × USB-C Output; Max 5Gbps over 100m with Cat6A cable

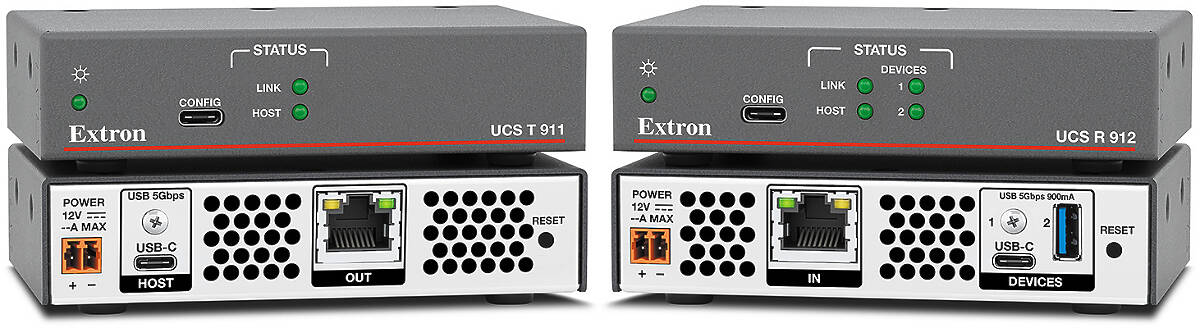

Extron UCS TR 910 Kit 42-375-01 product image

£1550 (£1860.00 inc. VAT)
Availability: In stock

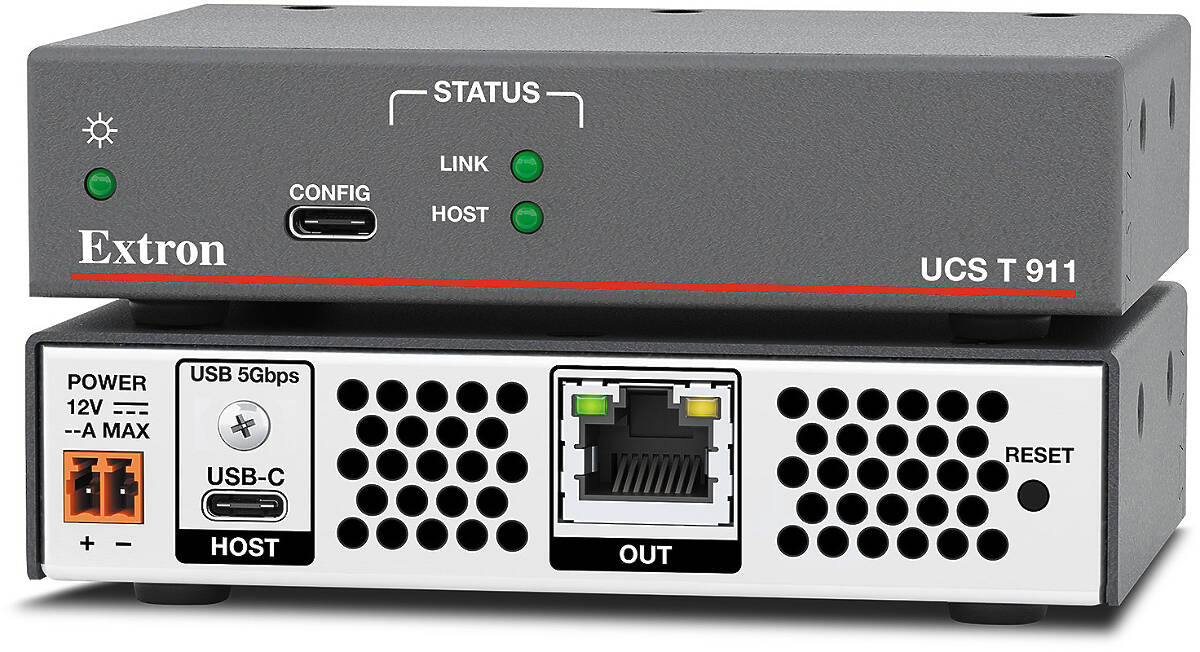

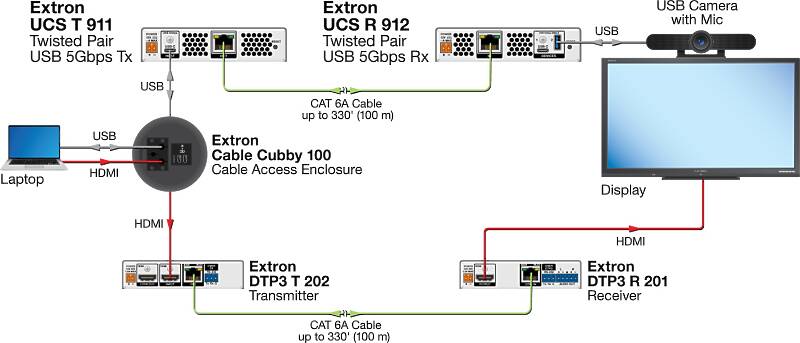

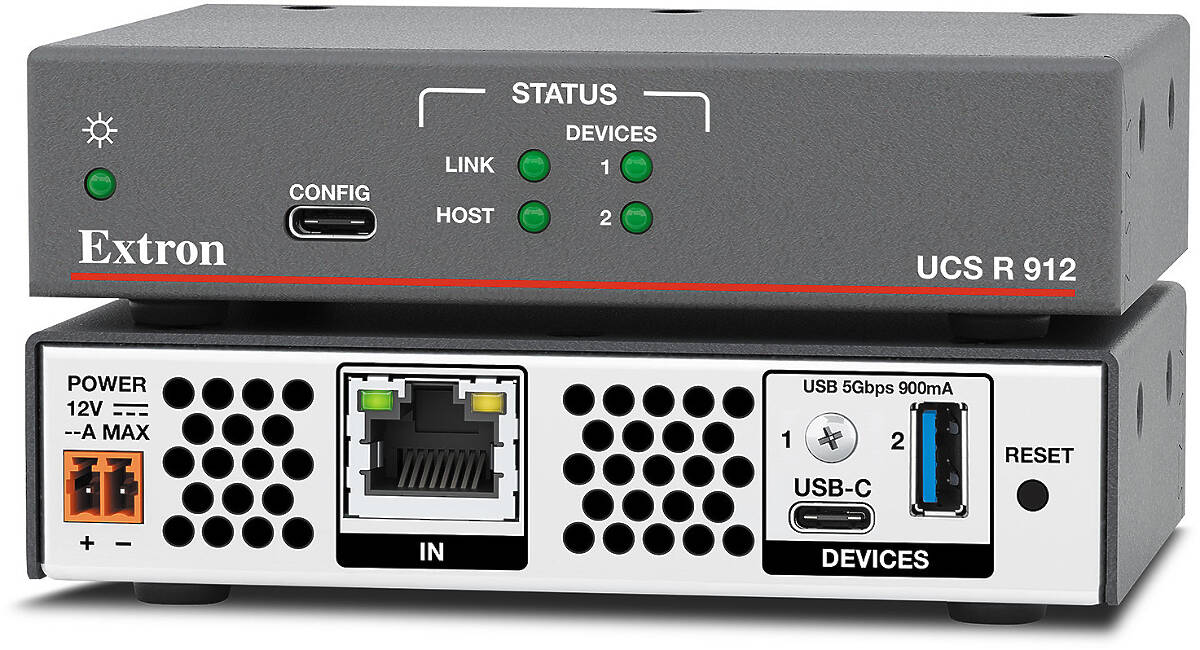

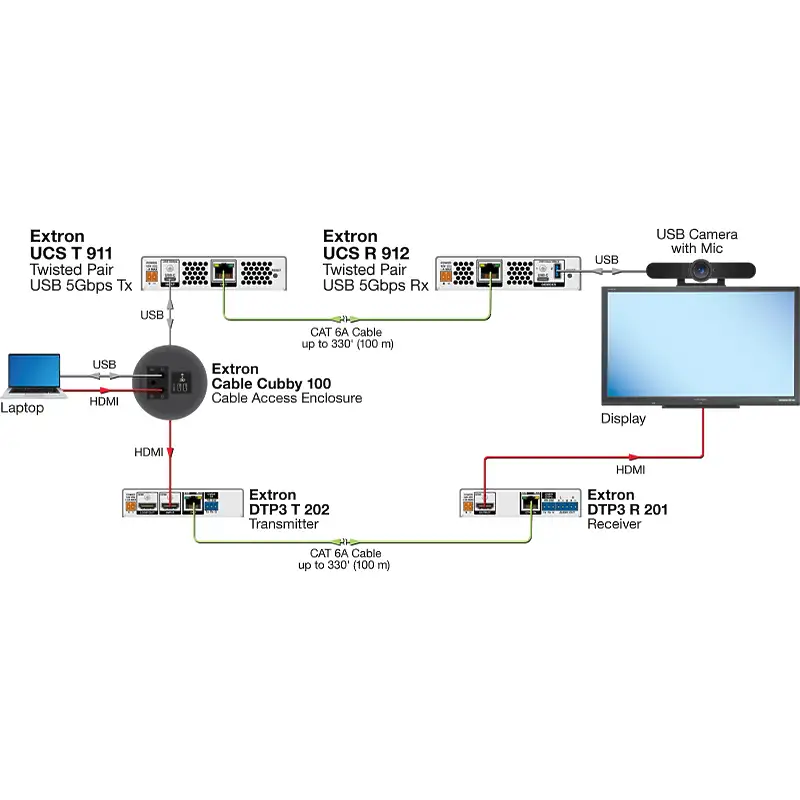

The UCS 910 Series of Twisted Pair USB 5Gbps Extenders extend USB data signals from peripheral devices to a host computer over twisted pair cable. Compatible with USB 3, including previous standards, they support data rates up to USB 5Gbps up to 330 ft (100 m) over a CAT 6A cable. The UCS TR 910 Kit includes a transmitter, receiver with power supply, and ZipClip® brackets for secure installation in furniture, behind a display, or under a desk. The transmitter features a USB‑C host connection and can be powered from the receiver, or locally with an optional power supply. The receiver features a two-port USB hub with USB-C and USB-A ports for connecting remote peripherals. The UCS 910 Series easily extends USB cameras, videobars, conference systems, and peripherals such as mass storage devices in Pro AV environments.

It also supports annotation tools, interactive displays, headsets, speakers, and a wide range of other USB devices. With data rates up to USB 5 Gbps and support for USB 3 and earlier standards, the UCS 910 Series is ideal for training rooms, courtrooms, conference spaces, classrooms, and lecture halls where high-performance USB extension is required.

Extron UCS TR 910 Kit Key Features

Extends USB peripherals up to 330 feet (100 meters) over CAT 6A cable - Fully supports data rates up to USB 5Gbps when used with CAT 6A shielded twisted pair cable. Shielded twisted pair cabling with solid centre conductor sizes of 22 AWG or better is recommended for optimal performance.
USB 5Gbps compatible - Supports data rates up to USB 5Gbps for devices such as USB cameras and other peripherals as well as older USB 2 and USB 1 devices.
Features USB-C connections for host and peripheral devices - Uses common USB-C connections for both laptop and device connections.
Transmitter can be powered by receiver or optional power supply - Transmitter power supply (part #70-1175-01) not required for faster installation with fewer items to install.
Receiver features USB-C and USB-A peripheral ports providing 5 Volts, 900 mA at each port - Enables simultaneous connection to multiple peripheral devices such as USB cameras, Extron Annotator, mass storage devices, keyboards, and mice.
Patented ZipClip® mounting kits included for easy installation - Enables quick and secure mounting to rack rails, tables, shelves, and lecterns.
Real-time status LED indicators for troubleshooting and monitoring - Provides visual confirmation of port activity between an active host and each connected peripheral device.
Includes LockIt® Plus cable lacing brackets - Securely fastens HDMI or USB-C® cables to a device, eliminating risk of disconnection.
1” (2.5 cm) high, quarter rack width metal enclosures - Compact, low profile enclosures allow discreet installation within furniture or behind a flat panel display.
External Extron Everlast® receiver power supply included - Provides worldwide power compatibility with high-demonstrated reliability and low power consumption.
Extron Everlast Power Supplies are covered by a 7-year parts and Labour warranty
Extron recommends the USBC Pro Series cable for use with this product.
Extron recommends the USBC cable for video and data applications under 6 feet (1.8 m).
