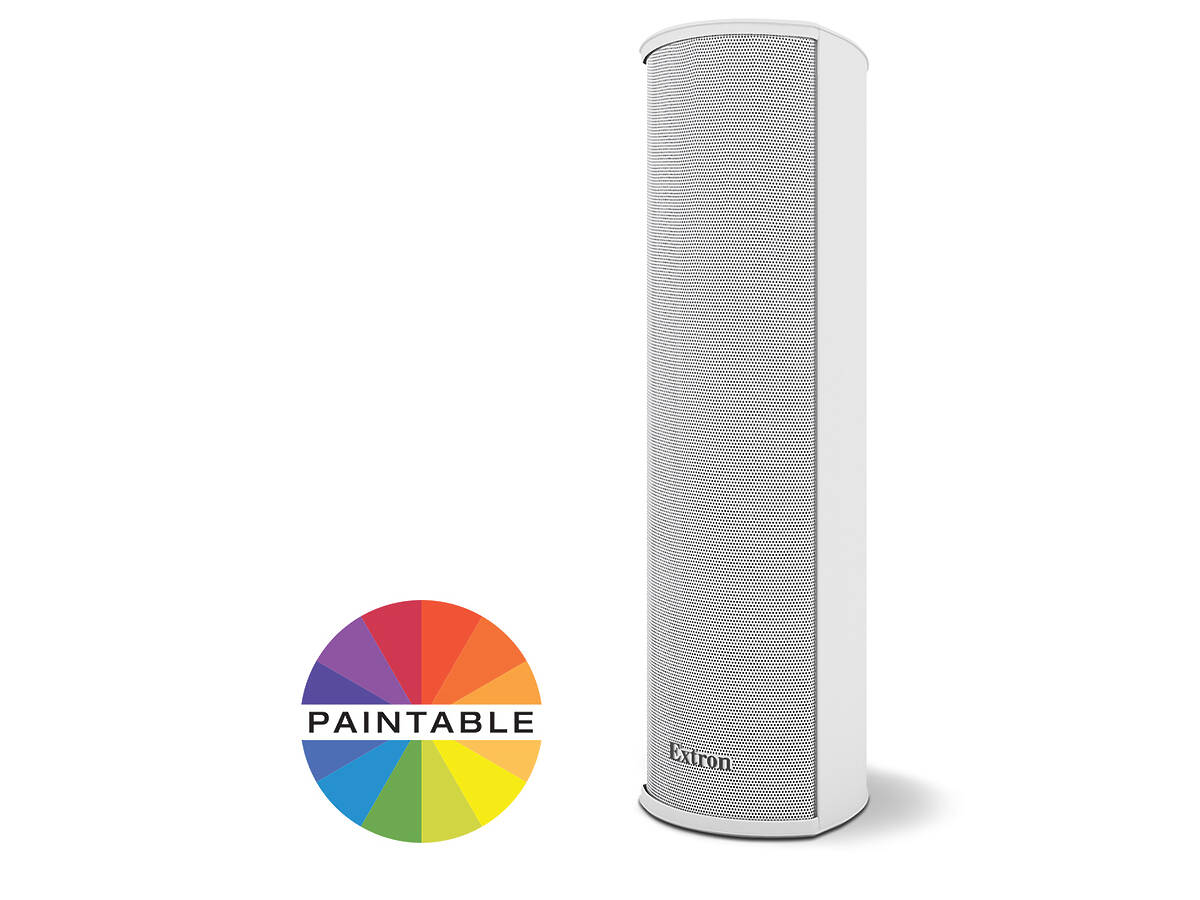

Extron CA 43T PT (42-359-03)
1 × 17" Four Driver Column Array Speaker
Pan & Tilt Mount finished in White
Availability: In stock
The CA 43T is a column array speaker designed to combine excellent speech intelligibility, a contemporary aesthetic, and integration‑friendly mounting options. Engineered to be used as a fill speaker with the CA 163 or stand-alone, the CA 43T features four 3" (76.2 mm) drivers with the ability to handle up to 120 watts of continuous program. Two mounting systems are available to accommodate different acoustic requirements. The CA 43T PT includes a pan and tilt wall mount with up to 15deg. of tilt and up to 148deg. of pan, while the CA 43T LP includes a low‑profile wall mount with up to 5deg. of tilt. Available in black or white, the CA 43T can operate in low‑impedance direct as well 70 volt and 100 volt modes. The CA 43T places its power tap selector conveniently on the bottom of the speaker.
Integration-Friendly Mounting Systems
The SMK CA Series wall mounting systems are designed for one person to securely mount the CA Series Column Array Speaker to an appropriately constructed wall. A wall-mounting template is included that makes it quick and easy to accurately position the speaker mounts. Once mounted, the T-slot on the rear of the speaker facilitates height adjustment by sliding the speaker vertically on the wall mount.
Two models are available to accommodate different mounting configurations. The CA 43T PT includes the pan and tilt SMK PT CA that provides up to 148deg. pan and 15deg. tilt. The CA 43T LP includes the two-piece, low-profile SMK LP CA that provides up to 5deg. tilt. The SMK CA Series is paintable and available in black or white.
CA Series Room Coverage Calculator
With this free Extron tool, you can input your room parameters to determine speaker suitability and ideal placement.
Complete CA Series Systems
In spaces where side or rear fill speakers are necessary to complement CA 163 column array speakers on the front wall, CA 43T speakers can provide even coverage, consistent tonality, and a matching aesthetic.
Extron CA 43T PT Key Features
- Vertical and horizontal dispersion optimised for small and medium spaces
- Nominal horizontal coverage at 4 meters:
- 180° at 1 kHz
- Nominal vertical coverage at 4 meters:
- 134° at 500 Hz
- 72° at 1 kHz
- 35° at 2 kHz
- 19° at 4 kHz
- Extron recommends utilising the CA 83T GLL file in your acoustic simulation program to determine suitability.
- 60 watts continuous pink noise
- 120 watts continuous program
- Frequency range: 125 Hz to 17 kHz
- Designed for quick and easy one person installation: Use the Included mounting template for Pan and Tilt and Low-Profile mounting systems.
- All CA Series models are voiced for consistency: Easily design systems using any combination of CA 163, CA 83T, and CA 43T.
- Convenient power tap selector on the bottom
- 8 ohm direct
- 70 volt: 32, 16, 8, and 4 watt selectable
- 100 volt: 32, 16, and 8 watt selectable
- Mounting system included: Pan and Tilt model, with up to 148° pan and 15° tilt
- EASE compatible GLL speaker data files available for download: Accurately simulate the CA 43T using EASE or EASE Focus.
- CA 43T GLL file
- Four matched 3" (76 mm) full range drivers
- IP54 rated for protection against dust and water spray
- Durable, powder-coated aluminium enclosure
- Paintable enclosure, available in black or white |
- Black: RAL 9011 (chassis), RAL 9017 (endcaps and grille)
- White: RAL 9003 (chassis, endcaps and grille)
- Integrated secondary tie-off point
- Enclosure Dimensions: 16.9" H × 5.0" D × 4.5" W / 43.0 cm × 12.7 cm × 11.4 cm
- Designed to meet key regulatory requirements: Designed to meet UL1480A and CSA C22.2 No. 205
- Designed to meet IEC/EN 6238-1
- Complies with CE, ICES, RoHS, WEEE
- 5 year parts and Labour warranty
